The 12VHPWR connector packs up to 600 watts through a plug barely wider than your thumb, and that density is exactly why people get nervous about seating it. You’ve probably seen the melted-connector photos from early RTX 4090 builds. Most of those failures traced back to one boring root cause: a plug that wasn’t pushed all the way home. Connecting the cable safely isn’t hard, but it’s unforgiving of shortcuts, so this walkthrough covers the full process from the power supply side to the graphics card, plus the checks that keep the pins cool under a heavy gaming load.
If you’re building around a modern GPU, the connection quality starts at your power supply. A native ATX 3.1 unit with a factory 12V-2×6 cable removes a lot of the risk that adapters introduce, which is why a lot of the guidance below leans on using the cable that shipped with your PSU. Picking the right unit for your wattage matters too; our roundups of the best 1000W power supply and the best modular PSU for a gaming PC in 2026 both cover ATX 3.1 models with native 16-pin cables, and if you’re on a tighter power budget the best 850-watt power supply guide has smaller units that still ship with the correct connector. Get the foundation right and the actual plugging-in becomes almost boring.
What you’ll need
You don’t need a workbench full of gear here. The core requirement is a power supply that ships with a native 12V-2×6 (12VHPWR) cable, your graphics card, and good lighting so you can actually see the pins seat. A small flashlight or your phone’s torch helps you confirm the connector face is flush. Keep an anti-static wrist strap on if you have one, work on a hard surface instead of carpet, and give yourself enough case clearance that the cable isn’t fighting the side panel. That last point matters more than people expect, because side-panel pressure is a leading cause of half-seated plugs.
For the power supply itself, an ATX 3.1 SFX or ATX unit with a hardwired native cable is the safest starting point. The Corsair SF750 (2024) is a solid example of what to look for: it’s a fully modular SFX unit rated 80 Plus Platinum, it’s ATX 3.1 compliant and PCIe 5.1 ready, and it lists at $159.99 with a 4.1 owner rating. The bracket is included in the box, which makes it easy to drop into standard ATX cases as well as small-form-factor builds. Specs like these are what let you run a native 16-pin cable straight to the card instead of daisy-chaining three separate 8-pin adapters.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.
The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.

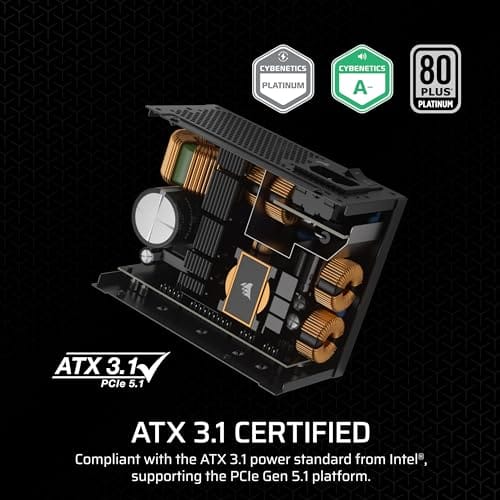

The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.

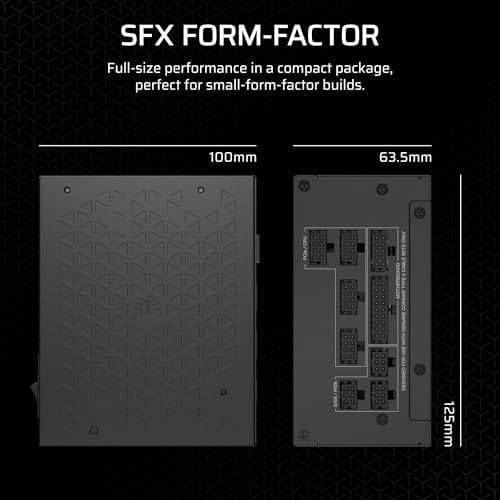

Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
Step 1: Power down and use the native cable
Shut the system off at the wall and flip the PSU’s rear switch to the off position. This isn’t optional. Hot-plugging a 600W-capable connector is asking for an arc across the sense pins, so kill the power first, then wait a few seconds for the capacitors to drain. While you’re there, dig out the cable that shipped with your power supply and set any included adapter aside. Native cables run the full 12-pin path directly from the PSU’s connector to the card, which keeps resistance low and heat down.
If your PSU is older ATX 3.0 rather than 3.1, the native cable is still fine; the 12V-2×6 revision mostly shortened the sense pins to reduce the melting risk, and a genuine first-party cable already accounts for that. What you want to avoid is a random third-party 16-pin cable that doesn’t match your specific power supply’s pinout. Mismatched pinouts have caused real damage. When in doubt, use the exact cable your unit came in the box with.
It’s worth labeling your cables during this step if you’re reusing a modular PSU from a previous build. The PSU-side connectors on modular units are not standardized between brands, and plugging a Corsair-keyed cable into a different vendor’s socket can send 12 volts down the wrong pin. That mistake is one of the few ways to kill a card instantly. Both ends of the native cable should trace back to the same power supply it shipped with, no exceptions.
Step 2: Inspect both connectors before mating them
Give the connector on the graphics card and the plug on the cable a close look under your light. You’re checking for bent pins, debris, or any pin sitting higher or lower than its neighbors. The 16-pin layout is twelve power conductors up top and four smaller sense pins along the bottom edge, and those sense pins are the ones that tell the card whether the connector is fully seated. A speck of dust or a slightly proud pin can throw off contact, so a quick blow of canned air doesn’t hurt.
Line up the connector’s orientation now, before you commit. The plug is keyed, meaning it only fits one way, but the fit is snug and it’s easy to start it crooked if you rush. Hold the card steady with one hand so you’re not flexing the PCIe slot while you work. That’s a small habit that saves cracked solder joints down the line.
Step 3: Seat the connector fully until it clicks
This is the step that prevents almost every horror story. Push the plug straight into the card’s socket with firm, even pressure until you feel and hear a positive click from the retention latch. Don’t come at it from an angle. The click means the latch has engaged and the connector is flush against the card. If you don’t get a clean click, pull it back out and start over rather than forcing it.
Once it clicks, look at the seam where the plug meets the card. There should be no visible gap and no exposed metal on the terminals. A common failure mode is a plug that latches on one side while the other side sits a millimeter proud, which concentrates current on fewer pins and cooks them. Run your fingernail along the top edge; if one corner is lifted, reseat it. Firm and square. That’s the whole trick.
Step 4: Manage the cable bend and clearance
The connector spec asks for no tight bends within about 35mm of the plug body. In plain terms, give the cable at least an inch and a half of straight run before it curves toward your side panel or cable channel. Bending too close to the connector puts sideways strain on the pins and can partially unseat the plug over time, even after a clean click. This is where cramped cases bite people.
Route the cable so it isn’t fighting the tempered-glass panel when you close the case. If the panel bows against the plug, that pressure works the connector loose across heat cycles. A 90-degree adapter can help in a tight build, but only use a reputable one rated for the full 600W, and reseat and recheck the card-side plug afterward. Loose cable management here quietly undoes all the careful work from step three.
Step 5: Power on and verify under load
Flip the PSU switch back on and boot the system. Let it idle at the desktop for a minute, then run a demanding game or a graphics stress workload for ten to fifteen minutes so the card actually pulls its rated power. This is the moment any half-seated pin will reveal itself, because current draw is what generates heat. Keep monitoring software open and watch that the GPU is drawing its expected wattage without throttling oddly.
After that load session, power down, open the case, and carefully touch the connector housing. It should be warm at most, never hot enough to be uncomfortable. If it’s alarmingly warm or you smell anything acrid, shut it all down immediately and reseat. A properly connected 12V-2×6 plug stays cool because the current spreads evenly across all twelve conductors. Uneven heat is the early warning sign that something didn’t seat right.
It’s smart to repeat this warm check after a week of normal use, because heat cycles can slowly work a marginal plug loose. If the first few sessions run cool and the connector still feels fine after that first week, you’re clear. The connection has proven itself under real conditions, and you can button up the case and forget about it. That’s the payoff for doing the seating carefully the first time.
If something goes wrong
Even careful builders hit snags. Here’s how to read the most common ones and what to do about each.
The connector won’t click
If the latch refuses to engage, stop pushing and pull the plug out. Check the orientation, since a crooked start binds the plug before it seats. Look for a bent sense pin along the bottom row. Nine times out of ten it’s a slightly misaligned entry, and a clean straight push fixes it. Never brute-force a plug that won’t click; you’ll bend pins and make it worse.
The card won’t power on or shows a warning
Some newer cards refuse to boot or flash an error if the sense pins don’t confirm a full connection. That’s actually the safety system doing its job. Reseat the plug on the card and double-check the PSU side too, because the cable can be half-out at either end. If you’re using an adapter, that’s the first suspect, so swap to the native cable and try again.
The connector runs hot after gaming
A plug that’s uncomfortably warm means current is concentrating on too few pins. Power off, reseat squarely, and confirm there’s no side-panel pressure or tight bend near the connector. If reseating with the native cable doesn’t cool it down, the cable or the card-side socket may be damaged, and you shouldn’t keep running it. That’s a stop-and-inspect situation, not a live-with-it one.
You only have an adapter, no native cable
If your older PSU didn’t ship with a 16-pin cable, the bundled adapter will work, but treat it as the higher-risk path. Plug all the required 8-pin PCIe leads into the adapter, seat everything fully, and recheck temperatures after your first load session. Long term, moving to an ATX 3.1 unit with a native cable is the cleaner fix, and it’s cheaper than a replacement graphics card.
Wrapping up
Connecting a 12VHPWR cable safely really does come down to three habits: use the native cable, push until it clicks flush, and keep tight bends away from the plug. Do those and verify temperatures under a real load, and this connector is no scarier than the old 8-pin plugs it replaced. The failures that made headlines were almost all seating problems, not design flaws you can’t work around.
If you’re spec’ing a new build, start with a power supply that ships with the right cable and enough headroom for your card. The best 1000W PSU picks for 2026 and our guide to the best PSU for a 9800X3D both list ATX 3.1 units that take the guesswork out of the connector entirely. Get the hardware right, follow the five steps, and you’ll have a cool, quiet, and safe connection that holds up build after build.
