ATX 3.0 landed with the 12VHPWR connector and promised to handle the brutal power spikes of modern GPUs. ATX 3.1 followed as a refinement, tightening the connector spec into 12V-2×6 and improving safety margins after early melting-connector scares made headlines. For gamers eyeing an RTX 5070 or a spiky high-end card, the question is real: does the newer standard actually buy you more, or is it a sticker on the box? We researched what separates the two revisions and where your money goes, using two current ATX 3.1 units as reference points. Our ATX 3.1 power supply guide for 2026 and 1000W PSU roundup go deeper on specific models.
Matchup at a glance
ATX 3.0 was the leap that mattered: it introduced native support for transient power spikes up to twice a GPU’s rated draw and brought the 12VHPWR connector for high-wattage cards. It’s still perfectly capable for gaming, and plenty of excellent units carry the 3.0 label. If you already own a quality 3.0 unit, you’re not missing much.
ATX 3.1 is the safety-and-refinement update. It revises the GPU connector to 12V-2×6, which reshapes the pins and sockets to reduce the risk of a poorly seated, overheating connection, the issue behind those early melting reports. It also tunes power-excursion requirements. Both of our reference units, the Corsair SF750 and the be quiet! Pure Power 13 M, are ATX 3.1 compliant and PCIe 5.1 ready, so they represent the current side of the fence.
The key thing to hold onto is that these aren’t rival camps fighting for your money. ATX 3.1 is a small evolution of 3.0, not a replacement that makes older units obsolete. A quality 3.0 supply and a quality 3.1 supply will both run a modern gaming GPU well. The difference lives in the connector safety margin and a few tightened requirements, which matters most on pricey high-wattage cards. For a mid-range gaming build, either standard keeps your system stable, so the badge shouldn’t override wattage, efficiency, and reputation in your decision.
Spec sheet showdown
| Spec | Corsair SF750 (2024) | be quiet! Pure Power 13 M 1000W | Why it matters |
|---|---|---|---|
| Standard | ATX 3.1, PCIe 5.1 | ATX 3.1, PCIe 5.1 | Both handle modern GPU spikes |
| Wattage | 750W | 1000W | Headroom for high-end cards |
| Form factor | SFX (small form factor) | ATX | SFF fits tiny builds; ATX is standard |
| Efficiency | 80 Plus Platinum | 80 Plus Gold | Platinum wastes less as heat |
| Price / rating | $159.99 / 4.1 | $139.90 / 4.8 | Value versus features |
ATX 3.0 strengths
ATX 3.0 did the heavy lifting. It’s the revision that made power supplies ready for GPUs that spike hard and fast, defining how a unit must ride out transient loads without tripping protections or browning out. For a gaming build, a solid 80 Plus Gold or Platinum ATX 3.0 unit with enough wattage will run an RTX 5070-class card without drama. The standard isn’t obsolete just because 3.1 exists.
There’s a value angle too. As 3.1 units become the default, quality 3.0 supplies sometimes sell at a discount, and you’re not sacrificing gaming stability by buying one. The connector is the same 12VHPWR you’ll find on many current cards. If a well-reviewed 3.0 unit at the right wattage costs meaningfully less than its 3.1 sibling, it’s a reasonable buy. Don’t pay a premium chasing a badge if the price gap is large and your card’s power needs are modest.
ATX 3.1 strengths
ATX 3.1’s headline is the 12V-2×6 connector. It’s a physical redesign of the GPU power plug that seats more reliably and reduces the odds of the hot-spot problem that plagued some early 12VHPWR connections. For anyone nervous about connector safety on a pricey high-wattage card, that’s a genuine peace-of-mind upgrade, not marketing. The revision also refines power-excursion handling, keeping the tight transient support of 3.0 while smoothing the edges.

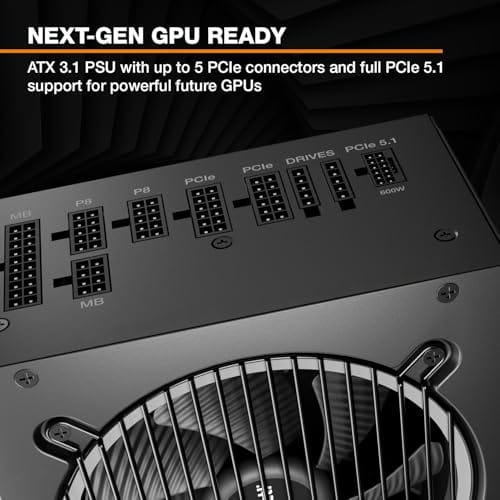

The be quiet! Pure Power 13 M 1000W shows why 3.1 is the safe default now. It’s 80 Plus Gold, ATX 3.1, PCIe 5.1 ready, with a semi-passive 120mm fan that stays silent under light load, single-rail design, and LLC technology, aimed squarely at overclocked GPUs. At $139.90 with a standout 4.8 rating and a full 1000W, it’s got headroom for demanding cards plus the newer connector spec. For a fresh build, that combination is hard to argue against.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.
The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.

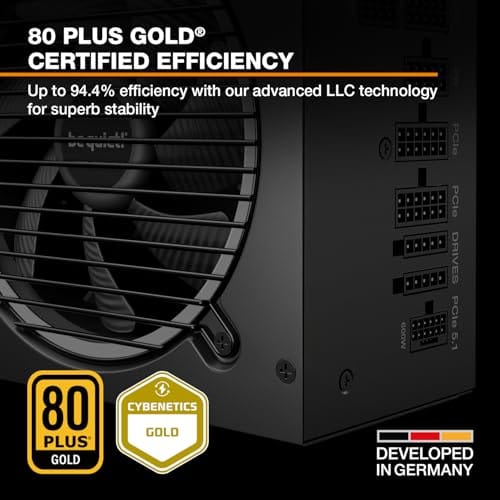

Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
Real-world scenarios
Small form factor gaming build
Building in a tiny case? The Corsair SF750 is an SFX unit, so it fits where a standard ATX supply won’t. At 750W with 80 Plus Platinum efficiency and full ATX 3.1 compliance, it powers a compact high-performance rig while wasting less energy as heat, which matters in a cramped enclosure. The $159.99 price reflects the SFF engineering. For mini-ITX gamers, form factor decides this more than the ATX revision does.
High-end single-GPU rig
Running a power-hungry card that spikes hard? The 1000W be quiet! Pure Power 13 M gives you comfortable headroom, and its ATX 3.1 12V-2×6 connector plus PCIe 5.1 readiness suit overclocked GPUs that draw big transient loads. That extra wattage means the unit loafs instead of straining, which keeps the semi-passive fan quiet. For most high-end gaming builds, this is the safer, calmer choice.
Upgrading an existing 3.0 system
Already own a good ATX 3.0 unit with enough wattage? You probably don’t need to rush to 3.1. The 3.0 standard handles modern GPU spikes fine, and a quality unit will run your card safely. Upgrade to 3.1 when you’re building fresh, replacing a failing supply, or specifically want the 12V-2×6 connector’s added safety margin. Swapping a healthy 3.0 unit just for the badge isn’t worth the spend.
Quiet-focused build
The be quiet! unit’s semi-passive 120mm fan stays off under light load and spins up only when needed, so a system that idles or games at moderate power runs near silent from the PSU. Pair a generously rated 1000W unit with a modest draw and the fan rarely engages. For a quiet-first build, wattage headroom plus a semi-passive fan beats a smaller unit running hot and loud.
Pricing and availability
The be quiet! Pure Power 13 M 1000W sits at $139.90, undercutting the 750W Corsair SF750 at $159.99, though they’re different animals: the Corsair pays for SFX form factor and Platinum efficiency, the be quiet! for raw wattage and a stellar 4.8 rating. Both are ATX 3.1 and PCIe 5.1 ready. Availability on current ATX 3.1 units is good as the standard becomes mainstream, and you’ll find more model choices than a year ago. For specific picks across wattages, our 1000W PSU guide lists current options.
Which to buy
For a fresh gaming build in 2026, buy ATX 3.1. The 12V-2×6 connector’s added safety margin and the negligible price difference make it the sensible default, and the be quiet! Pure Power 13 M 1000W is a strong example: cheap for its wattage, quiet, current on connectors, and rated 4.8. If you’re in a small case, the Corsair SF750 brings the same 3.1 compliance in SFX form with Platinum efficiency. Both are safe picks for spiky modern GPUs.
If you already run a solid ATX 3.0 unit with enough wattage, don’t feel pressured to switch. The real-world gaming difference is small, and 3.0 handles transient spikes well. Save the upgrade for when you’re building new or the old unit dies. Buy on wattage, form factor, efficiency, and reputation first; treat 3.1 as the tiebreaker it is, not a must-have that overrides everything else.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.
The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.
Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
Common questions
Is ATX 3.1 worth it over ATX 3.0 for gaming?
For a new build, yes, mainly for the 12V-2×6 connector’s improved safety, and the price gap is usually small. For gaming performance alone, a quality ATX 3.0 unit runs modern cards fine. The difference is safety refinement and future-proofing, not raw output. Buy 3.1 when building fresh; keep a good 3.0 unit if you already own one.
What is the 12V-2×6 connector?
It’s ATX 3.1’s revised GPU power connector, replacing the original 12VHPWR design. The pins and sockets are reshaped so the plug seats more reliably and is less prone to the hot-spot overheating behind early melting reports. It’s backward-compatible with 12VHPWR cables and cards, so it’s a safety-focused refinement rather than a wholesale change.
How many watts do I need for an RTX 5070?
A quality 750W to 850W unit is comfortable for an RTX 5070-class card in most gaming builds, giving headroom for CPU and spikes. The Corsair SF750 at 750W handles it in a small form factor, while a 1000W unit like the be quiet! Pure Power 13 M adds extra margin for overclocking. Match wattage to your whole system, not just the GPU.
Does 80 Plus Platinum matter over Gold?
Platinum is slightly more efficient than Gold, wasting a bit less power as heat, which helps in small or hot cases and trims running costs marginally. For most gamers the real-world difference is minor. The Corsair SF750 is Platinum; the be quiet! is Gold. Both are efficient enough that you’d choose on wattage, form factor, and price before efficiency tier.
Can I use a 12VHPWR card with an ATX 3.1 supply?
Yes. The 12V-2×6 connector on ATX 3.1 units is designed to work with existing 12VHPWR cables and GPUs. You get the improved seating and safety of the newer connector while staying compatible with current cards. That backward compatibility is part of why 3.1 is the sensible default for a new build without stranding your existing hardware.
