An SFX power supply is about 40% smaller by volume than a standard ATX unit, yet a good one like the Corsair SF750 pushes a full 750W through a body that fits in your palm. That size gap is the entire debate. For a compact build you want the small unit; for a big airflow tower you probably want the cheaper, cooler-running ATX box. We researched both form factors against real gaming needs, using two current ATX 3.1 units as the reference points, and lay out which one your build actually calls for. If you’re still choosing a unit, our roundup of the best SFX power supplies for a gaming build and the best ATX 3.1 power supplies of 2026 go deeper on specific models.
Matchup at a glance
SFX is the small-form-factor standard, built for mini-ITX and compact micro-ATX cases where an ATX unit simply won’t fit. It packs the same modern features into less space, and it pays for that density in price and, usually, a smaller, faster-spinning fan. Our SFX reference is the Corsair SF750, a fully modular 80 Plus Platinum unit at $159.99 with a 4.1-star rating, ATX 3.1 compliant and PCIe 5.1 ready with a bracket included.
ATX is the full-size default, and for most tower builds it’s the value play. You get more wattage per dollar, larger quieter fans, and easier cabling because the box has room to breathe. Our ATX reference is the be quiet! Pure Power 13 M 1000W, an 80 Plus Gold, ATX 3.1, PCIe 5.1 unit at $139.90 with a strong 4.8-star rating and a semi-passive 120mm fan. Notice the twist: the bigger unit here is both more powerful and cheaper.
Spec sheet showdown
| Spec | Corsair SF750 (SFX) | be quiet! Pure Power 13 M (ATX) | Why it matters |
|---|---|---|---|
| Form factor | SFX (small) | ATX (full size) | Case compatibility |
| Wattage | 750W | 1000W | Headroom for high-end GPUs |
| Efficiency | 80 Plus Platinum | 80 Plus Gold | Heat and power draw |
| Price | $159.99 | $139.90 | Value per watt |
| Standard | ATX 3.1 / PCIe 5.1 | ATX 3.1 / PCIe 5.1 | Modern GPU support |
The table makes the trade obvious. The SF750 wins on efficiency rating and physical size, while the Pure Power 13 M wins on raw wattage and price. Both are fully modern, both carry ATX 3.1 and PCIe 5.1 support, so neither leaves you short on the 12V-2×6 connector that current GPUs use. Your case and your GPU decide the rest.
SFX strengths
The whole point of SFX is fitting serious power into a tiny space. The Corsair SF750 delivers 750W of 80 Plus Platinum efficiency in the SFX footprint, which is what lets a mini-ITX gaming rig run a beefy GPU without stepping up to a shoebox case. Platinum efficiency also means less waste heat inside an already cramped enclosure, and that’s a real benefit when every cubic centimeter of airflow counts. Corsair even includes an SFX-to-ATX bracket so the unit can mount in a standard case if your next build grows.
Fully modular cabling helps enormously in small builds, where you attach only the cables you need and skip the rest to keep the tiny interior clean. The catch is the fan. SFX units use a smaller fan that spins faster to move equivalent air, so under heavy load an SFX unit can be more audible than a big ATX box. You also pay more per watt for the miniaturization, as the $159.99 for 750W versus $139.90 for 1000W plainly shows. For a compact build, that premium is simply the cost of entry.
ATX strengths
In a normal tower, ATX is the smarter buy almost every time, and the be quiet! Pure Power 13 M is a tidy example. It’s 1000W of 80 Plus Gold power for $139.90, more headroom than most single-GPU gaming rigs will ever use, at a lower price than the smaller SFX unit. Its semi-passive 120mm fan stays off entirely at low load, so the PSU is silent when you’re browsing or gaming lightly, and the larger fan moves air gently rather than screaming. The single-rail design and LLC technology also make it friendly to overclocked GPUs with spiky power draw.
Room is the underrated advantage. A full-size unit has space for thicker cables, sturdier connectors, and a bigger heatsink, which is part of why ATX units tend to run cooler and quieter at the same load. The only real downside is physical size: this box won’t fit a mini-ITX case, and its cables can crowd a small chassis. For anyone building in a mid-tower or larger, though, the Pure Power 13 M is the value and quiet-operation pick, and its 4.8-star rating reflects that.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.

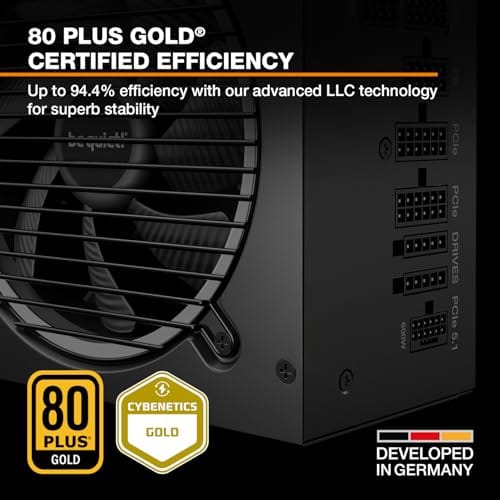

The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
Real-world scenarios
A mini-ITX RTX build on a desk
Here SFX wins by default. A compact ITX case physically can’t take an ATX unit, so the Corsair SF750’s 750W in the SFX footprint is the enabler. You accept a slightly louder fan under load and a higher price for the privilege of a small, powerful machine. That’s the trade every SFF builder makes, and it’s worth it for the size.
A mid-tower 1440p gaming rig
This one goes to ATX. The be quiet! Pure Power 13 M gives you 1000W, semi-passive silence, and a lower price, all in a chassis that has room to spare. There’s no reason to pay the SFX premium when the case fits a full-size unit. Buy the ATX box, enjoy the quiet fan, and pocket the difference.
A high-end overclocked GPU
Transient spikes from an overclocked flagship GPU stress a PSU hard. The Pure Power 13 M’s 1000W single-rail design and LLC technology give generous headroom for those spikes, and ATX 3.1 compliance means it’s rated to handle them. The SF750’s 750W is enough for many cards but leaves less margin, so for the most power-hungry overclocked GPUs, more watts help.
A quiet living-room HTPC
If the box lives under a TV and silence matters most, the semi-passive ATX unit shines, its fan doesn’t spin at all under light load. But if that HTPC is a slim SFF console-style case, you’re back to needing SFX for the fit. The form factor your case demands usually settles this before noise even enters the conversation.
Pricing and availability
As listed, the Corsair SF750 runs $159.99 and the be quiet! Pure Power 13 M 1000W runs $139.90, so the smaller SFX unit costs more while delivering fewer watts. That’s normal; you’re paying for miniaturization and Platinum efficiency, not raw capacity. Both are current ATX 3.1 units and widely stocked, though specific SFX models tend to sell out faster because fewer are produced.
Watch for the accessories too. The SF750 includes an SFX-to-ATX mounting bracket, which adds flexibility if you might move the unit into a larger case later. The Pure Power 13 M’s value case rests on its 4.8-star rating and semi-passive fan. Prices on both shift with sales, so if you’re flexible on timing, a discount can close or widen the gap between the two form factors quickly.
Which to buy
Let your case decide first. If you’re building in a mini-ITX or compact SFF enclosure, the Corsair SF750 is the answer, because an ATX unit won’t physically fit and 750W of Platinum-rated power is plenty for a single strong GPU. You’ll pay a premium and accept a slightly busier fan under load, but you get a genuinely small, capable machine. That’s the whole reason SFX exists.
For everyone building in a mid-tower or bigger, the be quiet! Pure Power 13 M 1000W is the pick. It’s cheaper, quieter thanks to its semi-passive 120mm fan, and gives more headroom for overclocked GPUs, all in a form factor your case already accommodates. Don’t pay the SFX tax you don’t need. Match the unit to the space, and the value falls out naturally in ATX’s favor for standard towers.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.
The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.
Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
Common questions
Is SFX worse than ATX?
No, it’s just built for a different job. SFX packs comparable power and features into a smaller body for compact cases, and units like the SF750 are Platinum-rated and fully modular. It costs more per watt and its smaller fan can be louder under load, but for a build that needs the size, none of that makes it worse.
Can I use an SFX PSU in a full ATX case?
Yes, with a bracket. The Corsair SF750 includes an SFX-to-ATX adapter bracket for exactly this. There’s rarely a reason to, since ATX units cost less per watt in a full case, but it’s handy if you’re moving an SFX unit from an old SFF build into a new tower without buying a new PSU.
Does 80 Plus Platinum matter over Gold?
A little. Platinum is a few percent more efficient than Gold, meaning slightly less waste heat and marginally lower power draw. In a cramped SFX build that reduced heat is genuinely useful. In a roomy ATX tower the practical difference is small, which is why a Gold unit like the Pure Power 13 M is still an easy recommendation.
Do both support new GPU power connectors?
Yes. Both the SF750 and the Pure Power 13 M are ATX 3.1 compliant and PCIe 5.1 ready, so both support the 12V-2×6 connector modern high-end GPUs use. Neither leaves you needing a sketchy adapter, and both are rated to handle the power transients those cards produce.
How many watts do I actually need?
For a single-GPU gaming rig, 750W covers the vast majority of builds, including strong cards, which is why the SF750 is enough for compact systems. Stepping to 1000W like the Pure Power 13 M buys headroom for overclocking and future upgrades. If your case fits ATX, the extra watts often cost less, so there’s little reason not to take them.
