You’ve seen the badges on power supply boxes: 80 Plus Bronze, Gold, Platinum. They promise efficiency, but what does that actually buy you? In plain terms, PSU efficiency is how much of the power drawn from your wall socket reaches your components instead of leaking away as heat. A more efficient unit wastes less, runs cooler, and quietly saves you money over its lifespan. It’s one of the least glamorous specs in a build, and one of the most misunderstood.
Here’s the short version before we go deep. Efficiency doesn’t make your PC faster, and a higher rating won’t add a single frame. What it does is reduce waste heat, lower your electricity draw, and often signal better internal components. If you’re shopping, our guides to the best 1000W PSU for 2026 and the best modular PSU for a gaming PC in 2026 put these ratings in context. Let’s explain what efficiency really means for your rig.
The short answer
PSU efficiency is the percentage of AC power from your outlet that gets converted into usable DC power for your components. An 80 Plus Gold unit is roughly 87 to 90 percent efficient at typical loads, meaning a tenth or so of the power it pulls turns into heat rather than reaching your parts. A Platinum unit does slightly better. The rest of the wall draw is simply lost in conversion.
That waste heat is the practical cost. A less efficient supply pulls more from the wall to deliver the same watts to your PC, and it dumps the difference as heat your fans have to clear. The Corsair SF750 (2024), an 80 Plus Platinum SFX unit at $159.99 with a 4.1-star rating, sits near the top of the efficiency ladder while staying small enough for compact builds. That combination is why enthusiasts pay a premium for it.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.

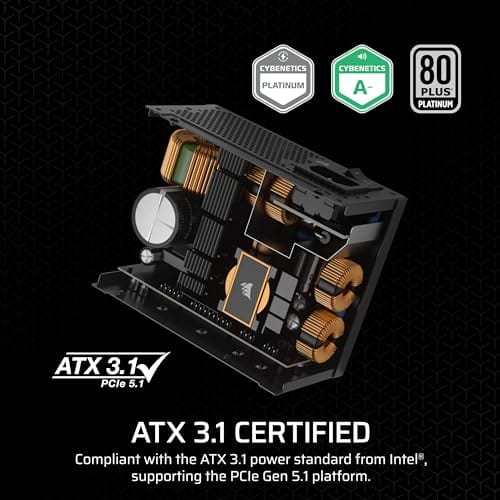

The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.
Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
The longer explanation
Efficiency isn’t a single number, it’s a curve. A PSU is most efficient somewhere in the middle of its rated capacity, typically around 40 to 60 percent load, and less efficient at very low or very high draw. That’s why a 1000W unit powering a system that idles at 80W and peaks at 500W tends to live in its efficiency sweet zone, running cool and calm. The 80 Plus rating certifies performance at 20, 50, and 100 percent load.
The tiers climb from 80 Plus white through Bronze, Silver, Gold, Platinum, and Titanium, each demanding higher minimum efficiency at those load points. Gold is the mainstream target for good reason: it captures most of the real-world savings without the steep price jump to Titanium. Beyond a certain point, you’re paying a lot for a fraction of a percent, which is why chasing the highest tier rarely pays back for a typical gamer.
History and how we got here
The 80 Plus program launched in 2004 to push power supplies past 80 percent efficiency, back when many cheap units wasted a third of their draw. As components grew hungrier and electricity costs climbed, the incentive to convert power cleanly grew with them. Manufacturers competed on the badges, and the tiers expanded upward to Platinum and Titanium as engineering improved. What began as a modest floor became a marketing ladder.
Modern standards pushed it further. The ATX 3.1 spec and PCIe 5.1 readiness that units like the be quiet! Pure Power 13 M advertise reflect newer demands, especially the punishing transient power spikes of current GPUs. Efficiency alone isn’t the whole story anymore, but it remains the headline number because it’s easy to certify and easy for buyers to compare at a glance.
Why it works this way
The physics is simple. Converting high-voltage AC from your wall into the low-voltage DC your components need always loses some energy, mostly as heat, in the transformers, capacitors, and switching circuitry inside the unit. Better components and smarter topologies, like the LLC resonant designs many Gold and Platinum units use, cut those losses. That’s why higher-tier units cost more: the internal parts are genuinely better.
Less waste heat cascades into other benefits. A cooler-running PSU can spin its fan slower or not at all, which is how semi-passive designs stay silent at low load. It also stresses its own components less, often correlating with longer lifespan and better warranties. So efficiency ends up as a proxy for overall quality, even though the rating itself only measures conversion loss.
When you’d want this
A high-efficiency PSU pays off most in systems that run long hours or draw serious power. If you game daily, run a home server, or fold and render around the clock, the electricity savings from Gold or Platinum add up over years, and the reduced heat keeps your whole case cooler and quieter. High-wattage builds with power-hungry GPUs benefit the most from a clean, efficient supply that isn’t fighting its own waste heat.
For a mainstream build, Gold is the smart target. The be quiet! Pure Power 13 M 1000W, $139.90 at a strong 4.8-star rating, is 80 Plus Gold certified, ATX 3.1 compliant, and PCIe 5.1 ready, with a semi-passive 120mm fan that stays silent under light load and single-rail LLC design for overclocked GPUs. At that price and rating, it captures the practical efficiency wins without the Titanium premium. For most high-end rigs, that’s the balance to aim for.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.
The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
What to look for in a PSU
Start with wattage headroom, then efficiency tier, then modularity. Size the unit so your system’s peak draw lands near that 50 percent efficiency zone, which usually means a 750W to 1000W supply for a modern gaming rig. Aim for 80 Plus Gold as the value target, and step up to Platinum only if you run the machine hard for many hours. Confirm ATX 3.1 and PCIe 5.1 support if you’re pairing it with a current-generation GPU.
Modularity, single-rail versus multi-rail design, and warranty length round out the decision. Fully modular units keep cabling clean, which matters in compact and showcase builds. A long warranty, often 7 to 10 years on quality units, signals the maker’s confidence. Don’t buy on wattage alone. The efficiency rating and build quality behind it are what you’ll live with daily.
Common misconceptions
The biggest myth is that a higher-wattage or higher-efficiency PSU makes your PC faster. It doesn’t. Your components draw exactly what they need regardless of the supply’s capacity or rating. A 1000W Platinum unit and a 1000W Bronze unit deliver identical performance to the same parts. The difference is heat, noise, electricity cost, and internal quality, not speed.
Another myth is that bigger is always safer. A wildly oversized PSU runs at low load where efficiency dips, so a 1200W unit in a 300W system isn’t optimal. And efficiency ratings don’t guarantee good voltage regulation or protection features on their own, though they often correlate. Read reviews for the specifics. The badge is a starting point, not the whole verdict.
Frequently asked
Does a higher 80 Plus rating lower my electric bill?
Yes, modestly. A Gold unit wastes less power than a Bronze one delivering the same output, so it pulls slightly less from the wall. For a PC running many hours a day over several years, that adds up to real savings. For a machine used lightly, the difference is small and the payback slower.
Is Platinum worth it over Gold?
For most people, no. Gold captures the bulk of the efficiency gains at a much friendlier price, and the jump to Platinum buys only a few extra percent. Platinum makes sense for compact builds where the lower heat helps, or for systems that run at high load around the clock. Otherwise Gold is the value pick.
What wattage PSU do I actually need?
Size it so your system’s peak draw lands near half the unit’s rating, which keeps you in the efficient zone with headroom to spare. Most modern gaming builds are comfortable on 750W to 1000W depending on the GPU. Use an online PSU calculator with your exact parts, then add a margin for transient spikes and future upgrades.
Does efficiency affect how loud my PC is?
Indirectly, yes. A more efficient PSU produces less waste heat, so its fan can spin slower or stay off entirely in semi-passive designs like the be quiet! Pure Power 13 M. Less heat inside the case also means your other fans work less hard. So a high-efficiency unit contributes to a quieter overall system.
Do I need ATX 3.1 and PCIe 5.1 support?
If you’re running or planning a current-generation GPU, yes. ATX 3.1 handles the sharp transient power spikes modern graphics cards produce, and PCIe 5.1 readiness means native support for the newest power connectors. Both units referenced here meet those standards. Pairing an older PSU with a new high-draw GPU can trigger instability, so match the spec to your card.
How long should a good power supply last?
A quality unit from a reputable brand often lasts 7 to 10 years, which is why they ship with warranties that long. The capacitors and fan wear over time, and higher-efficiency units tend to age more gracefully because they run cooler and stress their internal components less. A PSU is one of the few parts worth carrying across two or three builds, so buying a good one up front pays off.
