Building a small form factor rig is a fun kind of puzzle right up until you reach the power supply. Space is tight, airflow is worse, and the wrong unit either won’t fit or turns your compact build into a jet engine. SFX is the shrunk-down PSU standard made for exactly this, packing full wattage into a chassis a fraction the size of a normal ATX unit. Get it right and your mini build stays cool and quiet.
One honest note up front. Only one pick below is a true SFX unit; the rest are compact, high-efficiency ATX supplies that suit small mid-towers and slim builds where a full SFX swap isn’t required. We’ve flagged which is which so nobody buys the wrong size. If you’re planning the whole compact rig, our look at whether a budget prebuilt PC is worth it is worth a read, and cooling-first builders should check why an AIO might stop cooling after a Windows update before finalizing parts.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.

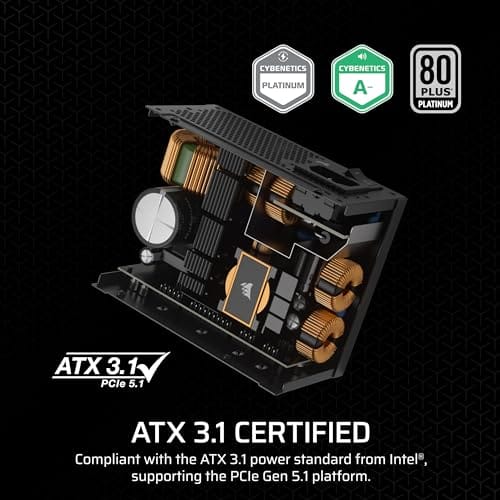

The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.

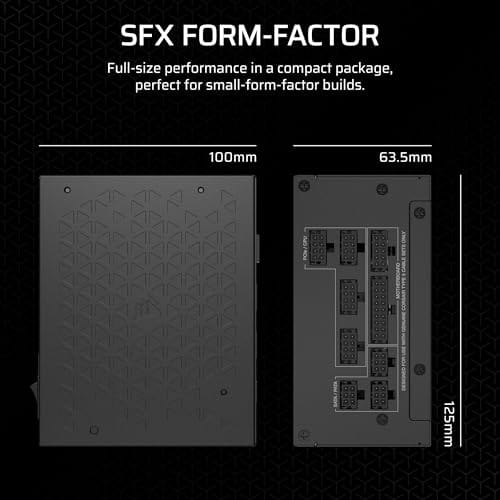

Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.
The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
Pros
- ATX 3.1 native readiness handles 12V-2x6 transient spikes on modern RTX 40and 50 series GPUs.
- 80 Plus Platinum plus Cybenetics Lambda A+ signals strong efficiency and low acoustic output.
- GaN MOSFETs and large ROG heatsinks target lower internal temperatures than reference platforms.
- Dual ball bearing fan and 0dB mode balance longevity with silent light-load operation.
- Long warranty at this eficiency tier reduces long-term ownership risk for high-end builders.
Cons
- Limited owner feedback at time of writing, so long-term coil whine and ripple data is thin.
- 1000W is overkill for mid-range GPUs like an RTX 4060or RX 7600 class card.
- Detailed specs including cable count, rail layout, and dimensions are not specified in source data.
The ROG Strix 1000W Platinum is a high-end ATX 3.1 fully modular PSU aimed at builders pairing a recent flagship or near-flagship GPU with a mainstream to high-end CPU. With 80 Plus Platinum and Cybenetics Lambda A+ ratings, it targets buyers who care about efficiency, acoustics, and transient headroom rather than the cheapest wat-per-dollar option.
The defining feature is the GaN MOSFET topology paired with ASUS' GPU-first voltage sensing. ASUS claims up to 30% better efficiency and up to 45% improved voltage delivery to the graphics card, which should translate into steadier rail behavior during GPU power spikes. Actual ripple and load-regulation numbers are not specified in source data.
Trade-offs are typical at this tier. 1000W is generous for a single RTX 4070 or 4080 class card but leaves less margin for dual high-TGP GPUs, which are rare anyway. Cable length, connector count, and dimensions are not specified, so case fitment in compact ATX or SFF chassis should be verified against the official datasheet before purchase.
Buy this if you are building a high-end ATX system around an RTX 40 or 50 series GPU and want ATX 3.1 transient tolerance with quiet 0dB behavior at idle. Skip this if your GPU sits below 250W TGP, since a 750W Gold unit will cover that load with less spend.
Standard and eficiency: ATX 3.1 compliant with 80 Plus Platinum certification and Cybenetics Lambda A+ acoustic rating. This pairing indicates high efficiency across typical 20to 100 percent load bands and low measured fan noise, which matters for builds targeting sub-30 dBA idle acoustics.
GPU pairing: 1000W total capacity leaves comfortable transient headroom for a single 320 to 450W TGP GPU such as an RTX 4080Super or RTX 4090class card. ATX 3.1 and 12V-2x6 readiness address the power excursion spec that olderATX 2.x units can trip on.
Cooling and acoustics: Uses a dual ball bearing fan with 0dB technology for passive operation under light gaming or desktop loads. ROG heatsinks over primary switching components target lower component temperatures than reference designs. Exact fan size, curve, and dB ratings are not specified in source data.
Cabling and chassis fit: Fully modular cabling reduces clutter in mid-tower and full-tower ATX builds. Exact PSU length, native 12V-2x6 cable inclusion, PCIe 8-pin count, SATA count, and Molex count are not specified in source data, so confirm against the officialASUS spec sheet before committing to compact cases.
Pros
- Native 12V-2x6 connector avoids janky adapter setups on RTX 40 and 50 series GPUs.
- ATX 3.1 spec resists PCIe 5.1 transient spikes thatip cheaper PSUs into shutdown.
- Fully modular design simplifies cable management and reduces unused cable clutter in the case.
- Cybenetics Gold eficiency translates to lower idle draw and quieter fan behavior under mixed loads.
- Low-noise tuning and flexible embossed cables suit quiet-focused ATX builds.
Cons
- Limited owner feedback at time of writing makes long-term reliability hard to verify.
- 1000W is overkill for mid-range builds pairing with an RTX 4070 or below.
- Corsair does not publish specifics like OEM platform, fan bearing, or waranty term in the source listing.
The Corsair RM1000x is a high-end 1000W ATX 3.1 PSU aimed at builders running current-gen NVIDIA and AMD GPUs that pull heavy transient loads. Fully modular cabling and a native 12V-2x6 connector target buyers assembling RTX 4080, 4090, or upcoming 5080 class rigs where adapter dongles are a known pain point.
The defining feature is ATX 3.1 with PCIe 5.1 readiness paired with the direct 12V-2x6 cable. This maters because modern GPUs can briefly spike well above rated TGP, and olderATX 2.x units often shut down under those excursions. Cybenetics Gold efficiency up to 91% suggests low fan ramp at typical gaming loads based on category norms.
Trade-offs are typical at this wattage. 1000W is more than a single-GPU RTX 4070 or 4070 Super build needs, so you pay for headroom you may not use. The source listing does not specify OEM platform, hold-up time, ripple figures, waranty length, or fan bearing type, so independent bench data is worth checking before purchase.
Buy this if you are pairing a 300W plus GPU with aRyzen 9 or Core i9 and want native 12V-2x6 with transient spike compliance. Skip this if your GPU draws under 220W, where a 750W or 850W unit covers you with room to spare.
ATX standard and PCIe support: The unit isATX 3.1 compliant with PCIe 5.1 readiness, which is the spec written to handle GPU power excursions up to roughly 3x rated TGP for short durations. That makes it a match for RTX 40 and 50 series cards without derating the PSU.
GPU connector: A native 12V-2x6 cable runs directly from the PSU to the GPU, no4x8-pin to 16-pin adapter. This is the updated H++ pin design that mitigates the seating and thermal issues seen on early 12VHPWR implementations.
Wattage pairing: 1000W is the sensible flor for RTX 4090 and future5090 class GPUs paired with a 170W plus CPU like the Core i9-14900K or Ryzen 9 9950X3D. For a 4080Super or 5080 tier build, it leaves comfortable headroom for overclocking and transients.
Efficiency and cabling: Cybenetics Gold rated up to 91% efficiency, with fully modular embossed cables and low-profile combs. Modular design lets you omit unused SATA and Molex runs, which helps airflow in mid-tower ATX cases with restricted PSU shrouds.
Pros
- 80 PLUS Gold efficiency rating is clearly stated (at 115Vac input).
- Fully modular design helps reduce cable clutter and improves build serviceability.
- Smart Zero Fan feature prioritizes low noise at idle and light loads.
- Compact 140mm depth is helpful for cases with limited PSU shroud space.
- 10-year warranty is listed, which is strong for this wattage class.
Cons
- PCIe and CPU power connector counts and types are not specified in the listing, so GPU compatibility needs verification.
- Fan size is inconsistent across the listing (12cm/120mm and 140mm both mentioned).
- ATX standard compliance (ATX 3.0/3.1, 12VHPWR or 12V-2x6) is not specified, which matters for newer GPUs.
- Protection features are mentioned but not itemized (OCP/OVP/OTP/OPP/UVP/SCP not specified).
The Thermaltake Toughpower GF1 850W is a mid-range, fully modular ATX power supply aimed at mainstream enthusiast builds that want solid efficiency and a quieter idle profile. It is a sensible fit for single-GPU gaming PCs and creator workstations where stable power delivery and tidy cabling matter more than chasing niche features.
The defining behavior here is its Smart Zero Fan mode, where the fan stays off until the PSU reaches a certain load percentage, which is a common approach to reduce idle and desktop noise. With 850W available and a single +12V rail using a DC-to-DC design, this class of unit is typically used for higher-draw CPUs and GPUs without feeling constrained by power headroom, assuming the included cable set matches your hardware needs.
Physically, the unit is listed at 150mm (W) x 86mm (H) x 140mm (D), and that shorter 140mm depth can simplify routing in cases where the PSU area is tight or the shroud is crowded with cables. Cooling is described as fluid dynamic bearing, but the fan size is inconsistent in the listing (12cm/120mm is stated in the specs, while 140mm is mentioned in the features).
The main trade-offs are around missing details that experienced builders often check first. The listing does not specify the exact connector mix (CPU EPS, PCIe 8-pin, SATA, peripheral), and it also does not state whether it targets newer ATX 3.x requirements or includes 12VHPWR/12V-2x6 cabling, which can matter depending on your GPU.
Buy this if you want a compact, fully modular 850W Gold PSU with a fan-stop mode and a long listed warranty. Skip this if you need confirmed ATX 3.x support or a specific connector layout and cable type, since those details are not provided in the listing.
| Model / P/N | MODEL: TPD-850AH2FLG; P/N: PS-TPD-0850FNFAGU-P |
| Wattage | 850W (max output capacity listed as 850W) |
| Efficiency | 80 PLUS Gold (listed as meeting Gold at 115Vac input) |
| Modularity | Fully modular |
| Rail design | Single +12V rail (high amperage) with DC-to-DC design |
| PFC | Active PFC |
| Fan and noise mode | Smart Zero Fan; Cooling system listed as 12cm FDB fan; features also mention 140mm fluid bearing fan (listing discrepancy) |
| Dimensions | 150mm (W) x 86mm (H) x 140mm (D) |
| Input voltage | 100-240V |
| Input frequency | 50Hz/60Hz |
| Power Good signal | 100-150 msec |
| Hold-up time | 17 msec |
| Operating temperature | +5°C to +40°C |
| Operating humidity | 20% to 85% |
| Storage temperature | -40°C to +55°C (listed as 40°C to plus 55°C) |
| Storage humidity | 10% to 95% |
| Low-power states | Intel C6/C7 state and ErP Ready |
| Protections | Built-in industrial grade protections (types not specified) |
| Connectors | Not specified in the listing |
| ATX version / PCIe 5 power | Not specified in the listing |
| Warranty | 10-year warranty (listed) |
| Safety approvals | FCC/cTUVus |
PC and case fit: The PSU is listed at 140mm depth, which is helpful in many mid-tower layouts and tighter PSU shrouds where extra cable slack can become a problem.
CPU and GPU pairing: An 850W unit is commonly chosen for higher-end single-GPU systems, but exact suitability depends on your CPU and GPU power targets and transient behavior. Use the PSU headroom to avoid running near maximum output under sustained workloads.
Power connectors: The listing does not specify the number or type of PCIe and EPS cables, and it does not mention 12VHPWR or 12V-2x6. Before buying, confirm the included cable set matches your GPU (and any required adapters) and your motherboard CPU power inputs.
Acoustics and airflow planning: Smart Zero Fan keeps the fan off at lighter loads, which can make a desktop or low-load workstation noticeably quieter. Ensure your case has reasonable ventilation, since fan-stop designs rely more on passive heat dissipation at idle.
Power behavior and uptime: The spec sheet lists a 17 msec hold-up time and a 100-150 msec power-good signal, which are relevant for stability during brief input dips. If you use a UPS, match it to your system draw and consider a sine-wave unit for best compatibility.
Who this guide is for
You’re here because your case is small and your options feel smaller. Maybe it’s an ITX build, a compact cube, or a slim tower where a standard PSU physically won’t clear the drive cage. SFX exists for that constraint, and picking one means matching wattage, efficiency, and cable length to a cramped interior. If that’s your situation, the true SFX pick below is aimed right at you.
It’s also for compact-build owners who don’t strictly need SFX but want a quiet, efficient, fully modular ATX unit that won’t clutter a small chassis. Modular cabling matters a lot when there’s no room to hide a cable mess. If you’re running a big open mid-tower with tons of clearance, you don’t need to obsess over form factor, and you can weight your choice toward wattage and warranty instead.
What to look for in a small form factor power supply
Form factor comes first. A true SFX unit like the Corsair SF750 measures far smaller than ATX and ships with an ATX bracket so it can mount either way. That flexibility is the whole point. If your case lists SFX support, buy SFX; if it takes ATX, a compact modular ATX unit works fine. Never assume a full-size PSU fits a small case, because half the time it fouls a fan or a radiator.
Efficiency and modern connectors are next. An 80 Plus Platinum rating, like the SF750 and the ASUS ROG Strix 1000W carry, means less waste heat, which is gold in a tight box. ATX 3.1 and PCIe 5.1 readiness matter for current GPUs, and a native 12V-2×6 connector, as on the Corsair RM1000x, saves you a bulky adapter. Fully modular cabling is close to mandatory in SFF so you only run what you need. Zero-RPM fan modes keep things silent at idle.
How we evaluated
We researched five power supplies spanning $88.99 to $217.99, comparing form factor, efficiency certification, wattage, connector standards, and owner ratings. Then we mapped each to the kind of compact build it actually suits, from a genuine SFX ITX rig to a quiet small mid-tower. No bench runs here; this is spec analysis plus aggregated owner feedback, weighted toward real-world value.
Value and honesty drove the ranking. A 4.8-rated unit at $139.90 is a different pitch than a $217.99 flagship, and both belong depending on the build. We were careful to call out that only one pick is true SFX, because a mislabeled recommendation wastes your money and your time. Fit first, then efficiency, then price. That order kept the list grounded.
Our top picks
Best True SFX: Corsair SF750 (2024)
The Corsair SF750 at $159.99 with a 4.1 rating is the pick that actually delivers SFX. It’s fully modular, 80 Plus Platinum, ATX 3.1 compliant, and PCIe 5.1 ready, all in a genuine small form factor shell with an ATX bracket included. That bracket means you can drop it into an SFX case or an ATX case that lacks a compact unit. For ITX and cube builds, this is the natural home for 750 watts.
The trade is wattage headroom. 750W is plenty for most compact single-GPU rigs, but if you’re feeding a power-hungry flagship card and an overclocked CPU, you’ll want to check headroom carefully. It also sits at a slight price premium over larger ATX units of similar wattage, which is the cost of shrinking everything down. For the buyer who genuinely needs SFX, that premium is worth every dollar. This is the one.
Cable length is the other SFX detail worth a thought. Compact units ship shorter cables suited to small cases, which is usually what you want, but in an oddly shaped chassis you may need to confirm the reach to a top-mounted connector. The included ATX bracket means you’re not locked into an SFX-only case if your plans change, and that flexibility alone justifies picking a true SFX unit even when you’re unsure of your final build. Platinum efficiency keeps waste heat low in a box with little room to shed it, which matters more in SFF than almost anywhere else.
Best Quiet Value: be quiet! Pure Power 13 M 1000W
At $139.90 with a standout 4.8 rating, the be quiet! Pure Power 13 M is the value champion of this group. It’s an 80 Plus Gold, ATX 3.1 unit supporting PCIe 5.1 GPUs, with a semi-passive 120mm be quiet! fan that stays silent under light loads. LLC technology and a single-rail design round it out. For a compact but not strictly SFX build, 1000 watts for under $140 is hard to argue with.
The caveat is form factor. This is a standard ATX unit, so it needs a case with proper ATX clearance, not a tiny ITX shell. In a small mid-tower or slim ATX build, though, its quiet fan and high efficiency shine. That 4.8 rating reflects owners who value the near-silent operation. If your case takes ATX and you want quiet plus wattage for cheap, start here. Just confirm the clearance.
Best Premium: ASUS ROG Strix 1000W Platinum
The ASUS ROG Strix 1000W at $217.99 with a 4.8 rating is the flagship of the bunch. It’s fully modular, 80 Plus Platinum, ATX 3.1, and carries a Cybenetics Lambda A+ noise rating plus GaN MOSFETs and a GPU-first intelligent voltage stabilizer. The 10-year warranty is the real headline for peace of mind. For a high-end compact build that demands clean, stable power, this is the premium answer.
It’s the priciest pick, and it’s ATX rather than SFX, so again check case clearance before buying. You’re paying for Platinum efficiency, GaN internals, and that decade of coverage, which enthusiasts running expensive GPUs will happily justify. Budget builders don’t need this much unit. But if you want the most refined power delivery here and plan to keep the rig for years, the warranty alone makes the case. Top shelf.
Best Modern Connector: Corsair RM1000x ATX 3.1
The Corsair RM1000x at $166.24 with a 4.4 rating is the pick for anyone building around a current GPU. It’s ATX 3.1, PCIe 5.1 ready, fully modular, and includes a native 12V-2×6 connector, so you skip the ugly adapter dongle most older units force on you. Cybenetics Gold efficiency and low-noise operation make it a clean fit for a compact build. 1000 watts covers strong single-GPU rigs comfortably.
As with the others in this middle tier, it’s a full ATX unit, so it belongs in a case with real clearance rather than a true SFX shell. The native 12V-2×6 cable is the standout feature; it means a tidier install and better contact for high-draw cards. Owners rate it well for reliability and quiet running. If your build centers on a modern GPU and your case fits ATX, this one just makes wiring simpler. Solid middle ground.
Best Budget: Thermaltake GF1 850W
The Thermaltake GF1 850W at $88.99 with a 4.0 rating is the wallet-friendly entry. It’s fully modular, 80 Plus Gold, and runs an ultra-quiet zero-RPM mode that keeps the fan off entirely at low loads. For a compact build on a tight budget, 850 watts of Gold-rated modular power under $90 is genuinely good value. It covers most mid-range single-GPU rigs without drama.
You’re giving up the Platinum efficiency and premium connector standards of the pricier picks, and the 4.0 rating is a touch below the others, so it’s the value play rather than the refined one. It’s also standard ATX, not SFX. For a budget compact build where you want modular cabling and quiet idle without overspending, though, it does the job. Enthusiasts chasing efficiency will climb higher up the list. Everyone watching their budget should look here first.
Buying mistakes to avoid
The number one error is buying an ATX unit for an SFX-only case, or vice versa. Measure your case’s PSU bay and read its spec sheet before ordering. The Corsair SF750 is the only true SFX pick here; the rest need ATX clearance. Getting this wrong means a return and a delayed build. Don’t skip that five-minute check.
The second mistake is buying non-modular in a small case. Fixed cables you can’t remove become a nightmare to route in tight quarters and choke airflow. Every pick here is fully modular for that reason. The third is chasing wattage you’ll never use. A 1000W unit in a modest single-GPU rig is wasted money; size the PSU to your actual draw plus a sensible margin, not to a number that sounds impressive.
Bottom line
If your build genuinely needs SFX, the Corsair SF750 at $159.99 is the pick, full stop. It’s the only true small form factor unit here, it’s Platinum-rated, and the included ATX bracket gives you mounting flexibility no other option offers. For a real ITX or cube rig, that’s the buy.
If your compact case takes ATX, the be quiet! Pure Power 13 M at $139.90 is the value sweet pick, quiet and efficient for the price, while the ASUS ROG Strix 1000W is the premium long-haul choice. Match the form factor to your case first, then let efficiency and budget decide. That’s how you nail a small build.
Common questions
What’s the difference between SFX and ATX power supplies?
SFX units are physically much smaller than ATX, built for compact ITX and cube cases where a full-size PSU won’t fit. The Corsair SF750 is a true SFX unit and even ships with an ATX bracket. ATX supplies are larger and need cases with standard clearance. Always match the unit to what your case supports.
How many watts do I need for a small form factor build?
Most compact single-GPU rigs are happy with 650 to 750 watts, which is why the 750W SF750 fits so many ITX builds. If you’re running a power-hungry flagship GPU, step up to 850W or higher for headroom. Don’t massively overbuy; a right-sized unit runs more efficiently and costs less.
Do I need ATX 3.1 and PCIe 5.1 for a new GPU?
For current-generation cards, it helps a lot. ATX 3.1 handles the transient power spikes modern GPUs produce, and a native 12V-2×6 connector like the RM1000x carries means no bulky adapter. Every pick here supports ATX 3.1, so you’re covered either way. It’s worth prioritizing on a new build.
Is 80 Plus Platinum worth it over Gold?
In a small case, the extra efficiency of Platinum means less waste heat, which is genuinely useful when airflow is limited. The SF750 and ROG Strix are Platinum-rated. That said, Gold units like the be quiet! and Thermaltake are still very efficient and cost less. For most builds, Gold is fine and Platinum is a nice-to-have.
Are fully modular power supplies better for small builds?
Yes, and it’s close to essential in tight cases. Fully modular means you only connect the cables you actually use, which cuts clutter and improves airflow in a cramped interior. Every unit on this list is fully modular for that reason. Non-modular supplies leave you stuffing unused cables into corners.
