An 80 Plus rating tells you how efficiently a PC power supply turns wall power into usable DC power for your components. It doesn’t tell you everything about build quality, noise, cable layout, or long-term reliability, but it’s one of the easiest labels to understand when you’re comparing PSUs for a gaming or workstation build. If you’re sizing a high-end rig, pair this guide with our 850 watt PSU guide or our 1000W power supply picks.
The useful part is simple: a more efficient PSU wastes less electricity as heat. Less waste can mean a cooler power supply, a slower fan curve, and a little less power draw at the wall. Not magic. Just conversion loss. The trick is knowing when the label matters and when other PSU details should take priority.
The short answer
80 Plus is a voluntary efficiency certification for power supplies. To earn the basic 80 Plus mark, a PSU has to reach at least 80% efficiency at defined load points, which means 80% or more of the AC power pulled from the wall becomes DC power for the PC. The remaining power turns mostly into heat inside the PSU.

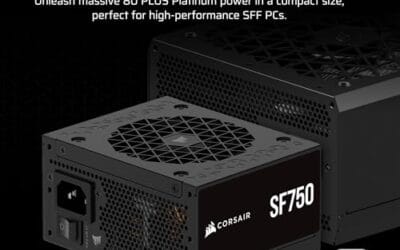

Higher tiers such as Bronze, Silver, Gold, Platinum, and Titanium require higher efficiency at those load points. A Platinum SFX unit like the Corsair SF750, priced at $159.99 with a 4.1 rating, is aimed at compact builds that need strong efficiency in a small form factor. It’s also fully modular, ATX 3.1 compliant, and PCIe 5.1 ready, which matters more for modern GPU cabling than the badge alone.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.
The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.
Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
The longer explanation
Every PSU is a converter. Your wall outlet supplies AC power, while your motherboard, GPU, drives, and fans need DC power at specific voltages. During that conversion, some energy is lost. If a PC needs 400 watts of DC power and the PSU is 90% efficient at that load, it may pull roughly 444 watts from the wall. If it’s 80% efficient, it may pull about 500 watts for the same PC load. Same system performance. Different waste.
That waste shows up as heat, and heat has consequences. The PSU’s internal fan may spin faster, the case may carry a bit more warmth, and cramped systems can get noisier. The difference won’t make a budget office PC feel faster, and it won’t fix an underpowered GPU build. Still, if you’re already choosing between reputable units with the right wattage, protection features, connectors, and warranty, the 80 Plus tier is a meaningful tie-breaker.
Think of the rating as a fuel-economy label, not a horsepower rating. A more efficient power supply doesn’t give your graphics card extra watts beyond the unit’s rated capacity. It simply needs less input power to deliver the output power your PC is already asking for. That’s why you’ll see efficient 750W, 850W, and 1000W units at very different prices, sizes, and cable layouts.
History / how we got here
The 80 Plus program became popular because older PC power supplies varied wildly in efficiency. A cheap unit could waste a lot of wall power, especially at light or moderate load, and buyers had no quick front-of-box clue. The certification gave manufacturers a simple target and shoppers a shorthand label.
As gaming PCs grew more power hungry, the labels became more visible. Bronze became common in entry gaming builds, Gold became the default recommendation for many midrange and high-end builds, and Platinum or Titanium moved into premium workstations, quiet rigs, and compact systems where heat is harder to remove. The newer ATX 3.0 and ATX 3.1 era added another layer: transient GPU power behavior and native high-power graphics connectors now matter alongside efficiency.
Why it works this way
A PSU is usually most efficient somewhere in the middle of its load range, not at 5% load and not pinned near maximum output. That’s why buying far too much wattage isn’t automatically better. A 1000W unit in a PC that idles at 55 watts and games at 300 watts may spend much of its life in a lighter-load zone. It’ll still work if it’s a good unit, but the efficiency curve matters.
This is also why a label can’t replace proper sizing. A Gold 650W power supply can be a bad pick for a graphics card that needs more headroom, while a quality Gold 1000W unit can be sensible for a high-end GPU, a power-hungry CPU, and future upgrades. If you’re building around a modern card, our modular PSU gaming PC guide covers cable management and connector layout, not just wattage.
Load behavior is the detail many builders miss. A PC isn’t drawing its maximum rating all day. It may idle below 100 watts, jump during a game launch, settle into a GPU-heavy load, then spike again during a render or shader compile. A quality PSU handles those swings while staying stable, efficient, and reasonably quiet. The badge helps, but the platform and protections do plenty of work behind the scenes.
When you’d want this
You’d care most about 80 Plus when the PC runs many hours per week, sits in a warm room, uses a compact case, or powers expensive hardware. A gaming PC pulling 450 to 650 watts under load benefits more from a good efficiency curve than a tiny home office box that spends most of its day near idle. Quiet builders care too, because less heat often gives the fan less work to do.
A Gold-certified unit such as the be quiet! Pure Power 13 M 1000W makes sense for a build with an overclocked GPU or a high transient-load graphics card. At $139.90 with a 4.8 rating, it lists ATX 3.1 support, PCIe 5.1 GPU support, LLC technology, a single rail design, and a semi-passive 120mm be quiet! fan. That’s a stronger story than the Gold label alone.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.
The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
What to look for in an 80 Plus PSU
Start with wattage, platform generation, and connectors. For a modern gaming PC, ATX 3.1 and PCIe 5.1 readiness can matter if your GPU uses newer cabling. Fully modular cables help in small cases and clean showcase builds, while semi-modular units can still be fine if the fixed cables are ones you’ll use anyway. SFX sizing, like on the Corsair SF750, is important only if your case needs that smaller PSU format.
Then compare the efficiency tier against price. Gold is often the sensible everyday target, Platinum can be worth paying for in a compact, quiet, or premium build, and Bronze can still be acceptable in a low-cost system if the PSU comes from a credible line. Don’t buy by badge alone. Check warranty length, protections, cable count, GPU connector support, and whether the fan mode matches your noise goals.
For a gaming PC, also count the cables before you buy. A PSU can have enough wattage on paper but still be awkward if it lacks the connector type your graphics card expects. Modular units make unused cables disappear, which improves airflow and makes the build easier to service. That’s not glamorous. It’s the difference between a neat PC and one you’re annoyed to open.
Common misconceptions
The biggest misconception is that 80 Plus means a PSU is safe, quiet, or high quality. It doesn’t. It means the unit met efficiency targets under defined conditions. A power supply can be efficient and still have cables you dislike, a fan profile you hear too often, or a wattage rating that doesn’t fit your graphics card.
Another misconception is that a higher tier always saves enough money to justify the price. Sometimes it does, especially on a system that runs all day. Often, the electric bill difference between Gold and Platinum is modest for a normal gaming PC. Tiny gains. Real, but tiny. Buy the higher tier when it also brings the form factor, noise profile, connectors, and build features you need.
Frequently asked
Is 80 Plus Gold enough for a gaming PC?
Yes, 80 Plus Gold is enough for most gaming PCs if the PSU has the right wattage, GPU connectors, and platform support. It’s usually a strong balance of efficiency and price. For high-end graphics cards, don’t stop at the label; confirm ATX 3.1 or the exact PCIe power cable requirements.
Does 80 Plus Platinum make my PC faster?
No, a Platinum label doesn’t increase frame rates or CPU performance. It reduces conversion loss compared with lower tiers at the measured load points. You’ll mainly notice the benefit through lower waste heat, potential noise reduction, and slightly lower wall power draw.
Should I buy more wattage to get better efficiency?
Not automatically. PSUs have efficiency curves, and oversizing too far can put normal use at a lighter part of that curve. Choose enough wattage for your CPU, GPU, drives, fans, and upgrade plans, then pick a quality unit in that range.
Is Bronze bad for budget builds?
Bronze isn’t automatically bad. A reputable Bronze PSU with proper wattage can be safer than a no-name higher-label unit with poor support and questionable cables. For gaming builds with expensive GPUs, though, Gold is usually easier to recommend because the price gap is often reasonable.
What matters besides the 80 Plus rating?
Connector support, warranty, protection features, cable quality, fan behavior, physical size, and platform generation all matter. For small builds, SFX sizing and modular cables can be decisive. For new GPUs, ATX 3.1 and PCIe 5.1 readiness may matter more than moving one efficiency tier higher.
