You bought a new graphics card, plugged it in, and now the box art keeps shouting “ATX 3.1” and “PCIe 5.1 ready” at you. If you’re not sure what any of that means, you’re in good company. ATX 3.1 is the newest revision of the power supply standard that governs how the unit inside your case feeds every other part, and it exists mostly to keep modern GPUs from tripping over their own power spikes. It’s a quiet spec that suddenly matters a lot once you’re pushing a 300-watt-plus card.
This guide breaks down what changed, why it changed, and when you actually need a unit that carries the badge. For picks, our roundup of the best ATX 3.1 power supply 2026 and our best 1000W PSU 2026 shortlist both stick to compliant units, so you don’t have to decode the fine print yourself.
The short answer
ATX 3.1 is an updated power supply specification from Intel that refines the ATX 3.0 rules for handling sudden power spikes from high-end graphics cards and standardizes the 12V-2×6 connector, the slightly revised version of the 12VHPWR plug used by recent GPUs. In plain terms, an ATX 3.1 unit is built to shrug off the brief current surges a modern GPU throws, up to twice its rated draw for microseconds, without shutting down or stressing the connector. If your build has a current-generation card, this is the standard you want your PSU to meet.
The Corsair SF750, a fully modular SFX unit at $159.99 with an 80 Plus Platinum rating, is a compact example of a compliant design that’s also PCIe 5.1 ready, and it holds a 4.1-star owner rating.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.
The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.

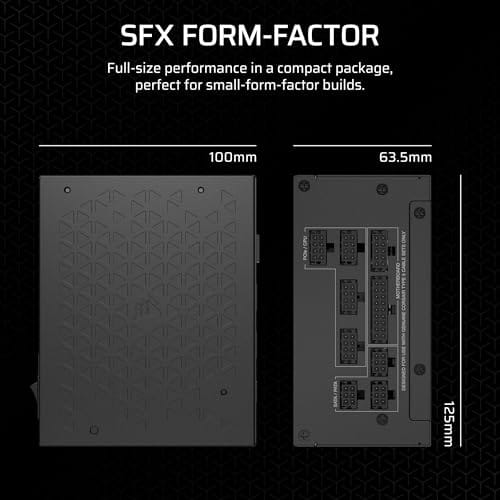

Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
The longer explanation
Every power supply promises a wattage, say 850W or 1000W. But that number describes sustained output, not what happens during a millisecond-long spike. Modern GPUs draw power in bursts. A card rated at 300 watts can momentarily pull far more as its clocks jump, and older supplies sometimes read those spikes as a fault and cut power, killing your session. ATX 3.0 was Intel’s answer, defining how much transient load a compliant unit has to absorb. ATX 3.1 tightens those definitions and folds in the connector revision.
The headline requirement is transient tolerance. An ATX 3.1 unit must handle excursions up to 200 percent of its total rated power for very short windows, and its GPU rail must tolerate similar bursts on the graphics connector alone. Alongside that sits the 12V-2×6 connector, which reshapes the contact pins and sense pins of the earlier 12VHPWR plug so a not-fully-seated cable is less likely to overheat. Same wattage capability, safer physical interface. That’s the gist of the update.
There’s a practical payoff to all this. Because the standard forces a supply to ride out spikes gracefully, you can often size your unit a little tighter than the old rule-of-thumb suggested. A compliant 750-watt supply that holds voltage during a 200 percent excursion is doing real work that a bigger, older unit might fumble. That’s why reviewers now talk less about raw wattage and more about how a supply behaves under a spiky load. The number on the box is only half the story.
History: how we got here
For two decades the ATX standard barely changed in ways that end users noticed. Then GPUs got hungry and spiky. The RTX 30-series exposed the transient-load problem, tripping protection circuits on supplies that were technically powerful enough. Intel responded with ATX 3.0 in 2022, which introduced the transient rules and the original 12VHPWR connector. That connector then earned a reputation for melting when users didn’t seat it fully.
ATX 3.1 arrived in 2024 as the cleanup pass. It swapped 12VHPWR for the sturdier 12V-2×6, dialed in the transient spec, and became the version most reputable brands now certify against. So when you see the 3.1 badge, you’re really seeing the lessons learned from the first rocky rollout baked into a more mature standard.
Why it works this way
The design leans on physics and margin. Capacitors inside the unit act as a reservoir, storing enough energy to cover the microsecond spike so the rail voltage doesn’t sag. The spec forces manufacturers to size that reservoir and the protection circuitry generously, which is why a genuinely compliant 750-watt unit can behave more calmly under a 400-watt GPU than an older 850-watt one. It’s about response speed, not just headline capacity.
The connector redesign follows the same logic. By shortening the sense pins on the 12V-2×6, the plug only delivers full power when it’s properly seated, and it signals the card to throttle if it isn’t. That’s a safety interlock born from real failures, engineered so a small user error doesn’t become a burnt cable.
There’s also an efficiency angle baked in. ATX 3.1 keeps the tightened idle and light-load efficiency targets introduced in the 3.0 era, which matters because a gaming PC spends most of its life sitting at the desktop, not maxed out in a game. A unit that wastes less power at 20 or 50 watts of draw runs cooler and quieter during all those browsing hours. So the standard isn’t only about surviving spikes. It’s about behaving well across the whole range of loads a real machine sees in a day.
When you’d want this
You want ATX 3.1 any time you’re running a current-generation graphics card, especially anything drawing 250 watts or more. If you’re building around a modern high-end GPU, a compliant unit saves you the adapter dongle and the nagging worry about a spiky rail. It’s also the right call for a future-proof build, since the next few GPU generations will assume this standard exists. Our best PSU for 9800X3D guide walks through pairing a compliant unit with a modern gaming chip.
If you’re running an older mid-range card that sips 150 watts, you technically don’t need it, though there’s little reason to avoid it on a new build. For higher-wattage systems, the be quiet! Pure Power 13 M is a 1000W ATX 3.1 unit with 80 Plus Gold certification, PCIe 5.1 support, and a semi-passive 120mm fan, priced at $139.90 with a strong 4.8-star owner rating.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.
The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
What to look for in an ATX 3.1 power supply
Start with the badge itself, then confirm the connector is 12V-2×6 rather than the older plug. Check the efficiency rating next: 80 Plus Gold covers most builds, while Platinum, like the Corsair SF750 carries, trims a little more heat and noise. Match the wattage to your GPU with roughly 150 to 250 watts of overhead for spikes and future upgrades. Fully modular cabling keeps the case tidy, and a semi-passive fan mode, where the fan stops under light load, keeps things quiet. Form factor matters too, so pick SFX only if you’re in a small case and ATX for a standard tower.
Common misconceptions
The biggest myth is that ATX 3.1 means more watts. It doesn’t. A 750W ATX 3.1 unit outputs the same sustained 750 watts as a 750W ATX 2.x unit. What changed is how it behaves during spikes and which connector it carries. Another myth is that you must upgrade an existing working supply the moment 3.1 exists. You don’t. If your current unit runs your current card without shutdowns, it’s fine. The standard matters most at purchase time for a new high-end GPU.
People also assume the 12VHPWR melting stories apply to every new PSU. In practice, the 12V-2×6 revision on ATX 3.1 units specifically addresses that failure mode. Seat the cable until it clicks and the risk drops sharply.
One last mix-up worth clearing. Some shoppers think PCIe 5.1 ready and ATX 3.1 are the same thing. They’re related but distinct. ATX 3.1 governs the whole supply’s behavior, while PCIe 5.1 ready describes the GPU power connector’s readiness for the newest card spec. A good unit like the Corsair SF750 carries both labels, but seeing one doesn’t guarantee the other. Read the listing rather than trusting a single badge.
Frequently asked
Do I need ATX 3.1 for my current PC?
Only if you’re buying or upgrading to a current-generation high-power GPU. If your existing supply runs your card without random shutdowns, there’s no urgency. For any new build, though, choosing 3.1 is the sensible default.
What’s the difference between ATX 3.0 and ATX 3.1?
ATX 3.1 refines the transient power rules and replaces the 12VHPWR connector with the safer 12V-2×6 design. Think of it as the polished version of 3.0 after the first connector proved troublesome. Functionally the two are close, but 3.1 is the one to prefer now.
Will an ATX 3.1 PSU work with an older GPU?
Yes. These units are backward compatible and ship with standard PCIe cables alongside the 12V-2×6 plug. You can run an older card today and be ready for a newer one later without buying a second supply.
How many watts should an ATX 3.1 unit have?
Size it to your GPU and CPU with headroom. A 750-watt unit suits most single-GPU gaming builds, while 850 to 1000 watts fits higher-end cards. The be quiet! Pure Power 13 M at 1000W covers demanding systems comfortably.
Is the 12V-2×6 connector safe now?
It’s much safer than the original 12VHPWR because the redesigned sense pins won’t deliver full power unless the plug is fully seated. Push it in until it clicks, avoid tight cable bends right at the plug, and you’ll rarely have an issue.
