Small form factor builds have exploded, and the power supply is where a lot of them get tripped up. An SFX unit measures just 125mm wide against the 150mm of a standard ATX supply, which is what lets it disappear into a compact case that a full-size PSU would never fit. But size is only half the story. You still need clean, stable wattage, modern connectors for current graphics cards, and a fan that doesn’t scream under load. That’s a lot to ask from a smaller box, and it’s why picking the right unit matters more here than in a roomy tower.
We researched compact and modular power supplies with real listings, verified prices, and owner ratings, weighing efficiency ratings, ATX 3.1 support, and noise behavior. If your build has room for a larger unit, our guide to the best 850W PSU options covers standard-size choices, and gamers spec’ing a fresh rig should also read our roundup of the best power supply for a gaming PC. Below, the focus is on compact-friendly and high-efficiency units, including a genuine SFX platform and several strong modular supplies you can pair with a small chassis or a mainstream tower.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.

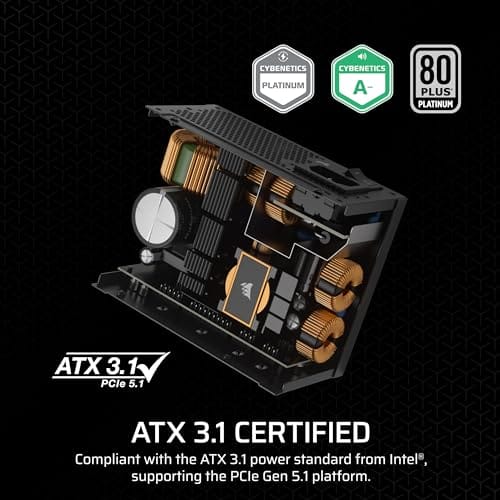

The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.

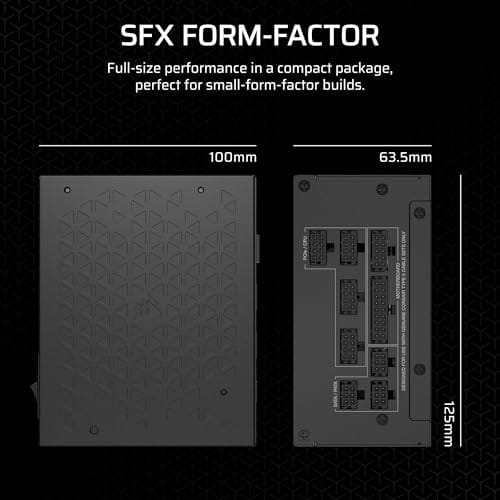

Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.
The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
Pros
- ATX 3.1 native readiness handles 12V-2x6 transient spikes on modern RTX 40and 50 series GPUs.
- 80 Plus Platinum plus Cybenetics Lambda A+ signals strong efficiency and low acoustic output.
- GaN MOSFETs and large ROG heatsinks target lower internal temperatures than reference platforms.
- Dual ball bearing fan and 0dB mode balance longevity with silent light-load operation.
- Long warranty at this eficiency tier reduces long-term ownership risk for high-end builders.
Cons
- Limited owner feedback at time of writing, so long-term coil whine and ripple data is thin.
- 1000W is overkill for mid-range GPUs like an RTX 4060or RX 7600 class card.
- Detailed specs including cable count, rail layout, and dimensions are not specified in source data.
The ROG Strix 1000W Platinum is a high-end ATX 3.1 fully modular PSU aimed at builders pairing a recent flagship or near-flagship GPU with a mainstream to high-end CPU. With 80 Plus Platinum and Cybenetics Lambda A+ ratings, it targets buyers who care about efficiency, acoustics, and transient headroom rather than the cheapest wat-per-dollar option.
The defining feature is the GaN MOSFET topology paired with ASUS' GPU-first voltage sensing. ASUS claims up to 30% better efficiency and up to 45% improved voltage delivery to the graphics card, which should translate into steadier rail behavior during GPU power spikes. Actual ripple and load-regulation numbers are not specified in source data.
Trade-offs are typical at this tier. 1000W is generous for a single RTX 4070 or 4080 class card but leaves less margin for dual high-TGP GPUs, which are rare anyway. Cable length, connector count, and dimensions are not specified, so case fitment in compact ATX or SFF chassis should be verified against the official datasheet before purchase.
Buy this if you are building a high-end ATX system around an RTX 40 or 50 series GPU and want ATX 3.1 transient tolerance with quiet 0dB behavior at idle. Skip this if your GPU sits below 250W TGP, since a 750W Gold unit will cover that load with less spend.
Standard and eficiency: ATX 3.1 compliant with 80 Plus Platinum certification and Cybenetics Lambda A+ acoustic rating. This pairing indicates high efficiency across typical 20to 100 percent load bands and low measured fan noise, which matters for builds targeting sub-30 dBA idle acoustics.
GPU pairing: 1000W total capacity leaves comfortable transient headroom for a single 320 to 450W TGP GPU such as an RTX 4080Super or RTX 4090class card. ATX 3.1 and 12V-2x6 readiness address the power excursion spec that olderATX 2.x units can trip on.
Cooling and acoustics: Uses a dual ball bearing fan with 0dB technology for passive operation under light gaming or desktop loads. ROG heatsinks over primary switching components target lower component temperatures than reference designs. Exact fan size, curve, and dB ratings are not specified in source data.
Cabling and chassis fit: Fully modular cabling reduces clutter in mid-tower and full-tower ATX builds. Exact PSU length, native 12V-2x6 cable inclusion, PCIe 8-pin count, SATA count, and Molex count are not specified in source data, so confirm against the officialASUS spec sheet before committing to compact cases.
Pros
- Native 12V-2x6 connector avoids janky adapter setups on RTX 40 and 50 series GPUs.
- ATX 3.1 spec resists PCIe 5.1 transient spikes thatip cheaper PSUs into shutdown.
- Fully modular design simplifies cable management and reduces unused cable clutter in the case.
- Cybenetics Gold eficiency translates to lower idle draw and quieter fan behavior under mixed loads.
- Low-noise tuning and flexible embossed cables suit quiet-focused ATX builds.
Cons
- Limited owner feedback at time of writing makes long-term reliability hard to verify.
- 1000W is overkill for mid-range builds pairing with an RTX 4070 or below.
- Corsair does not publish specifics like OEM platform, fan bearing, or waranty term in the source listing.
The Corsair RM1000x is a high-end 1000W ATX 3.1 PSU aimed at builders running current-gen NVIDIA and AMD GPUs that pull heavy transient loads. Fully modular cabling and a native 12V-2x6 connector target buyers assembling RTX 4080, 4090, or upcoming 5080 class rigs where adapter dongles are a known pain point.
The defining feature is ATX 3.1 with PCIe 5.1 readiness paired with the direct 12V-2x6 cable. This maters because modern GPUs can briefly spike well above rated TGP, and olderATX 2.x units often shut down under those excursions. Cybenetics Gold efficiency up to 91% suggests low fan ramp at typical gaming loads based on category norms.
Trade-offs are typical at this wattage. 1000W is more than a single-GPU RTX 4070 or 4070 Super build needs, so you pay for headroom you may not use. The source listing does not specify OEM platform, hold-up time, ripple figures, waranty length, or fan bearing type, so independent bench data is worth checking before purchase.
Buy this if you are pairing a 300W plus GPU with aRyzen 9 or Core i9 and want native 12V-2x6 with transient spike compliance. Skip this if your GPU draws under 220W, where a 750W or 850W unit covers you with room to spare.
ATX standard and PCIe support: The unit isATX 3.1 compliant with PCIe 5.1 readiness, which is the spec written to handle GPU power excursions up to roughly 3x rated TGP for short durations. That makes it a match for RTX 40 and 50 series cards without derating the PSU.
GPU connector: A native 12V-2x6 cable runs directly from the PSU to the GPU, no4x8-pin to 16-pin adapter. This is the updated H++ pin design that mitigates the seating and thermal issues seen on early 12VHPWR implementations.
Wattage pairing: 1000W is the sensible flor for RTX 4090 and future5090 class GPUs paired with a 170W plus CPU like the Core i9-14900K or Ryzen 9 9950X3D. For a 4080Super or 5080 tier build, it leaves comfortable headroom for overclocking and transients.
Efficiency and cabling: Cybenetics Gold rated up to 91% efficiency, with fully modular embossed cables and low-profile combs. Modular design lets you omit unused SATA and Molex runs, which helps airflow in mid-tower ATX cases with restricted PSU shrouds.
Pros
- 80 PLUS Gold efficiency rating is clearly stated (at 115Vac input).
- Fully modular design helps reduce cable clutter and improves build serviceability.
- Smart Zero Fan feature prioritizes low noise at idle and light loads.
- Compact 140mm depth is helpful for cases with limited PSU shroud space.
- 10-year warranty is listed, which is strong for this wattage class.
Cons
- PCIe and CPU power connector counts and types are not specified in the listing, so GPU compatibility needs verification.
- Fan size is inconsistent across the listing (12cm/120mm and 140mm both mentioned).
- ATX standard compliance (ATX 3.0/3.1, 12VHPWR or 12V-2x6) is not specified, which matters for newer GPUs.
- Protection features are mentioned but not itemized (OCP/OVP/OTP/OPP/UVP/SCP not specified).
The Thermaltake Toughpower GF1 850W is a mid-range, fully modular ATX power supply aimed at mainstream enthusiast builds that want solid efficiency and a quieter idle profile. It is a sensible fit for single-GPU gaming PCs and creator workstations where stable power delivery and tidy cabling matter more than chasing niche features.
The defining behavior here is its Smart Zero Fan mode, where the fan stays off until the PSU reaches a certain load percentage, which is a common approach to reduce idle and desktop noise. With 850W available and a single +12V rail using a DC-to-DC design, this class of unit is typically used for higher-draw CPUs and GPUs without feeling constrained by power headroom, assuming the included cable set matches your hardware needs.
Physically, the unit is listed at 150mm (W) x 86mm (H) x 140mm (D), and that shorter 140mm depth can simplify routing in cases where the PSU area is tight or the shroud is crowded with cables. Cooling is described as fluid dynamic bearing, but the fan size is inconsistent in the listing (12cm/120mm is stated in the specs, while 140mm is mentioned in the features).
The main trade-offs are around missing details that experienced builders often check first. The listing does not specify the exact connector mix (CPU EPS, PCIe 8-pin, SATA, peripheral), and it also does not state whether it targets newer ATX 3.x requirements or includes 12VHPWR/12V-2x6 cabling, which can matter depending on your GPU.
Buy this if you want a compact, fully modular 850W Gold PSU with a fan-stop mode and a long listed warranty. Skip this if you need confirmed ATX 3.x support or a specific connector layout and cable type, since those details are not provided in the listing.
| Model / P/N | MODEL: TPD-850AH2FLG; P/N: PS-TPD-0850FNFAGU-P |
| Wattage | 850W (max output capacity listed as 850W) |
| Efficiency | 80 PLUS Gold (listed as meeting Gold at 115Vac input) |
| Modularity | Fully modular |
| Rail design | Single +12V rail (high amperage) with DC-to-DC design |
| PFC | Active PFC |
| Fan and noise mode | Smart Zero Fan; Cooling system listed as 12cm FDB fan; features also mention 140mm fluid bearing fan (listing discrepancy) |
| Dimensions | 150mm (W) x 86mm (H) x 140mm (D) |
| Input voltage | 100-240V |
| Input frequency | 50Hz/60Hz |
| Power Good signal | 100-150 msec |
| Hold-up time | 17 msec |
| Operating temperature | +5°C to +40°C |
| Operating humidity | 20% to 85% |
| Storage temperature | -40°C to +55°C (listed as 40°C to plus 55°C) |
| Storage humidity | 10% to 95% |
| Low-power states | Intel C6/C7 state and ErP Ready |
| Protections | Built-in industrial grade protections (types not specified) |
| Connectors | Not specified in the listing |
| ATX version / PCIe 5 power | Not specified in the listing |
| Warranty | 10-year warranty (listed) |
| Safety approvals | FCC/cTUVus |
PC and case fit: The PSU is listed at 140mm depth, which is helpful in many mid-tower layouts and tighter PSU shrouds where extra cable slack can become a problem.
CPU and GPU pairing: An 850W unit is commonly chosen for higher-end single-GPU systems, but exact suitability depends on your CPU and GPU power targets and transient behavior. Use the PSU headroom to avoid running near maximum output under sustained workloads.
Power connectors: The listing does not specify the number or type of PCIe and EPS cables, and it does not mention 12VHPWR or 12V-2x6. Before buying, confirm the included cable set matches your GPU (and any required adapters) and your motherboard CPU power inputs.
Acoustics and airflow planning: Smart Zero Fan keeps the fan off at lighter loads, which can make a desktop or low-load workstation noticeably quieter. Ensure your case has reasonable ventilation, since fan-stop designs rely more on passive heat dissipation at idle.
Power behavior and uptime: The spec sheet lists a 17 msec hold-up time and a 100-150 msec power-good signal, which are relevant for stability during brief input dips. If you use a UPS, match it to your system draw and consider a sine-wave unit for best compatibility.
Who this guide is for
This guide is for builders putting together a small or mid-size PC who care about a quiet, reliable power supply. Maybe you’re squeezing a powerful GPU into a tiny case and you need the compact footprint an SFX unit gives you. Maybe you want a fully modular supply so your cables stay tidy and airflow stays clean. Either way, you want something that handles a modern graphics card without coil whine or a fan that never settles down.
It’s less useful if you’re powering a basic office box that draws under 300W, where a cheaper unit will do. We’re also not covering redundant server supplies or fanless passive units here. What we vetted are consumer power supplies aimed at gamers and builders, spanning a true SFX platform, a couple of quiet Gold-rated modular units, and Platinum-class options for people who want the highest efficiency they can buy.
What to look for in an SFX power supply
Efficiency certification tells you how much wall power actually reaches your components. An 80 Plus Gold unit like the be quiet! Pure Power 13 M wastes less as heat than a basic supply, while 80 Plus Platinum, which the Corsair SF750 and ASUS ROG Strix both carry, sits a rung higher. Higher efficiency means less heat, which usually means a quieter fan and a longer life. Wattage headroom matters too. Pick a supply that comfortably covers your GPU and CPU under load with 100W to 200W to spare, so the fan spends more time in its quiet zone.
Then check connectors and standards. ATX 3.1 compliance and PCIe 5.1 readiness, which every unit in this list advertises, mean the supply is built for the transient power spikes modern GPUs throw at it, often through a native 12V-2×6 connector like the one on the Corsair RM1000x. Fully modular cabling lets you use only the leads you need, which is close to mandatory in a cramped SFX case. And look for a semi-passive or Zero RPM mode, where the fan stops entirely at low load, so the machine runs silent when you’re just browsing.
How we evaluated
We researched a spread of modular power supplies with real prices and owner ratings, then narrowed to five that cover a genuine range of budgets and use cases. We didn’t bench them on a lab load setup, and we won’t claim otherwise. Instead we weighed each on efficiency rating, ATX 3.1 and PCIe 5.1 support, noise behavior as owners describe it, warranty length, and the price you actually pay against what you get.
Value drove the ranking. A Platinum unit that costs more has to earn it with efficiency, build quality, or a longer warranty, like the 10-year coverage on the ASUS ROG Strix. We also gave weight to compact suitability, since this guide leans toward small builds, and to quiet operation, because a screaming fan ruins an otherwise great machine. The five picks below sit at deliberately different price points so you can see what each tier buys.
Our top picks
Best SFX Overall: Corsair SF750 Platinum
At $159.99 with a 4.1 owner rating, the Corsair SF750 is the pick built specifically for small form factor cases. This is the genuine SFX unit in the group, fully modular, 80 Plus Platinum rated, ATX 3.1 compliant, and PCIe 5.1 ready, with a mounting bracket in the box so it also fits ATX cases if you move it later. For a compact build packing a strong GPU, this is the answer, because it delivers 750W of clean, efficient power from a body small enough to tuck into a mini-ITX chassis.
The tradeoff is wattage. At 750W it’s the lowest-capacity unit here, so a build with a very hungry flagship card and an overclocked CPU might want more headroom. It’s also priced like a premium small unit, since SFX platforms cost more per watt than full-size supplies. But for the vast majority of compact gaming rigs, 750W of Platinum-rated power is exactly right, and the low-noise design keeps a tiny case from turning into a hot, loud box. Owner sentiment at 4.1 stars reflects a well-regarded standard in the SFX space.
Best Budget: Thermaltake GF1 850W Gold
The Thermaltake GF1 is the value pick at $88.99 with a 4.0 rating. It’s a fully modular 850W unit, 80 Plus Gold certified, with an ultra-quiet fan and a Zero RPM mode that keeps it silent at low load. For a builder who wants solid modern wattage without paying Platinum money, this covers a mainstream gaming rig with a mid-range or upper-mid GPU comfortably. The 850W rating gives real headroom, and the modular cabling keeps a standard tower tidy.
This one’s a full-size ATX supply, not SFX, so it won’t fit the tightest compact cases, and that’s the catch if you’re set on a mini-ITX build. Its 4.0 rating is the lowest in the group, which usually points to a unit that’s dependable rather than exceptional. But at under $90 for 850W of Gold-rated, fully modular, Zero RPM power, the value is hard to argue with. For a first serious build or a budget-conscious upgrade in a normal tower, it’s the sensible starting point.
Best High Efficiency: ASUS ROG Strix 1000W Platinum
The ASUS ROG Strix 1000W is the enthusiast pick at $217.99 with a strong 4.8 rating. It’s fully modular, 80 Plus Platinum certified, ATX 3.1, and rated Cybenetics Lambda A+ for low noise. What sets it apart is the hardware: GaN MOSFETs for efficient switching, a GPU-first intelligent voltage stabilizer aimed at keeping graphics power steady, and a 10-year warranty that signals real confidence. For a high-end tower with a power-hungry card, this delivers 1000W of clean, quiet, Platinum-grade power.
At over $217 it’s the most expensive unit here, and it’s a full-size ATX supply, so compact-case builders should look at the Corsair SF750 instead. That price also outruns what a modest rig needs. But if you’re building a serious machine and you want efficiency, quiet operation, and a decade of warranty backing, the 4.8 owner rating suggests this one earns its keep. It’s the supply you buy once and forget about through several GPU upgrades.
Best Quiet Modular: be quiet! Pure Power 13 M 1000W
Living up to the brand name, the be quiet! Pure Power 13 M lands at $139.90 with an excellent 4.8 rating. It’s a 1000W supply, 80 Plus Gold certified, ATX 3.1, with a semi-passive 120mm fan that stays off at low load and a single-rail design built for overclocked GPUs. For someone who prizes a near-silent machine, this is the standout, since the fan only spins up when the system genuinely needs cooling. That makes it a great match for a quiet gaming or workstation build.
It’s a full-size ATX unit, so it’s not for the smallest SFX cases, and it’s Gold rather than Platinum, meaning slightly lower efficiency than the ASUS or Corsair SF750. But at $139.90 for 1000W of quiet, single-rail Gold power that handles overclocked cards, the balance of price, capacity, and noise is genuinely appealing. The 4.8 owner rating puts it among the best-liked picks in this list, and for a silent-first builder it’s the one to beat.
Best Value 1000W: Corsair RM1000x
The Corsair RM1000x rounds out the picks at $166.24 with a 4.4 rating. It’s a fully modular 1000W supply, ATX 3.1, PCIe 5.1 ready, with Cybenetics Gold efficiency, a low-noise fan, and a native 12V-2×6 connector so you can plug a current GPU straight in without an adapter mess. For a mainstream to high-end tower that wants proven reliability and modern connectors at a fair price, this is a smart middle-ground pick between the budget Thermaltake and the premium ASUS.
Like most of this list it’s a full-size ATX unit, so compact builders stick with the SF750. It’s Gold rather than Platinum, so it trails the top efficiency picks by a hair. But the RM line has a long reputation for dependable power, and the native 12V-2×6 connector removes a real headache for anyone running a modern high-draw card. At $166.24 for 1000W with those connectors and a 4.4 rating, it’s a balanced choice that few builders would regret.
Buying mistakes to avoid
The biggest error in a small build is grabbing a full-size ATX supply and hoping it fits. It won’t, in a true SFX case, so confirm the form factor before you buy, and reach for a genuine SFX unit like the Corsair SF750 if space is tight. The reverse mistake is paying the SFX price premium when you have a normal tower with plenty of room, where a full-size unit gives you more watts per dollar.
People also underbuy on wattage, then wonder why the fan roars under load or the system trips off during a spike. Leave 100W to 200W of headroom above your peak draw. Don’t skip the connector check either. Modern GPUs want a 12V-2×6 lead, and a native connector like the RM1000x carries beats a daisy-chained adapter for safety and tidiness. Finally, don’t chase Platinum efficiency on a machine that sips power, since the extra cost never pays itself back on a low-draw rig.
Bottom line
If your build is genuinely small form factor, the Corsair SF750 at $159.99 is the clear pick. It’s the only true SFX unit here, it’s Platinum rated and fully modular, and it delivers 750W of clean power from a body that fits where nothing else will. For most compact gaming rigs, that’s the right call and the end of the search.
For a standard tower, match the unit to your priorities. The Thermaltake GF1 at $88.99 is the budget workhorse, the be quiet! Pure Power 13 M at $139.90 is the near-silent 1000W choice, the Corsair RM1000x at $166.24 balances price and modern connectors, and the ASUS ROG Strix 1000W at $217.99 is the premium, decade-warranty option for a high-end machine. Check your case size, leave wattage headroom, and confirm the connectors, and any of these will power your rig for years.
Common questions
What makes an SFX power supply different from ATX?
An SFX unit is physically smaller, about 125mm wide versus 150mm for standard ATX, so it fits compact and mini-ITX cases where a full-size supply won’t. The Corsair SF750 is the true SFX pick here. Electrically they do the same job, but SFX platforms pack the same wattage into less space, which usually costs a bit more per watt.
Is 750W enough for a small form factor gaming PC?
For most compact builds, yes. A 750W Platinum unit like the Corsair SF750 comfortably powers a strong GPU and a modern CPU with headroom to spare. Only a flagship card paired with a heavily overclocked processor would push you toward more. Match the wattage to your actual components and leave a little margin for spikes.
Do I need ATX 3.1 and PCIe 5.1 support?
If you’re running a current graphics card, it helps. ATX 3.1 and PCIe 5.1 readiness, which every unit in this guide carries, means the supply is built for the transient power spikes modern GPUs produce. A native 12V-2×6 connector, like the one on the Corsair RM1000x, also saves you from adapter clutter. For older cards it matters less.
What does 80 Plus Platinum actually get me?
Platinum certification means higher efficiency than Gold, so less wall power is wasted as heat. That translates to a cooler, often quieter unit and slightly lower running costs. The Corsair SF750 and ASUS ROG Strix are the Platinum picks here. On a high-draw machine the difference adds up, but on a low-power rig the premium rarely pays for itself.
Are fully modular power supplies worth it?
In a small case, close to essential. Fully modular cabling lets you connect only the leads you use, which keeps a cramped SFX build tidy and improves airflow. Every unit in this guide is fully modular. Even in a larger tower it makes cable management easier and the finished build cleaner, so most people find it worth the small price bump.
