Your PC is humming along, maybe mid-game or halfway through a render, and then it just dies. No blue screen, no warning, no shutdown chime. The fans stop, the screen goes black, and a second later the system might even try to boot again on its own. When a machine drops power like that with nothing logged, the power supply is one of the first suspects worth ruling out. A random shutdown tied to the PSU usually points to voltage that sagged under load, a protection circuit that tripped, or a unit that’s simply worn past its useful life.
This guide walks through the causes we researched most often behind sudden power loss, from loose cables to failing capacitors, and where a replacement unit actually makes sense. If your search eventually lands on a new supply, our roundups of the best 1000W PSU picks and the best modular PSUs for gaming builds cover the units owners trust for high-draw rigs. For now, let’s diagnose before you spend a dime.
First check the obvious (the 30-second check)
Before you crack the case open, do the quick stuff. Is the wall outlet solid? Plug a lamp or phone charger into the same socket and confirm it holds. Surge protectors and cheap power strips fail more often than people think, so try the PSU cable straight into the wall. Reseat the main power switch on the back of the unit, then confirm the 24-pin and the 8-pin CPU connectors are fully clicked in. A connector that’s 90 percent seated will still boot and then cut out under load.
Also check the room. If the shutdowns cluster around hot afternoons or long gaming sessions, heat is in the mix and the PSU may be one link in a bigger thermal chain. Note when the crashes happen, idle versus load, because that timing tells you a lot about which cause to chase first.
One more free check: open the BIOS and look at the voltage readings, or run a monitoring tool like HWiNFO in Windows. Watch the 12V rail while you push the system. A healthy rail holds within a few percent of 12 volts under load. If it dips toward 11.4 or bounces around wildly the moment a game loads, you’ve got a supply that can’t hold voltage, and that’s your shutdown cause staring back at you in a log.
Cause #1: Undersized or overloaded power supply
The most common PSU-related shutdown isn’t a broken unit at all. It’s a supply that can’t feed the parts you’ve bolted onto it. Modern GPUs pull hard, and cards in the RTX 40 and 50 class throw transient spikes that can briefly double their rated draw for a few milliseconds. If your PSU sits right at its ceiling, those spikes trip the over-power or over-current protection, and the unit shuts everything down to save itself. That’s the crash with no log, because the shutdown is a hardware reflex, not a software event.
Do the math on your real load. A high-end GPU plus an overclocked CPU can spike well past a 650W budget even if the average sits lower. Headroom matters here, and most builders aim for a supply rated 30 to 40 percent above their steady draw so transients have somewhere to go. For a rig with a power-hungry card, a 1000W unit with modern ATX 3.1 and PCIe 5.1 support handles those spikes without flinching. The be quiet! Pure Power 13 M 1000W fits that brief, with 80 Plus Gold efficiency, a single-rail design, a semi-passive 120mm fan, and LLC technology aimed squarely at overclocked GPUs. It carries a 4.8 rating, and the ATX 3.1 spec means it’s built to ride out the transient behavior that trips smaller units.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.

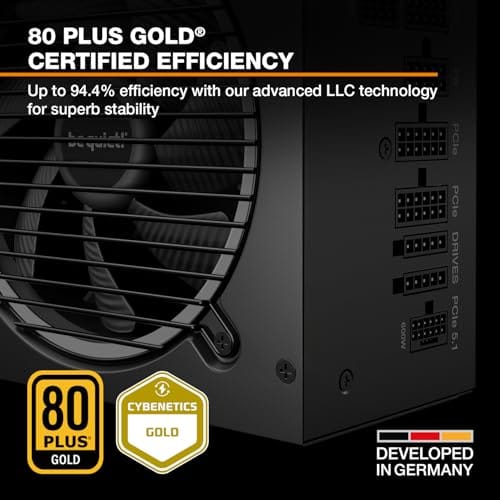

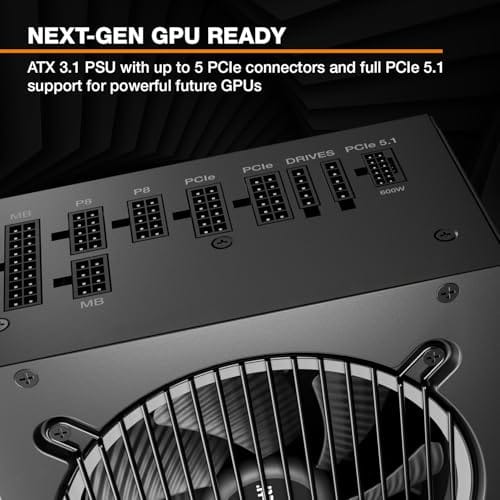

The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
If you upgraded your graphics card recently and the shutdowns started right after, this is very likely your answer. A card swap without a matching supply upgrade is one of the quiet ways people end up here.
Worth knowing: efficiency rating and wattage aren’t the same thing. An 80 Plus Gold or Platinum badge tells you how little energy the unit wastes as heat, not how much power it can deliver. A 650W Platinum supply still tops out at 650W. So don’t let a high efficiency number talk you into an undersized unit. Size for the load first, then chase efficiency for the lower heat and quieter fan that come with it. For a rig pushing a flagship GPU and a fast CPU, that combination of adequate wattage plus a Gold-or-better rating is what keeps the rails steady when a game spikes hard.
Cause #2: Loose, damaged, or daisy-chained cables
Cables cause more mystery shutdowns than dying capacitors do. The 12VHPWR and 12V-2×6 connectors on newer GPUs are notorious for needing a firm, fully seated click, and a partial connection can arc, heat up, and cut power under load. Pull the GPU power cable, inspect the pins for browning or melt marks, and reseat it until you feel it lock. Same story for the 8-pin CPU connector up top.
Daisy-chaining is another trap. Many PCIe cables ship with two connectors on one lead, and running a thirsty GPU off a single daisy-chained cable forces too much current down one wire. Owner reports point to this constantly. Run one dedicated cable per 8-pin GPU input instead of splitting a single lead. And only use the modular cables that shipped with your exact PSU. Pinouts differ between brands, and mixing a cable from an old unit into a new one can dump the wrong voltage into your board. That’s a fast way to fry parts, not just crash.
Don’t forget the front-panel connection to the motherboard either. A shorted power switch or a case with a flaky front-panel header can send a phantom power signal that cuts the system mid-session, and it mimics a PSU fault perfectly. If reseating GPU and CPU cables changes nothing, unplug the front-panel power switch leads and jump the two power-on pins with a screwdriver to boot. If the random shutdowns vanish, the fault was the case wiring, not the supply. It’s a five-minute check that saves you from buying a unit you didn’t need.
Cause #3: An aging or failing PSU
Power supplies wear out. The electrolytic capacitors inside dry out over five to eight years, ripple climbs, and the unit starts dropping voltage under exactly the loads it used to handle fine. If your PSU is old, or came free with a budget case years ago, age alone can explain shutdowns that got worse over months. A failing unit often gets louder too, with fan noise, coil whine, or a faint buzz that wasn’t there before. Some owners notice a burnt-plastic smell right before the crashes turn frequent.
Small-form-factor builds feel this sooner because SFX units run hotter in tight cases and have less thermal margin to spare. If you’re in a compact chassis and chasing shutdowns, a quality SFX replacement is worth the swap. The Corsair SF750 (2024) is a fully modular SFX unit with 80 Plus Platinum efficiency, ATX 3.1 compliance, PCIe 5.1 readiness, and an included bracket for mounting in ATX cases. At a 4.1 rating and $159.99, it packs 750W of platinum-grade delivery into the SFX footprint, which is the kind of headroom a cramped build needs to stop tripping protection.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.
The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.
Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
Not sure if the unit itself is the fault? A basic power-supply checker or the paperclip jumper trick confirms the supply powers on, but neither one loads it the way a game does. Those tools just prove the fans spin and the rails read voltage at idle. The real proof is swapping in a known-good unit and seeing if the crashes stop under the same load that killed the old one.
Preventive maintenance
Dust is the silent killer. A clogged PSU fan runs hotter, ages faster, and throttles airflow to the components that need it. Blow the unit out with compressed air every few months, keep the case intake filters clean, and give the supply room to breathe. Don’t cheap out at build time either. A good 80 Plus Gold or Platinum unit from a reputable brand costs a bit more up front and saves you this whole diagnostic mess later. Match wattage to your parts with real headroom, and register the warranty, because quality units carry 7 to 10 year coverage that pays off when a cap finally gives.
Cable management helps more than it looks. Cramming unused modular leads behind the tray traps heat right against the supply, so route only what you use and leave the rest in the box. If you run an overclock, dial it back a notch and watch whether the shutdowns stop, because an aggressive CPU or memory profile can push a borderline supply over its limit. Owners chasing stability on high-draw rigs often land on our list of the best 1000W PSUs for overclocking once they’ve ruled out the cheap fixes.
When it’s not fixable: what to replace
If you’ve reseated every cable, ruled out the wall and the GPU power path, and the shutdowns still hit under load, the supply is the part to replace. There’s no reliable home repair for a PSU. The capacitors and protection circuitry inside sit at mains voltage even when unplugged, and poking around in there is genuinely dangerous. Buy a properly rated unit instead. Size it to your GPU with headroom for transients, pick 80 Plus Gold or better, and choose modular so you’re not stuffing unused cables behind the motherboard tray. If your build stays high-end, our guides to the best 1000W PSUs for high-end GPUs line up the units owners rely on.
Tools and parts needed
You don’t need much. A Phillips screwdriver pulls the PSU mounting screws, compressed air clears dust, and a fresh set of the modular cables that shipped with your replacement unit finishes the job. A cheap multimeter or a dedicated PSU checker helps confirm rails if you want a second opinion, though a known-good swap is still the definitive check. Keep the original box and cables until you’re sure the new unit fixed things.
A few more questions
Can a bad PSU shut down my PC without any warning?
Yes, and that’s the classic symptom. When a rail sags or a protection circuit trips, the unit cuts power instantly to protect the hardware. There’s no time for Windows to log an event, which is why these crashes leave a blank event viewer. Sudden black-screen deaths under load, with nothing recorded, point strongly at power delivery.
How do I know if it’s the PSU and not something else?
Timing and pattern are your clues. PSU shutdowns cluster under heavy load, get worse as the unit ages, and often follow a GPU or CPU upgrade. If the crashes happen at idle too, look at RAM, storage, or overheating first. The cleanest confirmation is borrowing a known-good supply of adequate wattage and seeing if the problem disappears.
Does a higher-wattage PSU fix random shutdowns?
It fixes them when the cause is an overloaded or spiking supply, which is a big share of cases. A 1000W unit gives a high-end GPU the transient headroom a 650W unit can’t, so the protection stops tripping. It won’t help if the real fault is a bad cable, a dying board, or heat, so diagnose the cause before you upsize.
