A high-end GPU pulls transient spikes that a mid-tier power supply just can’t ride out. Plug an RTX 5080 or 5090-class card into a wheezy 650W unit and you’ll meet random shutdowns, coil whine, and the kind of instability that looks like a driver bug but isn’t. A 1000W-class PSU with ATX 3.1 and a native 12V-2×6 connector gives that card the headroom it needs during the millisecond power excursions that trip lesser supplies. That’s the real reason enthusiasts overbuy wattage. It’s insurance, not vanity.
We researched five power supplies across four brands and a wide price band, from an $88.99 850W value unit to a $217.99 platinum flagship. Two of the picks are true 1000W ATX 3.1 units built for exactly this job; the others cover adjacent needs like small-form-factor builds and tighter budgets, and we flag those tradeoffs plainly. If you want the broader landscape first, our roundup of the best 1000W power supplies and our explainer on 80 Plus Gold vs Platinum efficiency both pair well with the picks below. Now the shortlist.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.
The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.

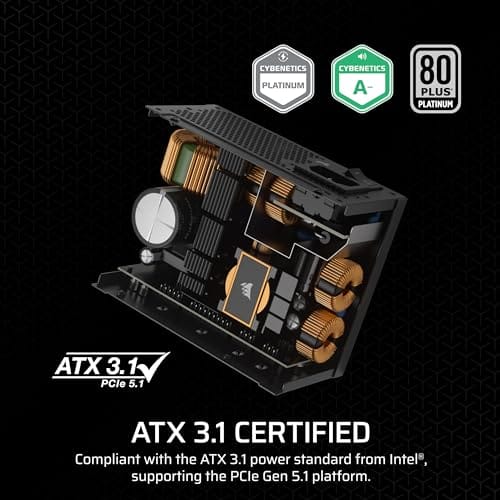

The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.

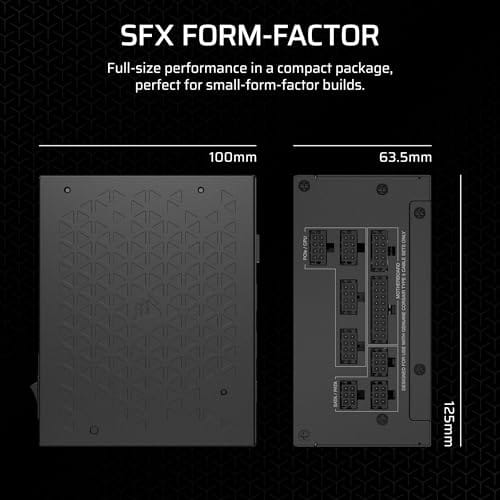

Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.
The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
Pros
- ATX 3.1 native readiness handles 12V-2x6 transient spikes on modern RTX 40and 50 series GPUs.
- 80 Plus Platinum plus Cybenetics Lambda A+ signals strong efficiency and low acoustic output.
- GaN MOSFETs and large ROG heatsinks target lower internal temperatures than reference platforms.
- Dual ball bearing fan and 0dB mode balance longevity with silent light-load operation.
- Long warranty at this eficiency tier reduces long-term ownership risk for high-end builders.
Cons
- Limited owner feedback at time of writing, so long-term coil whine and ripple data is thin.
- 1000W is overkill for mid-range GPUs like an RTX 4060or RX 7600 class card.
- Detailed specs including cable count, rail layout, and dimensions are not specified in source data.
The ROG Strix 1000W Platinum is a high-end ATX 3.1 fully modular PSU aimed at builders pairing a recent flagship or near-flagship GPU with a mainstream to high-end CPU. With 80 Plus Platinum and Cybenetics Lambda A+ ratings, it targets buyers who care about efficiency, acoustics, and transient headroom rather than the cheapest wat-per-dollar option.
The defining feature is the GaN MOSFET topology paired with ASUS' GPU-first voltage sensing. ASUS claims up to 30% better efficiency and up to 45% improved voltage delivery to the graphics card, which should translate into steadier rail behavior during GPU power spikes. Actual ripple and load-regulation numbers are not specified in source data.
Trade-offs are typical at this tier. 1000W is generous for a single RTX 4070 or 4080 class card but leaves less margin for dual high-TGP GPUs, which are rare anyway. Cable length, connector count, and dimensions are not specified, so case fitment in compact ATX or SFF chassis should be verified against the official datasheet before purchase.
Buy this if you are building a high-end ATX system around an RTX 40 or 50 series GPU and want ATX 3.1 transient tolerance with quiet 0dB behavior at idle. Skip this if your GPU sits below 250W TGP, since a 750W Gold unit will cover that load with less spend.
Standard and eficiency: ATX 3.1 compliant with 80 Plus Platinum certification and Cybenetics Lambda A+ acoustic rating. This pairing indicates high efficiency across typical 20to 100 percent load bands and low measured fan noise, which matters for builds targeting sub-30 dBA idle acoustics.
GPU pairing: 1000W total capacity leaves comfortable transient headroom for a single 320 to 450W TGP GPU such as an RTX 4080Super or RTX 4090class card. ATX 3.1 and 12V-2x6 readiness address the power excursion spec that olderATX 2.x units can trip on.
Cooling and acoustics: Uses a dual ball bearing fan with 0dB technology for passive operation under light gaming or desktop loads. ROG heatsinks over primary switching components target lower component temperatures than reference designs. Exact fan size, curve, and dB ratings are not specified in source data.
Cabling and chassis fit: Fully modular cabling reduces clutter in mid-tower and full-tower ATX builds. Exact PSU length, native 12V-2x6 cable inclusion, PCIe 8-pin count, SATA count, and Molex count are not specified in source data, so confirm against the officialASUS spec sheet before committing to compact cases.
Pros
- Native 12V-2x6 connector avoids janky adapter setups on RTX 40 and 50 series GPUs.
- ATX 3.1 spec resists PCIe 5.1 transient spikes thatip cheaper PSUs into shutdown.
- Fully modular design simplifies cable management and reduces unused cable clutter in the case.
- Cybenetics Gold eficiency translates to lower idle draw and quieter fan behavior under mixed loads.
- Low-noise tuning and flexible embossed cables suit quiet-focused ATX builds.
Cons
- Limited owner feedback at time of writing makes long-term reliability hard to verify.
- 1000W is overkill for mid-range builds pairing with an RTX 4070 or below.
- Corsair does not publish specifics like OEM platform, fan bearing, or waranty term in the source listing.
The Corsair RM1000x is a high-end 1000W ATX 3.1 PSU aimed at builders running current-gen NVIDIA and AMD GPUs that pull heavy transient loads. Fully modular cabling and a native 12V-2x6 connector target buyers assembling RTX 4080, 4090, or upcoming 5080 class rigs where adapter dongles are a known pain point.
The defining feature is ATX 3.1 with PCIe 5.1 readiness paired with the direct 12V-2x6 cable. This maters because modern GPUs can briefly spike well above rated TGP, and olderATX 2.x units often shut down under those excursions. Cybenetics Gold efficiency up to 91% suggests low fan ramp at typical gaming loads based on category norms.
Trade-offs are typical at this wattage. 1000W is more than a single-GPU RTX 4070 or 4070 Super build needs, so you pay for headroom you may not use. The source listing does not specify OEM platform, hold-up time, ripple figures, waranty length, or fan bearing type, so independent bench data is worth checking before purchase.
Buy this if you are pairing a 300W plus GPU with aRyzen 9 or Core i9 and want native 12V-2x6 with transient spike compliance. Skip this if your GPU draws under 220W, where a 750W or 850W unit covers you with room to spare.
ATX standard and PCIe support: The unit isATX 3.1 compliant with PCIe 5.1 readiness, which is the spec written to handle GPU power excursions up to roughly 3x rated TGP for short durations. That makes it a match for RTX 40 and 50 series cards without derating the PSU.
GPU connector: A native 12V-2x6 cable runs directly from the PSU to the GPU, no4x8-pin to 16-pin adapter. This is the updated H++ pin design that mitigates the seating and thermal issues seen on early 12VHPWR implementations.
Wattage pairing: 1000W is the sensible flor for RTX 4090 and future5090 class GPUs paired with a 170W plus CPU like the Core i9-14900K or Ryzen 9 9950X3D. For a 4080Super or 5080 tier build, it leaves comfortable headroom for overclocking and transients.
Efficiency and cabling: Cybenetics Gold rated up to 91% efficiency, with fully modular embossed cables and low-profile combs. Modular design lets you omit unused SATA and Molex runs, which helps airflow in mid-tower ATX cases with restricted PSU shrouds.
Pros
- 80 PLUS Gold efficiency rating is clearly stated (at 115Vac input).
- Fully modular design helps reduce cable clutter and improves build serviceability.
- Smart Zero Fan feature prioritizes low noise at idle and light loads.
- Compact 140mm depth is helpful for cases with limited PSU shroud space.
- 10-year warranty is listed, which is strong for this wattage class.
Cons
- PCIe and CPU power connector counts and types are not specified in the listing, so GPU compatibility needs verification.
- Fan size is inconsistent across the listing (12cm/120mm and 140mm both mentioned).
- ATX standard compliance (ATX 3.0/3.1, 12VHPWR or 12V-2x6) is not specified, which matters for newer GPUs.
- Protection features are mentioned but not itemized (OCP/OVP/OTP/OPP/UVP/SCP not specified).
The Thermaltake Toughpower GF1 850W is a mid-range, fully modular ATX power supply aimed at mainstream enthusiast builds that want solid efficiency and a quieter idle profile. It is a sensible fit for single-GPU gaming PCs and creator workstations where stable power delivery and tidy cabling matter more than chasing niche features.
The defining behavior here is its Smart Zero Fan mode, where the fan stays off until the PSU reaches a certain load percentage, which is a common approach to reduce idle and desktop noise. With 850W available and a single +12V rail using a DC-to-DC design, this class of unit is typically used for higher-draw CPUs and GPUs without feeling constrained by power headroom, assuming the included cable set matches your hardware needs.
Physically, the unit is listed at 150mm (W) x 86mm (H) x 140mm (D), and that shorter 140mm depth can simplify routing in cases where the PSU area is tight or the shroud is crowded with cables. Cooling is described as fluid dynamic bearing, but the fan size is inconsistent in the listing (12cm/120mm is stated in the specs, while 140mm is mentioned in the features).
The main trade-offs are around missing details that experienced builders often check first. The listing does not specify the exact connector mix (CPU EPS, PCIe 8-pin, SATA, peripheral), and it also does not state whether it targets newer ATX 3.x requirements or includes 12VHPWR/12V-2x6 cabling, which can matter depending on your GPU.
Buy this if you want a compact, fully modular 850W Gold PSU with a fan-stop mode and a long listed warranty. Skip this if you need confirmed ATX 3.x support or a specific connector layout and cable type, since those details are not provided in the listing.
| Model / P/N | MODEL: TPD-850AH2FLG; P/N: PS-TPD-0850FNFAGU-P |
| Wattage | 850W (max output capacity listed as 850W) |
| Efficiency | 80 PLUS Gold (listed as meeting Gold at 115Vac input) |
| Modularity | Fully modular |
| Rail design | Single +12V rail (high amperage) with DC-to-DC design |
| PFC | Active PFC |
| Fan and noise mode | Smart Zero Fan; Cooling system listed as 12cm FDB fan; features also mention 140mm fluid bearing fan (listing discrepancy) |
| Dimensions | 150mm (W) x 86mm (H) x 140mm (D) |
| Input voltage | 100-240V |
| Input frequency | 50Hz/60Hz |
| Power Good signal | 100-150 msec |
| Hold-up time | 17 msec |
| Operating temperature | +5°C to +40°C |
| Operating humidity | 20% to 85% |
| Storage temperature | -40°C to +55°C (listed as 40°C to plus 55°C) |
| Storage humidity | 10% to 95% |
| Low-power states | Intel C6/C7 state and ErP Ready |
| Protections | Built-in industrial grade protections (types not specified) |
| Connectors | Not specified in the listing |
| ATX version / PCIe 5 power | Not specified in the listing |
| Warranty | 10-year warranty (listed) |
| Safety approvals | FCC/cTUVus |
PC and case fit: The PSU is listed at 140mm depth, which is helpful in many mid-tower layouts and tighter PSU shrouds where extra cable slack can become a problem.
CPU and GPU pairing: An 850W unit is commonly chosen for higher-end single-GPU systems, but exact suitability depends on your CPU and GPU power targets and transient behavior. Use the PSU headroom to avoid running near maximum output under sustained workloads.
Power connectors: The listing does not specify the number or type of PCIe and EPS cables, and it does not mention 12VHPWR or 12V-2x6. Before buying, confirm the included cable set matches your GPU (and any required adapters) and your motherboard CPU power inputs.
Acoustics and airflow planning: Smart Zero Fan keeps the fan off at lighter loads, which can make a desktop or low-load workstation noticeably quieter. Ensure your case has reasonable ventilation, since fan-stop designs rely more on passive heat dissipation at idle.
Power behavior and uptime: The spec sheet lists a 17 msec hold-up time and a 100-150 msec power-good signal, which are relevant for stability during brief input dips. If you use a UPS, match it to your system draw and consider a sine-wave unit for best compatibility.
Who this guide is for
You’re building or upgrading around a power-hungry graphics card, and you want a supply that won’t flinch when the GPU spikes. Maybe you just grabbed a current-gen flagship, or you’re planning a card swap next year and want to buy the PSU once. Either way, you care about the connector standard, the efficiency rating, and whether the fan stays quiet at idle. This guide speaks to that reader.
It’s not aimed at someone running a 60-watt APU box or a basic office tower. If your whole system sips under 300 watts, a 1000W unit is overkill and your money’s better spent elsewhere. We’re assuming a real discrete GPU, a modern CPU, and a case with room for a full-size ATX supply, except where we call out the small-form-factor exception. Read on if that’s you.
What to look for in a power supply
Start with the connector. ATX 3.1 and the 12V-2×6 plug replaced the earlier 12VHPWR design and address the melting-connector scare that made headlines. A native 12V-2×6 cable, like the one on the Corsair RM1000x, means no daisy-chained adapters feeding your GPU. That’s the single spec I’d prioritize on a high-end build. PCIe 5.1 readiness is the companion checkbox, and every 1000W pick here has it.
Efficiency comes next. 80 Plus Gold covers most builders fine, but Platinum, as seen on the ASUS ROG Strix 1000W, runs cooler and wastes less power as heat. Cybenetics ratings tell a similar story from a stricter lab. Then there’s the fan behavior: semi-passive or zero-RPM modes keep the supply silent under light load. Wattage headroom matters too, so aim for roughly 1.5x your GPU’s rated draw and don’t cheap out on the rail design.
How we evaluated
We researched these five units by reading their full spec sheets, cross-checking efficiency certifications, comparing warranty terms, and weighing owner-reported behavior on high-draw builds. We didn’t bench them in a lab. Instead we vetted the claims that matter for a GPU-heavy rig: connector type, ATX revision, rail configuration, fan profile, and price-to-wattage value. Ratings here range from 4.0 to 4.8 stars, so we treated the higher-rated units as safer bets while noting what the lower scores tend to reflect.
Value carried heavy weight. A platinum unit that costs 55% more than a gold one has to earn that gap with real efficiency, warranty length, or build quality. Where a cheaper unit does the same core job, we said so. We also flagged the two picks that aren’t strictly 1000W, because honesty about wattage beats padding a list with mismatched parts.
Our top picks
Best Overall: be quiet! Pure Power 13 M 1000W
At $139.90, the be quiet! Pure Power 13 M is the value sweet pick of this group, and it carries a 4.8-star rating to back that up. It’s a genuine 1000W unit with 80 Plus Gold certification, ATX 3.1 compliance, and support for PCIe 5.1 GPUs, which is exactly the checklist a high-end card needs. The single-rail design keeps things simple for an overclocked GPU that wants clean, uninterrupted current. That’s the reason be quiet! markets it for overclocked cards specifically.
The semi-passive 120mm fan stays off under light load, so your idle desktop is silent. LLC technology on the topology side helps efficiency hold up at partial load, which is where most gaming rigs actually live. The tradeoff? It’s Gold, not Platinum, so it runs slightly warmer than the ASUS unit under a sustained full load. For the vast majority of single-GPU builds, that difference is academic. This is the one I’d hand most buyers.
Best Budget: Thermaltake GF1 850W
The Thermaltake GF1 lands at $88.99 and holds a 4.0-star rating. Fair warning up front: it’s an 850W unit, not 1000W, so it’s the pick for a high-end build that isn’t chasing the very top of the GPU stack. An 850W supply comfortably handles most cards below the flagship tier, and this one is fully modular with 80 Plus Gold efficiency and a zero-RPM fan mode. Ultra-quiet operation at idle is part of the pitch.
Where it gives ground is the connector and headroom story. At 850W you’ve got less transient buffer than a 1000W unit, so if you’re eyeing a 350W+ card you’ll want to step up. The 4.0 rating also sits lower than the rest of this list, which usually reflects the occasional dead-on-arrival unit rather than a design flaw. For a budget high-end build with a sensible GPU, though, it’s a lot of modular Gold for under ninety bucks.
Best Premium: ASUS ROG Strix 1000W Platinum
If you want the flagship, the ASUS ROG Strix 1000W Platinum is it at $217.99 with a 4.8-star rating. This is a fully modular, 80 Plus Platinum unit that also carries a Cybenetics Lambda A+ noise rating and uses GaN MOSFETs for tighter, cooler switching. The headline feature is the GPU-First Intelligent Voltage Stabilizer, tuned for exactly the transient spikes a high-end card throws. That’s engineering aimed straight at this use case.
The 10-year warranty is the longest here and tells you ASUS expects it to outlast several GPU generations. What holds it back for most people is simply the price, roughly 55% more than the be quiet! unit for gains you’ll mostly notice on a spec sheet and a power meter. If you’re running a no-compromise build, or you just want the quietest, most efficient option and plan to keep it for a decade, it earns the premium. Everyone else can save the money.
Best Low-Noise: Corsair RM1000x
The Corsair RM1000x sits at $166.24 with a 4.4-star rating, and it’s the pick if silence and a clean connector top your list. It’s a fully modular 1000W unit, ATX 3.1 and PCIe 5.1 ready, with Cybenetics Gold efficiency and a native 12V-2×6 connector. That native cable is the big deal here: no adapter, no pigtail, just one clean run to the GPU. Low-noise operation is right in the product name, and Corsair’s low-noise fan curve backs it.
It’s Gold rather than Platinum, so it won’t match the ASUS on raw efficiency, and it costs more than the be quiet! unit that shares its wattage class. What you’re paying for is Corsair’s reputation, the RMx line’s track record, and that native 12V-2×6 plug. For a quiet high-end rig where you want the modern connector done right, it’s an easy recommendation. Solid, if not the outright value champ.
Best Small Form Factor: Corsair SF750
Building in a tiny case? The Corsair SF750 (2024) is your answer at $159.99 with a 4.1-star rating. It’s an SFX unit, not full ATX, so it packs 750W into a footprint that fits mini-ITX enclosures where a standard supply won’t. It’s fully modular, 80 Plus Platinum, ATX 3.1 compliant, PCIe 5.1 ready, and ships with an ATX bracket so you can also drop it into a normal case if you like. Low-noise operation rounds out the spec.
The honest caveat is wattage: 750W is enough for many high-end cards in a compact build, but it’s the tightest headroom on this list, so pair it with a GPU that respects that ceiling. SFX supplies also cost more per watt than ATX ones, which is why you’re paying $159.99 for 750W. If your build is small and you want platinum efficiency in that form factor, nothing else here fits. For a full-tower rig, pick one of the 1000W units instead.
Buying mistakes to avoid
The biggest one is fixating on watts while ignoring the connector. A 1200W unit with an old adapter-fed plug is worse for a modern GPU than a clean 1000W unit with a native 12V-2×6 cable. Don’t buy on the big number alone. The second mistake is assuming Platinum is mandatory. It runs cooler and saves a little on the power bill, but Gold covers the overwhelming majority of builds without drama, and the price gap rarely pays itself back.
Then there’s underbuying to save $30. A supply that’s constantly near its ceiling runs hot, spins its fan harder, and ages faster. It’s the one component that can take the rest of the build with it when it fails, so this isn’t where you want to shave the budget. Buy roughly 1.5x your GPU’s draw, match the connector, and you’re set for years.
Bottom line
For most high-end GPU builds, the be quiet! Pure Power 13 M 1000W at $139.90 is the pick I’d make. It’s a true 1000W ATX 3.1 unit with PCIe 5.1 support, a quiet semi-passive fan, and a 4.8-star rating, all at a price the platinum units can’t touch. It does the core job without asking you to pay for a spec sheet you’ll never fully use.
Want the flagship and a 10-year warranty? Take the ASUS ROG Strix 1000W Platinum. Building small? The Corsair SF750 is the only SFX answer here. On a tight budget with a mid-flagship card, the Thermaltake GF1 850W stretches your dollar. Match the wattage to your GPU, insist on a native 12V-2×6 connector, and you’ll skip the shutdowns entirely.
Common questions
Is 1000W overkill for a single high-end GPU?
Not really. A flagship card can spike well past its rated draw for brief moments, and a 1000W unit gives you the transient headroom to absorb that cleanly. You’ll rarely draw the full wattage, but the buffer is what keeps the system stable. It also leaves room for a future GPU upgrade without another PSU purchase.
Do I need ATX 3.1 specifically?
For a new high-end build, yes, it’s worth insisting on. ATX 3.1 and the 12V-2×6 connector were designed around modern GPU power behavior and the connector issues that plagued the earlier standard. Every 1000W pick here is ATX 3.1 compliant and PCIe 5.1 ready. Buying older just to save a few dollars isn’t worth the risk.
Gold or Platinum, which should I choose?
Gold is fine for the vast majority of builders and covers every unit here except the ASUS and the SF750. Platinum runs a bit cooler and wastes slightly less power as heat, which matters most in a hot room or a small case. The efficiency savings rarely pay back the price premium, so choose Platinum for the cooling and quietness, not the electricity bill.
Why is a native 12V-2×6 connector such a big deal?
Because it removes the adapter from the equation. A native cable runs straight from the PSU to your GPU with no pigtail splitter, which reduces resistance points and the chance of a poorly seated plug. The Corsair RM1000x ships with exactly this. On a card pulling serious current, that clean connection is one less thing to worry about.
Can I use an SFX unit like the SF750 in a normal case?
Yes. The Corsair SF750 includes an ATX bracket, so it mounts in a standard case just fine. That said, you’re paying SFX prices for 750W, so it only makes sense if you might reuse it in a small build later. For a full-tower rig from the start, one of the 1000W ATX units gives you more headroom for the money.
