If you’ve shopped for a high-end graphics card or a flagship phone lately, you’ve probably seen the phrase “vapor chamber cooling” stamped across the spec sheet. It sounds like marketing gloss. It isn’t. A vapor chamber is a genuine piece of thermal engineering that moves heat far more efficiently than a plain slab of metal, and it’s the reason a 350-watt GPU can stay quiet under load instead of screaming like a hairdryer.
This guide breaks down what a vapor chamber actually is, how it pulls heat away from a hot chip, and when it’s worth paying extra for one. If you’re still weighing a traditional heatsink against liquid, our roundups of the best air CPU cooler and the best AIO liquid cooler for 2026 pair well with everything below. Cooling is a system, and the vapor chamber is just one clever link in the chain.
The short answer
A vapor chamber is a sealed, flat metal pocket, usually copper, with a tiny amount of liquid inside and most of the air removed. When one side touches a hot component, the liquid boils into vapor almost instantly. That vapor spreads across the whole chamber, condenses back into liquid on the cooler surfaces, and wicks back to the hot spot to repeat the cycle. It’s a phase-change heat spreader, and it moves thermal energy sideways many times faster than solid copper can.
Think of it as a heat pipe flattened into a plate. Instead of carrying heat along a thin tube, it carries heat across a two-dimensional surface, so a small, blisteringly hot die can dump its energy into a much larger fin stack evenly. That even spread is the whole point.

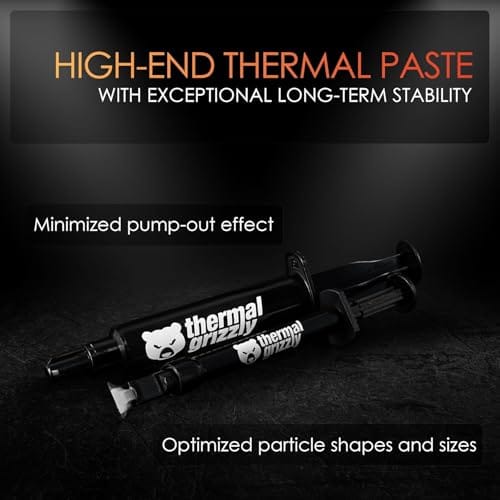

A vapor chamber won’t do much on its own, though. It still needs fins and airflow, plus solid contact backed by good thermal paste, to actually shed the heat. Thermal Grizzly’s Duronaut is one option here at $24.99, a 6-gram tube rated 4.4 stars that ships with 12 cleaning wipes, six wet and six dry, so you can prep a fresh mount cleanly.
Pros
- Non-conductive chemistry safer for novices repasting near exposed CPU or GPU capacitors.
- 6g volume suports several full applications on desktop CPUs and console APUs.
- Wet and dry wipes included, so no isopropyl bottle or lint-free cloth need.
Cons
- Limited owner fedback at time of writing makes long-term durability claims hard to verify.
- Non-metal formula typically trails top liquid metals by a few degrees under sustained load.
- Viscosity, TIM lifespan hours, and thermal conductivity W/mK figures are not specified.
Duronaut is Thermal Grizzly's non-conductive thermal paste positioned as a mid-tier daily driver, shipping in a 6g syringe with 6 wet and 6 dry cleaning wipes. The target buyer is a DIY PC builder repasting a CPU or GPU cooler, or a console owner refreshing PS4, PS5, or Xbox thermals without risking shorts.
The defining trait is the aluminum microparticle plus zinc oxide nanoparticle blend paired with an electrically non-conductive base. Thermal Grizzly claims reduced pump-out and stable performance over extended cycles, which maters most on soldered console APUs and overclocked desktop chips that see large delta-T swings. Exact W/mK conductivity is not specified in the source.
Trade-offs are typical for non-conductive pastes at this tier. Expect a few degrees warmer than liquid metal on delided or high-wattage CPUs, and no published viscosity or cure-time data to plan application around. Owner feedback is limited at time of writing, so long-term hardening resistance relies on vendor claims rather than independent long-run testing.
Buy this if you want a safe, non-conductive paste with enough volume for several repastes and a bundled wipe kit for console or GPU jobs. Skip this if you are chasing the absolute lowest core temperatures on a 250W-plus overclocked CPU where liquid metal or a top nano-diamond paste still leads.
Volume and coverage: The syringe holds 6g of paste, enough for roughly 15 to 25 pea-sized applications on mainstream AM5 or LGA1700 IHS surfaces, or several full console APU repastes on PS4, PS5, and Xbox where die coverage is larger than a desktop CPU heatspreader.
Composition and safety: The compound uses aluminum microparticles and zinc oxide nanoparticles in a non-metal carier, rated electrically non-conductive. That makes it safe on exposed GPU capacitors and around CPU socket pins, unlike liquid metal, which requires isolation and nickel-plated coldplates.
Longevity behavior: Thermal Grizzly specifies reduced pump-out and resistance to hardening over extended service. Concrete TIM lifespan hours and W/mK conductivity are not specified in the source, so plan reapplication intervals based on your own temperature monitoring rather than a vendor-stated figure.
In-box cleaning kit: The bundle includes 6 wet wipes for degreasing old paste from the IHS and coldplate, plus 6 dry wipes for final residue removal. Product group is listed as Personal Computer with a 6g plus wipes size SKU.
The longer explanation
Metals conduct heat, but not equally in every direction, and not fast enough for a modern GPU die that concentrates hundreds of watts into a chip smaller than a postage stamp. Solid copper is excellent by everyday standards, yet it still creates hot spots directly above the die while the edges of the heatsink stay comparatively cool. Those cool edges are wasted surface area.
A vapor chamber fixes that imbalance by using a fluid’s boiling point instead of raw conduction. Inside the sealed copper shell there’s a wick structure, often sintered powder or a fine mesh, lining the walls. A working fluid, usually purified water at very low pressure, sits in that wick. Because the chamber is near-vacuum, the water boils at a much lower temperature than the 100 degrees Celsius you’d expect at sea level. So even modest heat flips it into vapor.
The vapor rushes to fill the entire cavity, carrying its latent heat with it. Where it meets a cooler wall, typically the side bonded to the fins, it condenses and releases that energy. Capillary action in the wick then pulls the liquid back to the hot zone. No pump, no moving parts, no electricity. That’s the elegance of it.
Compare that to a solid copper baseplate and the difference is stark. In solid metal, heat has to conduct atom by atom from the hot center outward, and the far corners lag behind by many degrees. In a vapor chamber the whole plate reaches near-uniform temperature almost instantly, so every fin does its share of the work. That uniformity is what lets a modern flagship GPU feed a giant fin stack evenly instead of roasting the fins directly above the die while the outer ones barely warm up.
How it works, step by step
Break the loop into four stages and it clicks. First, evaporation: the die heats the base plate, and the fluid touching that plate turns to vapor. Second, transport: vapor spreads at near sound speed to every corner of the chamber, equalizing temperature across the plate in milliseconds. Third, condensation: the vapor hits the cooler top surface, gives up its heat to the attached fins, and returns to liquid. Fourth, return: the wick draws that liquid back to the base by capillary force, ready for the next cycle.
This runs thousands of times per second in a stable equilibrium. The result is a plate that behaves as if it were made of a metal with several times copper’s effective conductivity, at least along its surface. That’s why you’ll see vapor chambers under the biggest GPUs and the thinnest gaming laptops, where a stack of round heat pipes simply won’t fit.
Why it works this way
The magic number is latent heat. Boiling a gram of water absorbs roughly 2,260 joules, far more energy than you’d move by simply warming that same water a few degrees. Phase change is a huge energy sponge, and the vapor chamber exploits it in a compact, sealed loop. Every gram of fluid cycling from liquid to vapor and back shuttles a big slug of heat with almost no temperature drop across the plate.
Low internal pressure is the other half. By pulling most of the air out during manufacturing, engineers drop the boiling point so the fluid changes phase at temperatures your chip actually reaches. Get the pressure and wick right and the chamber stays balanced. Get them wrong and it dries out, a failure mode called burnout where the wick can’t return liquid fast enough. Good designs leave generous margin so that never happens in normal use.
When you’d want this
Vapor chambers earn their keep when heat is concentrated and space is tight. High-wattage GPUs, slim laptops, small form factor builds, and flagship phones all lean on them because a flat spreader beats round pipes in cramped quarters. If you’re pushing a 300-watt-plus card or chasing near-silent fan curves, the even heat spread genuinely lowers peak temperatures and lets fans spin slower for the same result.
For a mainstream CPU, though, you often don’t need one. A budget desktop chip running 65 watts is perfectly happy on a basic aluminum heatsink and fan, like the Intel E97379 cooler at $15.99, a 4.1-star stock-style unit with a 3.5-inch fan built for Socket 1150, 1155, and 1156 boards. It’s proof that not every chip demands exotic cooling. Match the solution to the heat load, not to the marketing.
Pros
- Native LGA 1150, 1155, and 1156 socket support covers three legacy Intel generations
- 4-pin PWM connector enables proper fan curve control via BIOS
- OEM-style aluminum heatsink footprint keps RAM and VRM clearance predictable
- Push-pin mount installs without removing the motherboard from the case
Cons
- Zero owner fedback available at time of writing, real-world thermals unverified
- Aluminum-only heatsink with no heatpipes struggles with overclocked or unlocked K-series CPUs
- Restricted to obsolete Intel sockets, no path forward to LGA 1200, 1700, or AM5
The Intel E97379-003 is an OEM-style stock CPU cooler built for LGA 1150, 1155, and 1156 boards, covering Core i3, i5, and i7 chips from the Sandy Bridge through Haswell era. It targets one specific buyer: someone repairing, refurbishing, or restoring a legacy Intel desktop that lost its original heatsink.
The defining feature is compatibility, not performance. A 3.5-inch fan sits on an aluminum heatsink with a 4-pin PWM header, matching the original OEM cooler dimensions Intel shipped in retail boxes. Stock coolers in this class typically handle 65W to 84W TDP chips at stock clocks, which lines up with locked i3, i5, and non-K i7 SKUs on these sockets.
Trade-offs are typical for a boxed-style cooler. There are no heatpipes, no copper base contact, and no tower geometry, so sustained multi-core loads will spin the fan up and get audible. Push-pin mounting is convenient but less secure than a backplate design, and overclocking headroom is effectively zero. Owner feedback is not available at time of writing.
Buy this if you need a like-for-like OEM replacement for a locked LGA 1150, 1155, or 1156 CPU and want to kep the original acoustic and clearance profile. Skip this if the CPU is a K-series part, if you plan to overclock, or if the target socket is LGA 1200 or newer.
Socket coverage: Native mounting for LGA 150, 1155, and 1156 only. That spans 2nd, 3rd, and 4th generation Core i3, i5, and i7 desktop chips. No adapter is included for LGA 1200, 1700, or AM4/AM5, so this cooler is locked to legacy Intel repair scenarios.
Heatsink and fan: Aluminum radial-fin heatsink with a 3.5-inch axial fan on a 4-pin PWM connector. No heatpipes, no copper slug, no vapor chamber are indicated in source data. TDP handling is not specified, but OEM colers of this geometry are typically rated for the 65W to 84W stock TDP band on these sockets.
Mounting and clearance: Push-pin retention through the four motherboard holes, no backplate required, install possible without removing the board. Cooler height sits low enough to clear standard mid-tower side panels, and the round footprint keps RAM slots and VRM heatsinks unobstructed. Exact height in mm is not specified.
Acoustics and headroom: Noise level in dBA is not specified. Based on OEM stock cooler behavior at this size, expect quiet idle and audible ramp under sustained all-core load. Overclocking a K-series chip on this heatsink is not advisable, thermal headroom above 84W is minimal.
What to look for in a vapor chamber cooler
You rarely buy a vapor chamber on its own; it arrives baked into a GPU cooler, a laptop, or a premium CPU block. Still, a few markers separate a real design from a sticker. Check that the chamber actually sits over the die, not off to one side. Look at how many fins it feeds and how much airflow the fans push, because a great spreader starved of airflow just gets uniformly warm.
Copper construction and a sintered wick tend to signal a serious part. Reviews and owner reports help here, since a well-engineered chamber holds temperatures flat across a long gaming session while a cheap imitation lets them creep. And remember the interface: even the best chamber loses ground if the paste between it and the chip is thin, dried out, or unevenly spread.
Orientation is worth a thought too. Because a vapor chamber relies on the wick to return liquid against gravity, a poorly designed one can lose a little efficiency in certain mounting positions. Quality designs use a dense wick that pulls fluid back regardless of how the card sits in your case, so a vertical GPU mount won’t handicap it. If you’re building a showcase rig with a vertically mounted card, that’s one more reason to favor a reputable cooler over a bargain clone.
Common misconceptions
The biggest myth is that a vapor chamber contains lots of water sloshing around. It doesn’t. There’s only a few drops, held in the wick, and the chamber is sealed for life with no maintenance. Another myth: that it’s the same thing as liquid cooling. It isn’t. There’s no pump, no radiator loop, and nothing you refill. It’s a passive spreader that hands heat off to conventional fins.
People also assume a vapor chamber always beats heat pipes. Not automatically. A well-designed multi-pipe tower can rival a mediocre chamber. The chamber’s edge shows up when the heat source is small and dense and the available space is flat and shallow. Context decides the winner, not the label.
Frequently asked
Is a vapor chamber better than heat pipes?
For dense, high-wattage sources in flat spaces, usually yes, because it spreads heat in two dimensions instead of one. For lower-power CPUs in roomy towers, a good heat-pipe cooler often matches it for less money. The right answer depends on the heat load and the space you have.
Do vapor chambers ever wear out?
They’re sealed with no moving parts, so they typically outlast the device they’re in. The main failure risk is manufacturing defects like a poor seal or a weak wick, not gradual wear. Owner reports on quality parts show them holding performance for years.
Can I add a vapor chamber to my existing cooler?
Not as an aftermarket add-on for most builds. Vapor chambers are integrated into a cooler’s base during manufacturing. If you want that benefit, you buy a GPU, laptop, or CPU cooler that already includes one rather than retrofitting.
Does a vapor chamber replace thermal paste?
No. You still need a thin, even layer of paste between the chip and the chamber’s base plate. The chamber moves heat once it’s inside the metal, but paste is what bridges the microscopic gaps at the contact surface. Skip it and temperatures spike.
Are vapor chambers worth the extra cost?
On a 300-watt-plus GPU or a thin gaming laptop, they’re worth it for lower peak temperatures and quieter fans. On a modest 65-watt CPU, they’re overkill, and a basic heatsink does the job for a fraction of the price. Buy one when the heat and the space actually call for it.
