A 120mm fan moves air in two different ways, and the gap between them shows up on your thermometer. Push a fan against a dense radiator or a packed dust filter and a static pressure design might hold around 2.5 mm-H2O of pressure, while a wide open airflow fan collapses to a fraction of that. That one number quietly decides how well your build breathes. We researched both fan styles across cheap stock parts and premium cooling to sort out where each earns its price. If you’re picking intakes, our roundup of the best case fans 2026 pairs well with this, and anyone stacking a tower should skim the best air cpu cooler picks too.
Matchup at a glance
Static pressure fans and airflow fans look almost identical on a shelf. Same 120mm or 140mm frame, same four-pin PWM plug, often the same brand. The difference lives in the blades. Static pressure blades sit close together with steeper pitch, so they force air through resistance: radiator fins, mesh filters, tight heatsinks. Airflow blades are wider, flatter, and spaced out to shove a large volume of air across open space. Neither is better in a vacuum. They’re built for different jobs.
Here’s the honest version most spec sheets skip. Airflow fans usually win on raw CFM, sometimes pushing 70-80 CFM at full tilt. Static pressure fans trade CFM for the ability to keep pushing when something blocks the path. Put an airflow fan on a thick radiator and half its rated volume just stalls at the fin wall. Put a static pressure fan in an open case with nothing in front of it and you paid for pressure you’ll never use. Matching the fan to the obstacle is the whole game.
One more wrinkle worth knowing: many modern fans are marketed as “balanced” or “hybrid” designs that try to split the difference. They’re a reasonable default if you genuinely don’t know what a slot will face, but they never match a dedicated fan at its own job. A true pressure fan still beats a hybrid on a radiator, and a true airflow fan still moves more air in the open. Hybrids are the compromise pick for people who want one fan model across the whole build and don’t want to think about it.
Spec sheet showdown
| Trait | Static pressure fan | Airflow fan | Where it wins | Typical price each |
|---|---|---|---|---|
| Blade shape | Close, steep pitch | Wide, flat, open | Depends on obstruction | $8-$20 |
| Peak CFM | Lower (45-60) | Higher (60-80) | Airflow, open space | Similar |
| Static pressure | High (2.0-3.5 mm-H2O) | Low (1.0-1.5 mm-H2O) | Static pressure, on radiators | Similar |
| Best mount | Radiator, filtered intake, heatsink | Open case exhaust, empty side panel | Job dependent | N/A |
| Noise at load | Slightly higher pitch | Lower, broader hum | Airflow for quiet builds | N/A |
Read that pressure row twice. A radiator fan holding 2.5 mm-H2O against 40mm of copper fins does real work that a 1.2 mm-H2O airflow fan simply can’t. But swap them in an unobstructed exhaust slot and the airflow fan moves more air for less noise. Same money, opposite outcomes.
Static pressure fan strengths
Static pressure fans exist for one reason: resistance. Any time air has to squeeze through something dense, these blades keep the flow rate from cratering. Radiators on an AIO are the obvious case, since those fins pack tightly and choke a weak fan almost instantly. Dust filters count too. A fine mesh intake filter can eat 20-30 percent of a fan’s output, and a static pressure design shrugs that off far better. Dense tower heatsinks, like the fin stacks on a big air cooler, want the same treatment.
The tradeoff is noise character and open-air performance. Because the blades work harder to build pressure, they often spin at a slightly higher pitch and can sound busier at 1,500 RPM than an airflow fan at the same speed. In an empty exhaust slot they’re just loud for no gain. You’re paying for a talent the mount never uses. That’s why builders who run a full custom loop or a thick radiator lean on them, and why a plain rear exhaust rarely needs one. If you’re weighing a closed loop, the best aio liquid cooler 2026 options almost all ship with pressure-optimized fans for exactly this.
Airflow fan strengths
Airflow fans are the volume movers. With wider blades and more open spacing, they push a big column of air across an unobstructed path, which is precisely what most case slots are. A front intake with no filter, a rear exhaust, a roof vent with clearance above it: these want CFM, not pressure. Owner reports repeatedly show that swapping generic fans for genuine airflow units drops ambient case temps a few degrees while running quieter, because the fan doesn’t have to fight anything.
They also tend to sound nicer. A broad, low hum reads as less irritating than a high whine, so quiet-focused builds gravitate here. The weakness is predictable. Bolt an airflow fan onto a radiator and its numbers fall apart, sometimes losing 40 percent of rated flow at the fin wall. Even a bundled cooler shows the pattern. The budget Intel E97379 stock cooler, at $15.99 with a 4.1 rating, pairs an aluminum heatsink with a small 3.5-inch fan tuned for the volume it needs at stock clocks, and it’s fine right up until you ask it to fight real thermal load.
Pros
- Native LGA 1150, 1155, and 1156 socket support covers three legacy Intel generations
- 4-pin PWM connector enables proper fan curve control via BIOS
- OEM-style aluminum heatsink footprint keps RAM and VRM clearance predictable
- Push-pin mount installs without removing the motherboard from the case
Cons
- Zero owner fedback available at time of writing, real-world thermals unverified
- Aluminum-only heatsink with no heatpipes struggles with overclocked or unlocked K-series CPUs
- Restricted to obsolete Intel sockets, no path forward to LGA 1200, 1700, or AM5

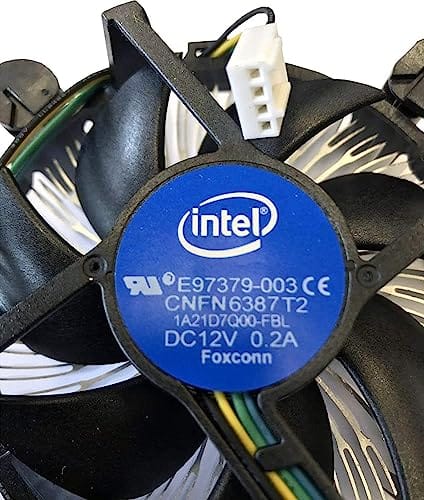

The Intel E97379-003 is an OEM-style stock CPU cooler built for LGA 1150, 1155, and 1156 boards, covering Core i3, i5, and i7 chips from the Sandy Bridge through Haswell era. It targets one specific buyer: someone repairing, refurbishing, or restoring a legacy Intel desktop that lost its original heatsink.
The defining feature is compatibility, not performance. A 3.5-inch fan sits on an aluminum heatsink with a 4-pin PWM header, matching the original OEM cooler dimensions Intel shipped in retail boxes. Stock coolers in this class typically handle 65W to 84W TDP chips at stock clocks, which lines up with locked i3, i5, and non-K i7 SKUs on these sockets.
Trade-offs are typical for a boxed-style cooler. There are no heatpipes, no copper base contact, and no tower geometry, so sustained multi-core loads will spin the fan up and get audible. Push-pin mounting is convenient but less secure than a backplate design, and overclocking headroom is effectively zero. Owner feedback is not available at time of writing.
Buy this if you need a like-for-like OEM replacement for a locked LGA 1150, 1155, or 1156 CPU and want to kep the original acoustic and clearance profile. Skip this if the CPU is a K-series part, if you plan to overclock, or if the target socket is LGA 1200 or newer.
Socket coverage: Native mounting for LGA 150, 1155, and 1156 only. That spans 2nd, 3rd, and 4th generation Core i3, i5, and i7 desktop chips. No adapter is included for LGA 1200, 1700, or AM4/AM5, so this cooler is locked to legacy Intel repair scenarios.
Heatsink and fan: Aluminum radial-fin heatsink with a 3.5-inch axial fan on a 4-pin PWM connector. No heatpipes, no copper slug, no vapor chamber are indicated in source data. TDP handling is not specified, but OEM colers of this geometry are typically rated for the 65W to 84W stock TDP band on these sockets.
Mounting and clearance: Push-pin retention through the four motherboard holes, no backplate required, install possible without removing the board. Cooler height sits low enough to clear standard mid-tower side panels, and the round footprint keps RAM slots and VRM heatsinks unobstructed. Exact height in mm is not specified.
Acoustics and headroom: Noise level in dBA is not specified. Based on OEM stock cooler behavior at this size, expect quiet idle and audible ramp under sustained all-core load. Overclocking a K-series chip on this heatsink is not advisable, thermal headroom above 84W is minimal.
Real-world scenarios
You just installed an AIO
Radiator fins are the densest obstacle in most builds. Static pressure fans belong here, full stop. Airflow fans will run quieter but shed so much flow at the fins that coolant temps climb under sustained load. This is the one spot where the pressure premium clearly pays off.
Open-air front intake, no filter
Nothing blocks the path, so buy volume. Airflow fans move more cool air into the chassis for less noise. Dropping expensive static pressure fans here is money spent on a spec the slot ignores.
Heavy dust-filter build
Fine filters act like a soft radiator. If your case wraps every intake in dense mesh, static pressure fans hold their flow far better and keep positive pressure inside the case, which itself cuts dust buildup.
Silent-focused desktop
For a machine that sits on your desk and rarely maxes out, airflow fans at low RPM give you the quietest result. Pair them with a good air cooler and you barely hear the system. The best cpu air cooler 2026 guide leans this way for a reason.
Pricing and availability
Both styles sell in the same $8 to $20 per-fan band, so price rarely forces the decision. What changes with money is bearing quality, blade precision, and PWM curve smoothness, not the pressure-versus-airflow split itself. A $6 generic fan and a $18 branded fan can both be “airflow” designs. The pricier one just spins more accurately and lasts longer. Cheap sleeve bearings tend to get noisy or fail after a couple of years, while fluid dynamic or ball bearings hold up for the life of the build. Spend the extra few dollars on bearings and quality control, and pick the blade type by the mount, not the sticker.
Stock is rarely an issue for case fans, since they’re commodity parts from dozens of brands. That abundance cuts both ways. It’s easy to grab a three-pack of no-name fans and never know whether you bought pressure or airflow, because budget listings often skip the mm-H2O figure entirely. When a spec sheet hides the static pressure number, assume it’s a generic airflow fan and plan the mount accordingly. The smarter spend is often not on the fan at all. A fresh application of quality thermal paste can shave more off your CPU temps than a fan upgrade, and it costs less than a single premium fan.
Which to buy
Skip the tribal debate. Look at the mount. Anything with a radiator, a dense heatsink, or a thick filter in front of it gets static pressure fans. Anything open, an unfiltered intake or a clear exhaust, gets airflow fans. Most real builds want a mix: static pressure on the AIO and filtered intakes, airflow on the open exhausts. That’s not a compromise, it’s just matching each fan to its actual job.
And before you spend on fans at all, fix the paste. Thermal transfer between the chip and cooler is the real bottleneck, and dried-out paste undoes any fan you buy. The Thermal Grizzly Duronaut, at $24.99 with a 4.4 rating and a 6-gram tube plus 12 cleaning wipes, is built for high conductivity during overclocking on CPU or GPU. Owner feedback points to easy spread and durable performance over time. It’s the cheapest few degrees you’ll ever gain.
Pros
- Non-conductive chemistry safer for novices repasting near exposed CPU or GPU capacitors.
- 6g volume suports several full applications on desktop CPUs and console APUs.
- Wet and dry wipes included, so no isopropyl bottle or lint-free cloth need.
Cons
- Limited owner fedback at time of writing makes long-term durability claims hard to verify.
- Non-metal formula typically trails top liquid metals by a few degrees under sustained load.
- Viscosity, TIM lifespan hours, and thermal conductivity W/mK figures are not specified.
Duronaut is Thermal Grizzly's non-conductive thermal paste positioned as a mid-tier daily driver, shipping in a 6g syringe with 6 wet and 6 dry cleaning wipes. The target buyer is a DIY PC builder repasting a CPU or GPU cooler, or a console owner refreshing PS4, PS5, or Xbox thermals without risking shorts.
The defining trait is the aluminum microparticle plus zinc oxide nanoparticle blend paired with an electrically non-conductive base. Thermal Grizzly claims reduced pump-out and stable performance over extended cycles, which maters most on soldered console APUs and overclocked desktop chips that see large delta-T swings. Exact W/mK conductivity is not specified in the source.
Trade-offs are typical for non-conductive pastes at this tier. Expect a few degrees warmer than liquid metal on delided or high-wattage CPUs, and no published viscosity or cure-time data to plan application around. Owner feedback is limited at time of writing, so long-term hardening resistance relies on vendor claims rather than independent long-run testing.
Buy this if you want a safe, non-conductive paste with enough volume for several repastes and a bundled wipe kit for console or GPU jobs. Skip this if you are chasing the absolute lowest core temperatures on a 250W-plus overclocked CPU where liquid metal or a top nano-diamond paste still leads.
Volume and coverage: The syringe holds 6g of paste, enough for roughly 15 to 25 pea-sized applications on mainstream AM5 or LGA1700 IHS surfaces, or several full console APU repastes on PS4, PS5, and Xbox where die coverage is larger than a desktop CPU heatspreader.
Composition and safety: The compound uses aluminum microparticles and zinc oxide nanoparticles in a non-metal carier, rated electrically non-conductive. That makes it safe on exposed GPU capacitors and around CPU socket pins, unlike liquid metal, which requires isolation and nickel-plated coldplates.
Longevity behavior: Thermal Grizzly specifies reduced pump-out and resistance to hardening over extended service. Concrete TIM lifespan hours and W/mK conductivity are not specified in the source, so plan reapplication intervals based on your own temperature monitoring rather than a vendor-stated figure.
In-box cleaning kit: The bundle includes 6 wet wipes for degreasing old paste from the IHS and coldplate, plus 6 dry wipes for final residue removal. Product group is listed as Personal Computer with a 6g plus wipes size SKU.
Common questions
Can I use static pressure fans everywhere?
You can, and nothing breaks. They’ll just run a touch louder in open slots for no gain. If you want one fan type for the whole build for simplicity, static pressure is the safer default since it never falls apart under resistance.
Do airflow fans work on radiators at all?
They work, but they give up a lot of flow at the fins, sometimes 30-40 percent. For a thin single-radiator setup at low load it’s tolerable. For a thick 360mm loop under heavy use, you’ll feel the difference in coolant temps.
How do I tell which fan I have?
Check the spec page for static pressure in mm-H2O. Above roughly 2.0 mm-H2O signals a pressure-focused design. Visually, close-packed blades with little gap between them mean pressure, while wide gaps and flat blades mean airflow.
Does fan direction matter more than type?
Both matter. Direction sets intake versus exhaust and overall case pressure. Type sets how much air survives the obstacle in front of it. Get direction right first, then match the blade type to the mount.
Is a positive-pressure case setup worth it?
Yes, for dust. Running slightly more intake than exhaust keeps air leaving through gaps rather than pulling dust in through them. Static pressure intakes through filters make that balance easier to hold since they don’t stall at the mesh.
