You dropped a new Intel chip into the socket, closed the case, pressed the power button, and nothing happened the way it should. The fans might spin, the RGB might glow, but the screen stays black and the machine never reaches the BIOS. No logo, no beeps, no login. If you just swapped a CPU and the system won’t POST, the good news is that the cause is almost always something simple and reversible, not a fried motherboard. We researched the most common culprits across owner reports, LGA socket guides, and motherboard manuals, and the same short list of problems shows up again and again.
POST is the quick hardware handshake a board runs at startup, right before it hands control off to the BIOS. When a CPU install breaks that handshake, it’s usually one of three things: the board’s firmware doesn’t recognize the chip yet, the CPU power cable got left loose, or something physical went wrong at the socket. We’ll walk through each one, plus the 30-second check that catches half of these cases before you pull anything apart. If you’re mid-build and still comparing parts, our guides to the best CPU for gaming and the best budget CPU for 2026 cover which chips play nicely with which boards.
First check the obvious (the 30-second check)
Before you disassemble anything, look at the board itself. Most modern Intel boards have four small debug LEDs labeled CPU, DRAM, VGA, and BOOT, and they light up in sequence as each stage passes. A stuck CPU LED points straight at the processor or its power. A stuck DRAM LED means memory. VGA means the graphics card, and BOOT means storage. Some budget boards skip the four LEDs and use a two-digit POST code display instead, so keep the manual open to decode whatever number freezes on screen. That one glance can save you an hour of blind swapping.
While you’re looking, confirm the boring stuff. Is the monitor cable in the graphics card and not the motherboard’s video port? Is the monitor on the right input? Is the PSU switch flipped to on and the wall outlet live? Did the case power button actually get reconnected to the front-panel header? People pull that tiny header during a CPU swap more often than they’d admit. Reseat it, confirm the display path, and power-cycle once before you assume the worst. If the CPU debug LED still won’t clear, move on to the real causes below.
Cause #1: The BIOS is too old to recognize the new CPU
This is the single most common reason a fresh Intel chip won’t POST, and it catches almost everyone who buys a newer processor for an older board. Motherboards store microcode for every CPU they support inside the BIOS. If your board was manufactured before your specific chip existed, the firmware literally doesn’t know what’s sitting in the socket, so it refuses to start. A Z690 board that’s been on a shelf since 2022 might not recognize a 13th or 14th gen part until it’s updated. The frustrating part? The board looks dead, but it’s just confused.
The fix depends on your board. Many mid-range and high-end Intel boards include a feature called BIOS Flashback, a physical button on the rear I/O that flashes new firmware from a USB stick with no CPU or RAM installed at all. Download the latest BIOS from the manufacturer, rename the file exactly as the manual specifies, drop it on a FAT32 USB drive, and hold the button. If your board has no Flashback, you’ll need to borrow an older CPU the current firmware already supports, POST with that, update the BIOS through the menu, then reinstall your new chip. It’s a hassle, but it’s the correct path.
Cause #2: The 8-pin CPU power cable isn’t fully connected
The processor doesn’t draw its main power from the big 24-pin cable. It pulls from a separate 8-pin EPS connector at the top-left corner of the board, and that’s the cable builders forget or seat only halfway. If you removed the cooler to swap the CPU, it’s easy to bump that plug loose, or to reconnect it at an angle where only half the clip catches. A partially seated EPS cable gives you spinning fans and glowing lights but zero POST, which is exactly the symptom that makes people panic about a dead board.
Push the 8-pin connector in firmly until the latch clicks. High-power Intel chips like the K-series can pull well over 250 watts under load, so many boards have two EPS headers, an 8-pin and an extra 4-pin or second 8-pin. Fill the primary 8-pin at minimum. Double-check that you didn’t accidentally plug a PCIe 8-pin (from the GPU cables) into the CPU header, because the two look similar but aren’t interchangeable, and mixing them up won’t POST either. Trace the cable back to the PSU labeled CPU or EPS and reseat both ends.
Cause #3: Bent socket pins, bad seating, or RAM knocked loose
Intel uses an LGA design, which means the delicate pins live in the motherboard socket, not on the chip. Those pins bend if a finger, a screwdriver, or a dropped CPU touches them, and even one flattened pin in the wrong row can block POST entirely. Pop the retention arm, lift the chip straight out, and inspect the socket under a bright light at an angle. The pins should sit in perfectly even rows. If you spot a bent one, a very steady hand and a fine needle can sometimes straighten it, though that’s a repair with real risk. While the chip is out, confirm you removed the plastic socket cover and that the triangle on the CPU corner lines up with the triangle on the socket.
Seating and mounting cause their own trouble. A cooler tightened unevenly or way too hard can flex the board and break contact, so back the screws off and retighten them in a diagonal, gradual pattern. Too loose is just as bad. Then reseat the RAM, because pushing the cooler around during a CPU swap very commonly knocks a memory stick half out of its slot, and a stick that isn’t fully clicked in reads as no memory. Try one stick in the slot your manual recommends, usually the second from the CPU. If you slathered thermal paste and any dripped into the socket, clean it out gently with isopropyl alcohol. And clear the CMOS: pull the coin battery for a minute or short the clear jumper, which resets any leftover settings from the old CPU that might be blocking a clean start.
Preventive maintenance
Most of these headaches never happen if you prep before the swap. Update the BIOS to the newest stable version with your old CPU still installed, so the board already knows your incoming chip. Work on a hard surface, keep the socket cover on until the last second, and never rest a CPU pins-down or drop anything near an open socket. Ground yourself against static by touching the case metal, and handle the chip by its edges only. Apply thermal paste in a small pea-sized dot, not a thick smear that can ooze toward the socket. Install the RAM and reconnect the 8-pin EPS before you close the case, then verify every cable with a firm tug. Snap a phone photo of the socket before you seat the chip too, so you have a clean reference if a pin looks off later. A quick check now beats a teardown later.
When it’s not fixable: what to replace
Sometimes the chip itself is the problem. CPUs arrive dead more often than people expect, and a bent socket pin that touched the wrong pad can quietly kill a processor during install. If you’ve reseated the RAM, confirmed the EPS power, updated the BIOS, cleared the CMOS, and the CPU debug LED still refuses to clear, the fastest way to confirm a bad chip is a swap. Drop in a processor you already know the board’s firmware supports and see if it reaches POST. A known-good chip that matches your socket turns hours of guessing into a five-minute answer.

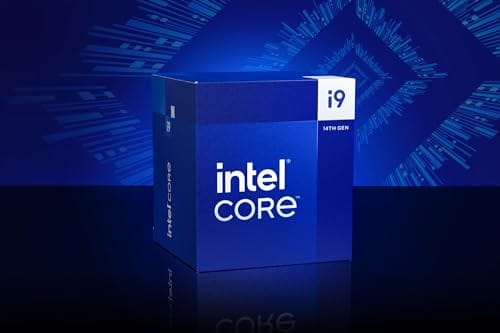

For a current LGA1700 board on recent firmware, the Intel Core i9-14900K at $469 makes a clean swap-in. It’s a high-core-count part rated 4.7 stars, and most Z790 boards recognize it out of the box, so if the board POSTs with it but not with your original chip, you’ve isolated the fault. A solid diagnostic, and a real upgrade if you decide to keep it. Builders shopping this tier also cross-shop our best gaming CPU picks for the same socket.
Pros
- Industry-leading 6.0GHz out-of-the-box boost clock for single-threaded applications.
- Massive 32-thread capacity excels in multi-threaded workloads like 4K video rendering and 3D modeling.
- Compatible with existing LGA 1700 motherboards via BIOS updates, extending the life of 600-series boards.
- Integrated Intel UHD Graphics 770 provides a fallback for troubleshooting and QuickSync hardware acceleration.
- Highly binned silicon offers significant tuning potential for users with high-end cooling solutions.
Cons
- High 253W maximum turbo power requires premium 360mm or 420mm AIO liquid cooling for sustained loads.
- Aggressive stock voltage curves can lead to thermal throttling on standard air coolers or entry-level AIOs.
- Final generation for the LGA 1700 socket, limiting future CPU upgrade paths without a motherboard change.
- Significant power draw necessitates a high-quality PSU with sufficient 12V EPS overhead.
The Intel Core i9-14900K represents the enthusiast-tier peak of the Raptor Lake Refresh lineup, targeting professional creators and gamers who require the highest possible clock speeds. With 24 cores and 32 threads, it is designed to handle simultaneous gaming, streaming, and recording without the performance degradation typically seen on lower-core-count processors.
Technical performance is defined by its 6.0GHz Thermal Velocity Boost, a milestone frequency that pushes the limits of the LGA 1700 platform. In real-world gaming, this translates to high frame ceilings in 1080p and 1440p scenarios, while the 16 Efficient-cores provide the necessary throughput for background tasks and heavy multi-threaded productivity suites like Adobe Premiere Pro and DaVinci Resolve.
Build quality and reliability are consistent with Intel's high-end silicon, though the chip is notoriously demanding regarding thermals. The integrated heat spreader (IHS) must dissipate significant heat during 250W+ bursts, making the choice of thermal interface material and mounting pressure critical for maintaining stability under full load.
The primary trade-off for this level of performance is power consumption and heat. Users should expect the processor to hit its thermal junction maximum (TjMax) quickly during synthetic stress tests if paired with inadequate cooling. It is a processor that requires manual tuning of power limits (PL1 and PL2) to balance efficiency and performance effectively.
Final verdict: Buy this processor if you are an enthusiast with a high-end Z790 motherboard and a 360mm+ liquid cooler who needs the absolute fastest gaming and multitasking performance currently available on the Intel platform. Skip this if you prefer a plug-and-play experience with low power draw or are building in a small form factor case with limited cooling clearance.
| Cores / Threads | 24 (8P + 16E) / 32 |
| Max Turbo Frequency | 6.0 GHz |
| Intel Smart Cache (L3) | 36 MB |
| Total L2 Cache | 32 MB |
| Processor Base Power | 125 W |
| Max Turbo Power | 253 W (Listed as 250W in specs) |
| Socket Support | LGA 1700 |
| Memory Support | DDR5 5600 / DDR4 3200 |
| PCIe Lanes | 20 Total (Up to Gen 5.0) |
| Integrated Graphics | Intel UHD Graphics 770 |
Motherboard and Chipset: The i9-14900K requires an LGA 1700 socket. While it is compatible with older Z600-series motherboards, a BIOS update is mandatory for the system to POST. For optimal power delivery and PCIe 5.0 support, a high-end Z790 motherboard with robust VRMs is strongly recommended to handle the 250W+ power excursions.
Cooling Requirements: Due to the 6.0GHz boost clock and high TDP, air cooling is generally not recommended for this tier unless using a flagship dual-tower cooler with a contact frame. A 360mm or 420mm All-In-One (AIO) liquid cooler is the standard recommendation to prevent thermal throttling during intensive rendering or compilation tasks.
Memory Selection: This CPU supports both DDR4 and DDR5, but the motherboard determines which one you must use. For maximum performance in modern titles and professional apps, pairing this with a DDR5-7200+ kit on a Z790 platform is the ideal configuration, though DDR4 remains a viable cost-saving path for those upgrading from 12th gen.
Power Supply Guidance: Given the potential for 300W+ spikes from the CPU alone, especially when overclocked, a high-quality 850W or 1000W 80 Plus Gold PSU is recommended. Ensure your PSU has at least two 8-pin EPS (CPU) connectors to provide stable voltage to the motherboard's power phases.
Operating System: To properly utilize the Intel Thread Director and the hybrid core architecture, Windows 11 is the recommended operating system. Windows 10 may not efficiently schedule tasks between the P-cores and E-cores, potentially leading to inconsistent performance in multitasking scenarios.
If your board runs older firmware and you want the chip with the widest support across both 600 and 700 series boards, the Intel Core i9-13900K is the safer known-good reference. It’s a 24-core design with 8 P-cores plus 16 E-cores, 36M of cache, and it clocks up to 5.8 GHz, rated 4.8 stars at $587.77. Boards have shipped supporting it for longer, so it’s the part least likely to need a firmware flash before it’ll POST. If a bent pin damaged your original processor, either of these is a straight replacement.
Pros
- Massive multi-threaded performance for 4K video editing, 3D rendering, and complex data science workloads.
- High 5.8 GHz peak frequency provides excellent single-core performance for gaming and CAD applications.
- Integrated UHD Graphics 770 serves as a reliable backup for troubleshooting or non-gaming productivity setups.
- Broad platform compatibility across two motherboard generations and two different memory standards.
Cons
- High 125W base power and significant peak wattage require a high-end 360mm AIO or custom loop cooling.
- Requires a BIOS update on many Intel 600 series motherboards before the system will POST.
- Platform longevity is limited as LGA1700 is an established socket nearing the end of its release cycle.
The Intel Core i9-13900K represents the pinnacle of the 13th Gen Raptor Lake lineup, positioned as a flagship solution for users who refuse to compromise. With a total of 24 cores and 32 threads, it is specifically engineered for enthusiast gamers, streamers, and heavy content creators who frequently run demanding applications like Adobe Premiere Pro, DaVinci Resolve, or Blender.
The standout technical achievement here is the refined hybrid architecture. By pairing 8 high-frequency Performance-cores with 16 Efficiency-cores, the 13900K manages heavy compute loads without sacrificing the responsiveness of background applications. In real-world gaming, this typically translates to higher 1% low frame rates and smoother overall performance, especially when multitasking with OBS or Discord in the background.
Thermal management is a critical consideration for this chip. While the 125W base power seems manageable, the processor is designed to scale its power consumption significantly to maintain the 5.8 GHz boost clock. Users should expect high operating temperatures under sustained all-core loads, necessitating a robust cooling solution and a high-airflow case to prevent thermal throttling.
An honest trade-off for this level of performance is the power draw and the resulting heat output. This is not a 'set and forget' chip for budget cooling or small form factor builds without careful undervolting or power limiting. Additionally, while the support for DDR4 is a welcome cost-saving measure, the highest performance tiers are only unlocked when paired with high-frequency DDR5 memory.
Buy this if you are building a top-tier workstation or gaming rig and already have a 360mm liquid cooler and a high-wattage power supply. Skip this if you are primarily gaming at 4K where the GPU is the bottleneck, or if you prefer a more power-efficient system with lower cooling requirements.
| Feature | Specification |
|---|---|
| Core Count | 24 (8 P-cores + 16 E-cores) |
| Thread Count | 32 |
| Max Turbo Frequency | 5.8 GHz |
| P-core Base Frequency | 3.0 GHz |
| E-core Base Frequency | 2.2 GHz |
| Intel Smart Cache (L3) | 36 MB |
| Total L2 Cache | 32 MB |
| Processor Base Power | 125 W |
| Memory Support | DDR5 5600 / DDR4 3200 |
| PCIe Revision | 5.0 and 4.0 |
| Total CPU PCIe Lanes | 20 |
| Socket Support | LGA1700 |
| Integrated Graphics | Intel UHD Graphics 770 |
Socket and Chipset: This processor uses the LGA1700 socket. It is natively compatible with Intel 700 series motherboards (Z790, H770, B760). While it works with 600 series boards (Z690, H670, B660, H610), a BIOS update is almost certainly required for the system to boot if the board was manufactured before the 13th Gen launch.
Cooling Requirements: Given the 5.8 GHz boost clock and high core count, a premium 360mm or 420mm All-In-One (AIO) liquid cooler is strongly recommended. High-end dual-tower air coolers may suffice for gaming but will likely lead to thermal throttling during intensive multi-threaded rendering or stress testing.
Memory Selection: The i9-13900K supports both DDR4 and DDR5, but this is determined by your motherboard choice. For a flagship build, pairing this CPU with DDR5 5600MT/s or higher is recommended to avoid bandwidth bottlenecks in memory-sensitive applications and modern games.
Power Supply Guidance: Due to the high transient power spikes typical of i9 processors, ensure your PSU has sufficient headroom. For a build featuring this CPU and a high-end GPU like an RTX 4080 or 4090, a minimum of an 850W or 1000W 80 Plus Gold power supply is advised.
Operating System: To properly utilize the Intel Thread Director for efficient task scheduling between P-cores and E-cores, Windows 11 is highly recommended. While Windows 10 is supported, it may not always assign tasks to the optimal core type, potentially impacting performance.
Tools and parts needed
You don’t need much for this job. A single Phillips screwdriver handles the cooler, a bright flashlight or phone light lets you inspect the socket at an angle, and a FAT32 USB drive covers a BIOS Flashback if your board supports it. Keep isopropyl alcohol and a lint-free cloth on hand in case paste got somewhere it shouldn’t. A magnifier helps for spotting a bent pin, and a spare supported CPU is the single most useful diagnostic part you can borrow. An anti-static wrist strap is cheap insurance if you’re working on carpet or in a dry room. Nothing exotic, just patience.
A few more questions
Can a bent socket pin damage a good CPU?
Yes, though it’s not guaranteed. A pin that’s merely flattened usually just blocks contact, so straightening it restores function. But a pin shorted against the wrong pad can send voltage where it shouldn’t go and damage the chip. If your CPU won’t POST in a second known-good board either, assume the processor took the hit and needs replacing.
How do I know if my board needs a BIOS update for my CPU?
Check the CPU support list on your motherboard maker’s website and match your exact chip against the minimum BIOS version listed next to it. If your board’s current firmware is older than that number, it won’t recognize the chip until you update. Boards with a BIOS Flashback button can update with no CPU installed, which is the cleanest route for a brand-new part.
The fans spin but there’s no display. Is the CPU dead?
Not necessarily. Spinning fans only prove the PSU delivers standby power, not that the system POSTs. Nine times out of ten this traces back to a loose 8-pin CPU cable, unseated RAM, or a BIOS that doesn’t know the chip yet. Work through the debug LED, reseat power and memory, and clear the CMOS before you conclude the processor itself has failed.
