A PSU shroud is the metal or plastic cover at the bottom of many PC cases that hides the power supply, extra cables, and sometimes storage bays. It sounds cosmetic, and yes, it makes a build look cleaner through a glass side panel. But it also changes airflow paths, cable routing, dust behavior, and how easy the case is to build in. If you’re comparing cases, our guides to the best mid-tower cases for 2026 and the best PC cases for airflow show how shroud design fits into the bigger chassis picture.
The short version: a PSU shroud is helpful when it hides mess without choking the power supply or blocking front intake. It’s annoying when it’s riveted shut, leaves no cable cutouts, or traps heat around a drive cage. Clean look. Real tradeoffs.
The short answer
A PSU shroud separates the lower chamber of the case from the visible motherboard area. The power supply sits under it, cables tuck behind or beside it, and the main chamber looks tidy. In many cases, the shroud also covers a 3.5-inch drive cage and provides holes for routing GPU and motherboard power cables.

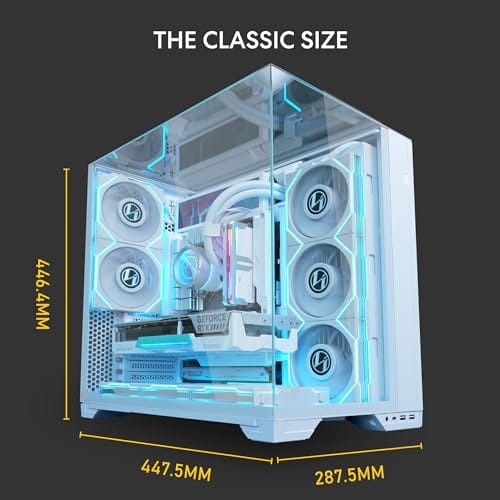

The Lian Li O11 Vision Compact White at $124.99 with a 4.4 rating is a relevant modern case example. Its title highlights white steel, tempered glass, ATX mid-tower sizing, and back-connect support. That back-connect angle matters because modern cases increasingly hide wiring behind the motherboard tray instead of relying only on a PSU shroud.
Pros
- Patented three-panel tempered glass exposes front, top, and left views of the build.
- Native back-connect motherboard support for hiden 24-pin, EPS, and PCIe cabling.
- Second chamber hides side-mounted AIO tubing for a cleaner primary compartment.
- Swappable top mesh panel suports a 360mm AIO when thermals take priority over glass.
Cons
- Limited owner feedback at time of writing makes long-term reliability signal thin.
- Full specs (GPU length, cooler height, fan count) not published in source data.
- Back-connect layout requires a compatible motherboard, narowing part selection.
The Lian Li O11Vision Compact is a mid-range ATX mid-tower positioned as a smaller sibling to the O11 Dynamic line, developed in collaboration with the PCMasterRace community. It targets showcase builders who want a dual-chamber layout, tempered glass on three sides, and native support for back-connect motherboards in a tighter footprint.
The defining feature is the patented three-panel tempered glass design covering the front, top, and left side. Paired with the second-chamber cable routing and back-connect motherboard compatibility, the front compartment stays visually clean. Builders wanting a 360mm AIO can swap in the included top mesh panel, trading a glass top for airflow.
Trade-offs are typical at this tier. Back-connect support only pays off if you buy a compatible board from ASUS, MSI, GIGABYTE, or similar, which narrows part selection and can raise motherboard cost. Concrete specs like GPU clearance, CPU cooler height, radiator sites, and included fan count are not specified in the source data, so verify against the official manual before finalizing parts.
Buy this if you want O11-family aesthetics with hidden cabling via a back-connect board and a side or top 360mm AIO. Skip this if you need a documented GPU length ceiling, bundled fans, or a traditional cable-visible motherboard build.
Motherboard support: The chassis accepts standard ATX boards and ads native routing for back-connect variants such as ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth. Cable cutouts on the tray align with rear-side connectors, keping the 24-pin, EPS, and PCIe cables out of the main chamber view.

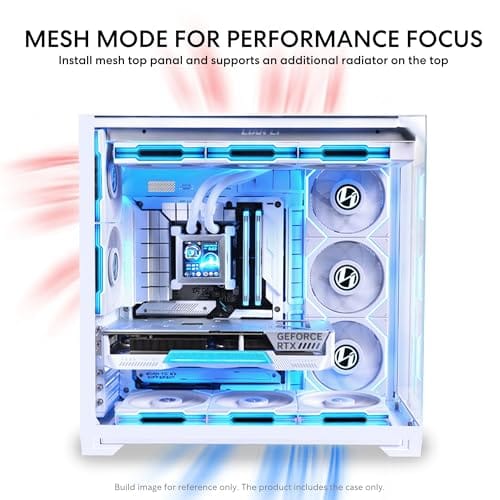

Radiator and AIO: A swappable top mesh panel is included specifically to enable a 360mm AIO in the rof. When the AIO is mounted on the side instead, the dual-chamber layout routes the tubing into the second compartment, keeping the front-facing glass view unobstructed. Exact side radiator thickness limits are not specified.
Glass and panel layout: Three tempered glass panels cover the front, top, and left side. The top glass panel is the one you swap out when a 360mm radiator is installed, so builders choosing air cooling or a bottom-mounted AIO retain the full three-panel glass look.
Not specified in source: GPU length clearance, CPU cooler height, drive bay count, included fan count, front I/O (USB-C, USB-A), PSU length, and case dimensions are not listed in the provided data. Confirm these against the Lian Li O11VPW official spec sheet before finalizing parts.
The longer explanation
Older PC cases often left the PSU fully visible at the bottom or top of the case, with every spare SATA lead and PCIe cable sitting in plain sight. As tempered-glass panels became normal, case makers needed a way to hide unused cabling without forcing every buyer to become a cable-management artist. The PSU shroud solved that by creating a covered basement. You route the necessary cables upward through cutouts and stuff the unused length below.
That design also creates zones. The motherboard, GPU, and CPU cooler live in the main chamber. The power supply and bulk cable mess live underneath. In a well-designed case, front fans still push air into the main chamber, while the PSU pulls from a filtered bottom intake and exhausts out the rear. In a bad design, the shroud blocks airflow and turns the bottom of the case into a warm cable drawer.
History / how we got here
PSU shrouds became common during the shift from solid side panels to acrylic and tempered glass. Once people could see inside their PCs, messy power cables stopped being invisible. Early shrouds were simple metal covers, often riveted in place with a few cable holes. They cleaned up the view but weren’t always kind to airflow or drive access.
Modern cases refined the idea. Removable shroud panels, larger rubber-grommet cutouts, side cable channels, vertical GPU brackets, and back-connect motherboard support all grew from the same goal: hiding wiring without making the build harder. The best new cases don’t just hide the PSU. They give you enough room behind the tray to route thick 24-pin and GPU cables cleanly.
Why it works this way
A PC case has to balance airflow, noise, cable storage, dust filtration, and appearance. The PSU is one of the least attractive components to show because even modular units still need thick cables, and unused leads need somewhere to go. A shroud gives case designers a defined space for that mess. It also creates a flat visual line across the bottom of the build, which makes RGB lighting and glass panels look cleaner.
Airflow is the caveat. The PSU usually has its own intake on the bottom of the case, protected by a dust filter, so it doesn’t need to share air with the GPU. But front intake fans may need to push air across the shroud edge toward the graphics card. If the shroud is too tall, too closed, or paired with a sealed front panel, the GPU can run hotter. That’s why airflow-focused cases often perforate the shroud or leave front cutouts.
When you’d want this
You’d want a PSU shroud if the build has a glass side panel, lots of modular cable length, SATA drives, RGB lighting, or a clean showcase layout. It makes the difference between a build that looks finished and one that looks like a cable bundle with a motherboard attached. For first-time builders, it also gives you a forgiving place to tuck excess cable instead of perfectly combing every lead.
The Regetek Rolling Hard Case at $279.99 with a 4.6 rating isn’t a PC case or PSU shroud product, so treat it as unrelated protective storage rather than a chassis recommendation. Its listed dimensions, 32.5 x 20.5 x 13 inches outside and 28.94 x 17.72 x 9.65 inches inside, describe an equipment case with foam, wheels, a retractable handle, shockproofing, and waterproofing. Useful for gear transport, but not for hiding a desktop PSU.
Pros
- IP67 seal with air-lock valve keeps kit dry during rain, dust, or airline handling
- Pick-and-pluck foam in four layers adapts to cameras, lenses, tools, or medical gear
- Dual padlock holes on the latches allow TSA locks for checked-luggage transport
Cons
- No verified owner fedback at time of writing, so long-term wheel and latch durability is unproven
- Case with foam weighs 32.73 lb empty, which pushes loaded weight near airline checked limits
- Standard-density pluck foam is less protective than custom cut foam for heavy optics or precision instruments
The Regetek Rolling Hard Case is a mid-size wheeled transport case in the Pelican-style category, measuring 32.5 by 20.5 by 13 inch externally with a 28.94 by 17.72 by 9.65 inch usable interior. It targets photographers, drone operators, field service techs, and musicians who need airline-checkable protection for fragile gear.
The defining feature is the IP67 rating paired with a full-length steel hinge and double-latch closure. Cases at this size and seal class typically survive shallow submersion to about 3.3 ft, and the air-lock valve equalizes pressure after altitude changes so the lid does not vacuum shut. Owner feedback is unavailable, so real-world seal longevity cannot be confirmed.
Trade-offs are typical at this tier. The 32.73 lb empty weight with foam eats into airline allowances before gear is loaded, and standard-density pick-and-pluck foam is a compromise between adaptability and impact absorption compared with custom cut foam. Wheels and retractable handles on cases in this class are also the most common long-term failure points.
Buy this if you need a lockable, waterproof rolling case sized for a full mirrorless kit, mid-size drone, or field tolset. Skip this if your payload exceeds the28.94 inch interior length, or if you need documented drop-test certification for professional broadcast use.
Dimensions and weight: Exterior measures 32.5 by 20.5 by 13 inch with an internal usable volume of 28.94 by 17.72 by 9.65 inch. Total weight with foam is 32.73 lb, which is consistent with rotomolded polymer cases in this size class and leaves useful payload room for airline checked baggage.
Sealing and ingress protection: The case is rated IP67 with an O-ring gasket, watertight buckles, and an air-lock pressure equalization valve. Manufacturer states safe submersion to 3.3 ft, and the valve prevents lid suction after temperature or altitude changes during air transit.
Foam configuration: Interior includes four pick-and-pluck layers of standard density foam, one top egg-crate layer, and one bottom pad. The pluck grid lets you shape custom cavities without a knife, though density is not specified in pounds per cubic foot.
Structure and security: Shell uses high-impact polymer with one full-length steel hinge instead of two-point hinges, a double-latch system, dual padlock holes for redundant locking, a heavy-duty top handle, integrated whels, and a retractable pull handle. Waranty is stated at 2 years including replacement parts.
What to look for in a PSU shroud
Look for cable cutouts in the right spots. The 24-pin cable needs a clean route near the motherboard edge, GPU power should come up near the card, and front-panel cables need a path that doesn’t cross the whole case. Rubber grommets help hide the holes, but placement matters more than material. A removable front shroud section is a bonus if you’re installing a thick radiator or long PSU.
Also check drive cage access. Some cases mount 3.5-inch cages under the shroud, which is fine until you need to swap a drive and the PSU cables are blocking the tray. Perforation is another plus. A vented shroud can feed air to the GPU or let heat escape from the lower chamber. If the shroud is completely sealed and the case front is restrictive, temps can suffer. Don’t buy just on looks.
Common misconceptions
The first misconception is that every PSU shroud improves airflow. It doesn’t. It can make airflow cleaner if the case is designed well, but a solid wall in front of the GPU can hurt thermals. The second is that shrouds are only for expensive cases. Plenty of budget cases include them now, though the cheapest versions may be fixed in place with awkward cutouts.
Another misconception is that a shroud replaces good cable management. It hides a lot, but cables still need enough room behind the motherboard tray, and thick GPU cables still need gentle bends. A case with back-connect support, like the Lian Li example, can reduce visible cabling even further, but you’ll still spend time routing everything. No shortcut is magic.
There are several shroud styles. A full-length shroud runs from the rear of the case to the front panel and hides nearly everything below the motherboard. A partial shroud leaves a front gap for radiators or thick fan setups. Some cases add removable top plates so you can expose an SSD mount or route a vertical GPU cable. None is automatically best; the right layout depends on whether the build prioritizes airflow, storage, radiators, or appearance.
Measure the PSU area before buying. A long power supply plus stiff 12V-2×6 GPU cables needs more room than the bare PSU length suggests. If the drive cage sits directly in front of the supply, cable bends can get ugly fast. That is where modular shroud panels and removable cages help. They turn a cramped build into a manageable one, and you will not have to force cables against a metal edge.
Frequently asked
Does a PSU shroud make my PC cooler?
Not by itself. It can help organize airflow if the case has good front intake and a bottom-filtered PSU intake, but it can also block air if poorly designed. Check for vents, front cutouts, and clear GPU airflow. Case design matters more than the shroud alone.
Can I remove a PSU shroud?
Sometimes. Some cases use removable shroud panels or modular sections, while others rivet the shroud into the frame. If it’s riveted, removing it means drilling and likely voiding parts of the warranty. Buy a case with the layout you want instead of planning surgery.
Do I need a PSU shroud with a modular power supply?
You don’t need one, but it still helps. Modular supplies reduce unused cables, yet the 24-pin, CPU, GPU, SATA, and front-panel leads still take space. A shroud gives excess length somewhere to live and keeps the visible chamber cleaner, especially behind glass.
Will a PSU shroud fit every power supply?
No. Long high-wattage PSUs can collide with drive cages or cable space under the shroud. Check the case’s listed PSU clearance and subtract space for cables. If you use a long unit, a removable drive cage or front shroud section makes the build much easier.
Is back-connect support better than a PSU shroud?
They’re different ideas that work well together. Back-connect motherboards move power headers to the rear, hiding cables behind the tray. A PSU shroud hides the power supply and excess cable length. A case that supports both can look extremely clean, but compatibility with your motherboard is required.
