You mounted a big cooler on a hot Intel chip, followed every instruction, and the temperatures still spike higher than the reviews promised. Before you blame the paste or the pump, there’s a small mechanical detail that gets overlooked: CPU cooler offset. It’s the idea that centering your cooler perfectly over the socket isn’t always the best place for it.
The reason is that modern CPUs don’t heat evenly. The warmest silicon usually sits off-center, so a cooler shifted slightly toward that hot zone can pull more heat than one sitting dead center. This matters most on power-hungry chips like Intel’s i9 parts, where every degree of headroom counts. We researched how offset works, why it exists, and when it’s worth bothering with.
The short answer
CPU cooler offset means deliberately mounting your cooler’s cold plate or water block shifted a few millimeters away from the exact center of the CPU, positioning it over the chip’s real hotspot instead. On many desktop processors the actual heat-producing cores don’t sit in the middle of the package. They’re clustered toward one side. Aligning the densest part of the cold plate over that cluster improves contact where it matters and drops peak temperatures, often by several degrees.
This is squarely a concern for chips that run hot and dense, like the Intel Core i9-14900K at $469 with its 4.7 owner rating. Push a flagship like that hard and the hotspot becomes the limiting factor. A small offset mount can be the difference between thermal throttling and a stable boost clock.
Pros
- Industry-leading 6.0GHz out-of-the-box boost clock for single-threaded applications.
- Massive 32-thread capacity excels in multi-threaded workloads like 4K video rendering and 3D modeling.
- Compatible with existing LGA 1700 motherboards via BIOS updates, extending the life of 600-series boards.
- Integrated Intel UHD Graphics 770 provides a fallback for troubleshooting and QuickSync hardware acceleration.
- Highly binned silicon offers significant tuning potential for users with high-end cooling solutions.
Cons
- High 253W maximum turbo power requires premium 360mm or 420mm AIO liquid cooling for sustained loads.
- Aggressive stock voltage curves can lead to thermal throttling on standard air coolers or entry-level AIOs.
- Final generation for the LGA 1700 socket, limiting future CPU upgrade paths without a motherboard change.
- Significant power draw necessitates a high-quality PSU with sufficient 12V EPS overhead.

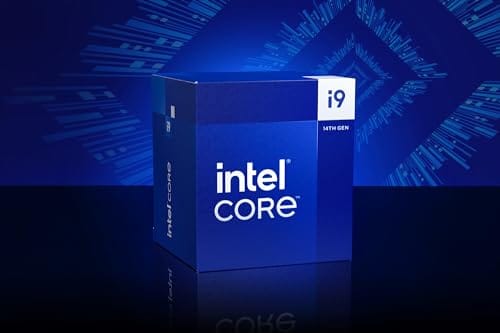

The Intel Core i9-14900K represents the enthusiast-tier peak of the Raptor Lake Refresh lineup, targeting professional creators and gamers who require the highest possible clock speeds. With 24 cores and 32 threads, it is designed to handle simultaneous gaming, streaming, and recording without the performance degradation typically seen on lower-core-count processors.
Technical performance is defined by its 6.0GHz Thermal Velocity Boost, a milestone frequency that pushes the limits of the LGA 1700 platform. In real-world gaming, this translates to high frame ceilings in 1080p and 1440p scenarios, while the 16 Efficient-cores provide the necessary throughput for background tasks and heavy multi-threaded productivity suites like Adobe Premiere Pro and DaVinci Resolve.
Build quality and reliability are consistent with Intel's high-end silicon, though the chip is notoriously demanding regarding thermals. The integrated heat spreader (IHS) must dissipate significant heat during 250W+ bursts, making the choice of thermal interface material and mounting pressure critical for maintaining stability under full load.
The primary trade-off for this level of performance is power consumption and heat. Users should expect the processor to hit its thermal junction maximum (TjMax) quickly during synthetic stress tests if paired with inadequate cooling. It is a processor that requires manual tuning of power limits (PL1 and PL2) to balance efficiency and performance effectively.
Final verdict: Buy this processor if you are an enthusiast with a high-end Z790 motherboard and a 360mm+ liquid cooler who needs the absolute fastest gaming and multitasking performance currently available on the Intel platform. Skip this if you prefer a plug-and-play experience with low power draw or are building in a small form factor case with limited cooling clearance.
| Cores / Threads | 24 (8P + 16E) / 32 |
| Max Turbo Frequency | 6.0 GHz |
| Intel Smart Cache (L3) | 36 MB |
| Total L2 Cache | 32 MB |
| Processor Base Power | 125 W |
| Max Turbo Power | 253 W (Listed as 250W in specs) |
| Socket Support | LGA 1700 |
| Memory Support | DDR5 5600 / DDR4 3200 |
| PCIe Lanes | 20 Total (Up to Gen 5.0) |
| Integrated Graphics | Intel UHD Graphics 770 |
Motherboard and Chipset: The i9-14900K requires an LGA 1700 socket. While it is compatible with older Z600-series motherboards, a BIOS update is mandatory for the system to POST. For optimal power delivery and PCIe 5.0 support, a high-end Z790 motherboard with robust VRMs is strongly recommended to handle the 250W+ power excursions.
Cooling Requirements: Due to the 6.0GHz boost clock and high TDP, air cooling is generally not recommended for this tier unless using a flagship dual-tower cooler with a contact frame. A 360mm or 420mm All-In-One (AIO) liquid cooler is the standard recommendation to prevent thermal throttling during intensive rendering or compilation tasks.
Memory Selection: This CPU supports both DDR4 and DDR5, but the motherboard determines which one you must use. For maximum performance in modern titles and professional apps, pairing this with a DDR5-7200+ kit on a Z790 platform is the ideal configuration, though DDR4 remains a viable cost-saving path for those upgrading from 12th gen.
Power Supply Guidance: Given the potential for 300W+ spikes from the CPU alone, especially when overclocked, a high-quality 850W or 1000W 80 Plus Gold PSU is recommended. Ensure your PSU has at least two 8-pin EPS (CPU) connectors to provide stable voltage to the motherboard's power phases.
Operating System: To properly utilize the Intel Thread Director and the hybrid core architecture, Windows 11 is the recommended operating system. Windows 10 may not efficiently schedule tasks between the P-cores and E-cores, potentially leading to inconsistent performance in multitasking scenarios.
The longer explanation
To understand offset, picture what’s under the metal lid, called the integrated heat spreader, or IHS. The silicon die beneath it isn’t a uniform hot square. On Intel’s recent hybrid designs, the performance cores that produce the most heat sit grouped in one region of the die, while efficiency cores and cache take up the rest. That creates a concentrated hotspot rather than an even glow.
A cooler moves heat quickest right at the center of its cold plate, where contact pressure and coolant flow peak. If that center sits over the cache instead of the hot cores, you’re cooling the wrong spot. Shifting the mount toward the core cluster, the offset, puts your best contact where the heat actually is. On the Core i9-13900K at $587.77, rated 4.8, with its 8 performance cores and 16 efficiency cores across a 36MB cache, that hotspot geometry is exactly why offset mounting gained traction.
History: how we got here
Offset mounting wasn’t a thing when CPUs were small and symmetrical. Older chips had modest core counts and heat that spread fairly evenly, so a centered cooler was fine. Enthusiasts didn’t think twice about it. The die sat roughly in the middle of the package, and so did the cooler.
That changed as core counts exploded and dies grew rectangular and lopsided. When Intel’s high-core-count desktop chips arrived, community members with thermal cameras and careful measurements noticed the hotspot had drifted off-center. Cooler makers responded by selling contact frames and offset mounting kits. What started as an overclocker’s trick has become common advice for anyone running a top-end chip at full power.
Contact frames pushed the idea into the mainstream. Intel’s newer sockets clamp the CPU with a loading mechanism that can bow the IHS slightly, worsening contact in the middle. Third-party frames replace that mechanism, flatten the lid, and in some designs shift the block toward the cores at the same time. So the offset conversation grew out of two problems solved by one part, which is why you’ll see the two ideas discussed together so often.
Why it works this way
It comes down to thermal resistance and contact quality. Heat flows from the die, through the IHS, across a thin paste layer, into the cold plate. Every one of those steps adds resistance. The path is most direct and efficient right beneath the strongest part of the cooler. Move that strong zone over the hotspot and you shorten the effective path for the heat that matters most.
There’s also mounting pressure. Cold plates aren’t perfectly flat, and pressure isn’t uniform across their surface. The center usually presses hardest. So offset does double duty: it aligns peak pressure and peak cooling capacity with peak heat. That’s why a few millimeters can yield a real, repeatable drop in the reported hotspot temperature rather than a rounding-error change.
The gains aren’t uniform, though, and that’s worth stressing. Two people with the same chip and cooler can see different numbers because IHS flatness, paste application, and ambient room temperature all stack on top of the offset itself. Offset is one variable among several. It tends to help most on the exact chips where the hotspot is sharpest and the wattage is highest, and it fades toward irrelevance on cooler, lower-power parts. Treat it as fine-tuning, not a magic switch.
When you’d want cooler offset
You’d want offset when you’re running a hot, high-power chip near its limits and chasing every last degree. Overclockers, folks with sustained heavy workloads, and anyone whose flagship keeps brushing its thermal ceiling are the main audience. If your temperatures are already comfortable at stock, offset is optional polish, not a fix you need.
The chips that benefit most are exactly the ones people push hardest, like the $469 Core i9-14900K. If you’re still choosing the processor at the heart of your build, our guides to the best gaming CPUs and the best CPU for streaming can help you match the chip to your workload before you ever worry about mounting angles.
Think about your cooler, too. Offset only pays off when the cooling hardware is already strong enough to matter. Pairing an offset frame with a beefy air tower or a large radiator AIO makes sense on a chip like the 4.8-rated i9-13900K, which draws serious power under a 24-core load. Bolting an offset kit onto a cheap cooler that’s already maxed out won’t rescue it. The technique refines a capable setup rather than replacing one.
Pros
- Massive multi-threaded performance for 4K video editing, 3D rendering, and complex data science workloads.
- High 5.8 GHz peak frequency provides excellent single-core performance for gaming and CAD applications.
- Integrated UHD Graphics 770 serves as a reliable backup for troubleshooting or non-gaming productivity setups.
- Broad platform compatibility across two motherboard generations and two different memory standards.
Cons
- High 125W base power and significant peak wattage require a high-end 360mm AIO or custom loop cooling.
- Requires a BIOS update on many Intel 600 series motherboards before the system will POST.
- Platform longevity is limited as LGA1700 is an established socket nearing the end of its release cycle.
The Intel Core i9-13900K represents the pinnacle of the 13th Gen Raptor Lake lineup, positioned as a flagship solution for users who refuse to compromise. With a total of 24 cores and 32 threads, it is specifically engineered for enthusiast gamers, streamers, and heavy content creators who frequently run demanding applications like Adobe Premiere Pro, DaVinci Resolve, or Blender.
The standout technical achievement here is the refined hybrid architecture. By pairing 8 high-frequency Performance-cores with 16 Efficiency-cores, the 13900K manages heavy compute loads without sacrificing the responsiveness of background applications. In real-world gaming, this typically translates to higher 1% low frame rates and smoother overall performance, especially when multitasking with OBS or Discord in the background.
Thermal management is a critical consideration for this chip. While the 125W base power seems manageable, the processor is designed to scale its power consumption significantly to maintain the 5.8 GHz boost clock. Users should expect high operating temperatures under sustained all-core loads, necessitating a robust cooling solution and a high-airflow case to prevent thermal throttling.
An honest trade-off for this level of performance is the power draw and the resulting heat output. This is not a 'set and forget' chip for budget cooling or small form factor builds without careful undervolting or power limiting. Additionally, while the support for DDR4 is a welcome cost-saving measure, the highest performance tiers are only unlocked when paired with high-frequency DDR5 memory.
Buy this if you are building a top-tier workstation or gaming rig and already have a 360mm liquid cooler and a high-wattage power supply. Skip this if you are primarily gaming at 4K where the GPU is the bottleneck, or if you prefer a more power-efficient system with lower cooling requirements.
| Feature | Specification |
|---|---|
| Core Count | 24 (8 P-cores + 16 E-cores) |
| Thread Count | 32 |
| Max Turbo Frequency | 5.8 GHz |
| P-core Base Frequency | 3.0 GHz |
| E-core Base Frequency | 2.2 GHz |
| Intel Smart Cache (L3) | 36 MB |
| Total L2 Cache | 32 MB |
| Processor Base Power | 125 W |
| Memory Support | DDR5 5600 / DDR4 3200 |
| PCIe Revision | 5.0 and 4.0 |
| Total CPU PCIe Lanes | 20 |
| Socket Support | LGA1700 |
| Integrated Graphics | Intel UHD Graphics 770 |
Socket and Chipset: This processor uses the LGA1700 socket. It is natively compatible with Intel 700 series motherboards (Z790, H770, B760). While it works with 600 series boards (Z690, H670, B660, H610), a BIOS update is almost certainly required for the system to boot if the board was manufactured before the 13th Gen launch.
Cooling Requirements: Given the 5.8 GHz boost clock and high core count, a premium 360mm or 420mm All-In-One (AIO) liquid cooler is strongly recommended. High-end dual-tower air coolers may suffice for gaming but will likely lead to thermal throttling during intensive multi-threaded rendering or stress testing.
Memory Selection: The i9-13900K supports both DDR4 and DDR5, but this is determined by your motherboard choice. For a flagship build, pairing this CPU with DDR5 5600MT/s or higher is recommended to avoid bandwidth bottlenecks in memory-sensitive applications and modern games.
Power Supply Guidance: Due to the high transient power spikes typical of i9 processors, ensure your PSU has sufficient headroom. For a build featuring this CPU and a high-end GPU like an RTX 4080 or 4090, a minimum of an 850W or 1000W 80 Plus Gold power supply is advised.
Operating System: To properly utilize the Intel Thread Director for efficient task scheduling between P-cores and E-cores, Windows 11 is highly recommended. While Windows 10 is supported, it may not always assign tasks to the optimal core type, potentially impacting performance.
What to look for in an offset mounting solution
Not every cooler supports offset, so start with compatibility. Some AIO and air coolers ship with a contact frame or offset bracket designed for a specific socket, which is the cleanest route. These frames also fight the slight IHS bending that Intel’s newer sockets can cause, so you get better flatness and a hotspot-aligned mount in one part. Check that any frame or kit lists your exact socket.
If your cooler doesn’t offer an official offset option, some mounting hardware allows a small shift within its tolerance, but don’t force it. A cracked die isn’t worth two degrees. Match your cooling ambition to the chip too. A high-end i9 justifies the effort, while a cooler chip may not. Our best budget CPU picks highlight parts that stay cool without any of this fuss.
Common misconceptions
The first myth is that offset gives huge gains for everyone. It doesn’t. On a cool-running chip the improvement is tiny, sometimes within measurement noise. Offset shines on dense, high-wattage processors, not on modest ones. The second myth is that bigger offset is always better. It isn’t. Shift too far and you pull the cold plate off the hotspot entirely, making things worse.
People also confuse offset with simply using more paste or a stronger cooler. Those are separate levers. Offset is about position, not quantity or capacity. And it’s not a substitute for a bad mount. If your cooler is uneven or your paste spread is poor, fix that first. Offset refines a good installation, it doesn’t rescue a sloppy one.
Frequently asked
How much does cooler offset actually lower temperatures?
On a hot chip like a flagship i9, owner reports and community measurements commonly show a few degrees of improvement at the hotspot, sometimes more with a proper contact frame. On cooler processors the gain shrinks toward nothing. Your mileage depends on the chip, the cooler, and how hard you push it.
Is offset mounting safe for my CPU?
Yes, when you use hardware designed for it, like a socket-specific contact frame or a cooler that officially supports offset. The danger is forcing a shift beyond what your mount allows or applying uneven pressure. Stick to purpose-built kits and follow the torque guidance and you’ll be fine.
Which direction should I offset the cooler?
Toward the hotspot, which on Intel’s hybrid desktop chips generally sits away from the geometric center of the IHS. Contact frames built for a given socket are already engineered to nudge the block in the right direction, so you don’t have to guess. Check community mapping for your specific processor.
Do I need offset if I have a big AIO?
Not necessarily. A capable 360mm AIO may keep even a hot chip in check without offset. It becomes worthwhile when you’re overclocking or the hotspot keeps hitting the ceiling under sustained load. If your temperatures are already fine, you can skip it.
Does offset help AMD CPUs too?
It can, but the benefit depends on that chip’s die layout, and the effect is usually smaller than on Intel’s large hybrid dies. The concept is identical: align the cooler with the real hotspot. Just confirm your socket has a supported offset option before you try it.
