You smell it before you see it: that faint burnt-plastic odor near your GPU, and then you spot the tell, a slightly browned or warped 12VHPWR connector where the power cable meets the card. It’s one of the scarier failures in modern PC building because it can happen quietly, and left alone it risks the cable, the connector, and sometimes the card itself. The good news is that most melting cases trace back to a handful of fixable causes, and you can address every one of them without special gear. If your power supply is the weak link, our guides to the best 1000W power supply and the best modular PSU for a gaming PC 2026 are worth a look while you diagnose.
This walkthrough covers the real reasons a 12VHPWR connector melts, how to check each one safely, and what to replace when a part is already damaged. We’ll move from the quick 30-second look to the deeper causes, then to prevention so it never happens twice. Power off and unplug the system before you touch anything, because a melted connector means heat has already been where it shouldn’t.
First check the obvious
Before you assume the worst, do a fast visual pass. Shut the PC down, flip the PSU switch off, and pull the power cord. Then look closely at both ends of the 12VHPWR cable, the plug at the GPU and the plug at the power supply or its side panel. You’re hunting for discoloration, a melted shroud, pins that look darker than their neighbors, or a connector that isn’t sitting flush.
Give the GPU-side plug a gentle wiggle. If it moves or you can see a gap between the connector and the card’s socket, that’s your prime suspect right there. A connector that clicked but wasn’t fully seated is the single most common trigger for these failures. If nothing looks or feels off and the smell was a one-time thing, keep reading anyway, because heat damage can hide inside the housing where you can’t easily see it.
While you’re at it, check the power supply side of the run too. On a modular unit the 12VHPWR cable plugs into the PSU’s side panel, and a loose or half-seated plug there causes the same imbalance as a loose plug at the card. Confirm both ends sit flush. If your card draws 450W or more, that current has to pass evenly across all twelve conductors, and any weak link on either end turns into a hot spot fast.
Cause #1: The connector was never fully seated
The 12VHPWR standard packs a lot of current through twelve small pins in a tight space, and it’s unforgiving about a partial connection. If the plug isn’t pushed in until it clicks, only some pins carry good contact, and those pins shoulder more than their share of the load. More current through fewer pins means more heat, and that heat concentrates until the plastic softens and the terminal deforms.
The fix is disciplined seating. With the system unplugged, remove the cable, inspect both plug and socket for debris, then push the connector straight in until you hear and feel a firm click. No angle, no half-push. Many cards hide the connector behind the side panel or under a tight air cooler, so route the cable first with slack, then seat it. If the housing is already melted, do not reuse it. A compromised connector will fail again even seated perfectly, so replace the cable or the supply feeding it.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.

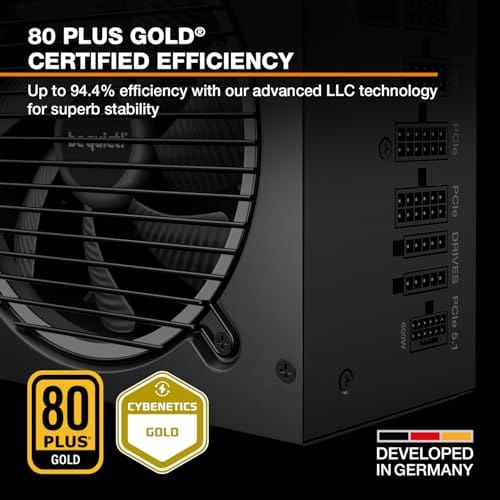

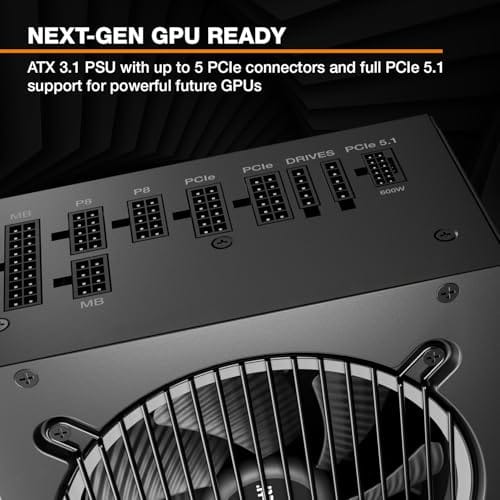

The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
A modern ATX 3.1 supply like the be quiet! Pure Power 13 M 1000W is a sensible replacement when the old unit’s cable is scorched. At $139.90 with an 80 Plus Gold rating and native PCIe 5.1 support, it ships with a proper 12V-2×6 style connector designed for these high-draw cards, and its 1000W headroom leaves margin for an overclocked GPU. A clean, correctly rated cable from a fresh supply removes the guesswork of reusing a damaged one.
Cause #2: Tight cable bends and sideways strain
Even a well-seated connector can overheat if the cable is bent hard right at the plug. Sharp bends within an inch or two of the connector pull the pins sideways inside the housing, which reduces contact pressure on some terminals. The result is the same imbalance as a loose plug: a few pins do too much work and cook. Cramped cases with tempered-glass side panels make this worse, because the panel presses the cable into a tight radius.
Give the connector room to breathe. Nvidia and cable makers generally advise keeping any bend at least 35mm, roughly an inch and a half, away from the plug. Route the cable so it exits the GPU straight, then curves gently after it clears the housing. If your case is too shallow for that, a 90-degree adapter designed for the standard or a smaller form factor supply can help. The point is to remove sideways load from the pins so every one of the twelve shares the current evenly.
Cable management crosses into safety here, which is unusual for PC building. In most of the machine, a messy bundle is just ugly. At the 12VHPWR plug, a hard bend is a genuine hazard. So when you tidy the loom behind the motherboard tray, leave the GPU power cable with a gentle, unforced curve and resist the urge to zip-tie it tight against the plug for looks. A slightly less pretty run that keeps the pins square is the safer trade every time.
Cause #3: A worn cable, cheap adapter, or aging power supply
Connectors wear out. Every time you plug and unplug the cable, the terminals lose a little of their grip, and after enough cycles the contact pressure drops below what a 450W-plus card needs. Reused cables from an old build, no-name adapters, or a daisy-chained pile of 8-pin-to-12VHPWR converters all raise the risk. So does a power supply that predates the ATX 3.0 spec and was pushed into service with a bundled adapter it wasn’t really designed for.
If the terminals look loose, the housing shows heat, or you’re running a questionable adapter, replace the whole path with a native cable from a modern supply. Match the wattage to your card with real headroom, don’t just meet the minimum. For a small-form-factor build where space forces tight routing, a compact high-efficiency unit is the safer bet.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.
The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.
The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.
Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
The Corsair SF750 (2024) is a strong pick for that scenario. At $159.99 it’s a fully modular SFX unit with an 80 Plus Platinum rating, ATX 3.1 compliance, and PCIe 5.1 readiness, so it brings a native connector rated for the job into a small case where a bulky ATX supply won’t fit. Its low-noise design and 750W output suit a compact high-end build without the cable clutter that leads to strained connectors.
Preventive maintenance
Once you’ve fixed the immediate problem, a little routine keeps it from returning. Every time you open the case for cleaning or an upgrade, reseat the 12VHPWR connector with a firm click and confirm it sits flush. Check the cable’s bend radius while you’re in there. If you ever notice warmth near the plug after gaming, shut down and inspect it, because warmth is the early warning before a melt.
Avoid the habit of unplugging and replugging the cable more than you must. Each cycle wears the terminals. And skip the temptation to run a top-tier GPU off a marginal supply with a converter octopus. A single native cable from a properly rated unit is worth more than any adapter stack, and it’s the cheapest insurance against a repeat failure.
It also pays to monitor your GPU’s power draw with software during heavy gaming sessions. If a card rated for 450W is pulling close to its limit and the connector runs warm, that’s the load telling you the margins are thin. Cards with a factory overclock draw more than reference models, so a unit that was fine for a stock card can sit right at the edge once you push clocks. Building in wattage headroom keeps the connector cooler under sustained load.
When it’s not fixable: what to replace
Some damage is past saving. If the connector housing is visibly melted, warped, or the pins are discolored, that cable is done, and so is any socket it charred. Never reuse a burnt connector, since the deformed terminals will never seat cleanly again. A scorched PSU-side cable also calls the power supply into question, especially if it’s an older non-ATX-3 unit that was already working at its limit.
The safe rebuild is a new native cable, or a new supply if the damage reached the unit. Choose an ATX 3.1 model with the 12V-2×6 connector, which was redesigned with longer conductor pins and shorter sense pins to lower the odds of a partial connection. If your GPU’s own socket shows melting, that’s a card-level repair or warranty claim, and you should stop using it until the card is checked. Owners who match a high-draw card to the right supply rarely see this failure at all, which is why picking the correct unit up front matters. Our rundown of the best PSU for a 9800X3D build covers wattage matching in more detail.
Tools and parts needed
You don’t need much. A flashlight or your phone’s light to inspect the pins, a soft brush or compressed air to clear debris from the socket, and a fresh native 12VHPWR or 12V-2×6 cable are the essentials. If the power supply itself is damaged or underrated, a modern ATX 3.1 unit rounds out the parts list. Keep a small tray for screws when you pull the supply, and work with the system fully unplugged every time. A small mirror can also help you see the seated plug behind a tight side panel without pulling the whole card.
A few more questions
Is a melted 12VHPWR connector dangerous to keep using?
Yes, stop using it. A melted or warped connector means heat has already deformed the terminals, so contact will only get worse, and worse contact means more heat. That’s a fire and hardware risk, not a cosmetic issue. Power the system off, unplug it, and replace the cable before running the GPU again. If the card’s own socket is damaged, the card needs professional attention, not another plug attempt.
Does buying an ATX 3.1 power supply actually prevent this?
It helps a lot. ATX 3.1 units ship with the revised 12V-2×6 connector, which has longer power pins and shorter sense pins so the card won’t draw full load unless the plug is properly seated. Pair that with a native cable rated for your GPU and real wattage headroom, like the be quiet! Pure Power 13 M 1000W, and you remove the two biggest risk factors. Seating discipline still matters, but the newer standard stacks the odds in your favor.
Can I just use the adapter that came with my GPU?
You can, but a single native cable from an ATX 3 supply is cleaner and safer. Bundled adapters that split several 8-pin plugs into one 12VHPWR add junctions and bulk, and that bulk forces tighter bends near the connector. If you already own a modern supply, use its dedicated 12VHPWR cable instead. If your only option is the adapter, at least keep the bend radius generous and seat it with a firm, confirmed click every time.
