Overclocking punishes weak power. Push a modern CPU or GPU past stock, and current draw spikes in short, brutal bursts that a cheap power supply just can’t ride out cleanly. Voltage sags, transients trip protections, and your carefully tuned overclock crashes for reasons that look nothing like a power problem. In a small-form-factor build the stakes climb higher, because SFX units pack all that delivery into a much tighter box.
So the search for the “best SFX power supply for overclocking” is really a search for stable, clean, headroom-rich power in a compact shell. We researched five units across price and wattage tiers, from an $88 850W model up to platinum-rated 1000W options. Not every pick is a literal SFX unit, and we flag that below rather than mislabel it. If you’re planning the rest of the rig, our notes on the best GPU for 1440p and the best motherboard for overclocking line up with these choices.
Pros
- ATX 3.1 compliant with PCIe 5.1 support, resists transient spikes from RTX 50 and RX 9000 series GPUs.
- Zero RPM Mode eliminates fan noise at low and medium loads, a real advantage in acoustically sensitive SFF builds.
- Fully modular design with short SFX cables reduces cable management friction in sub-10-liter cases.
- 105 degree C Japanese capacitors indicate quality component selection typical of high-tier SFX units.
Cons
- Limited owner feedback at time of writing; real-world noise, ripple, and transient performance are unverified by community data.
- Short SFX cables are unsuitable for mid-tower or full-tower cases without aftermarket cable extensions.
- 750W ceiling may fall short for extreme SFF builds pairing a 300W-plus TGP GPU with a high-core-count CPU.

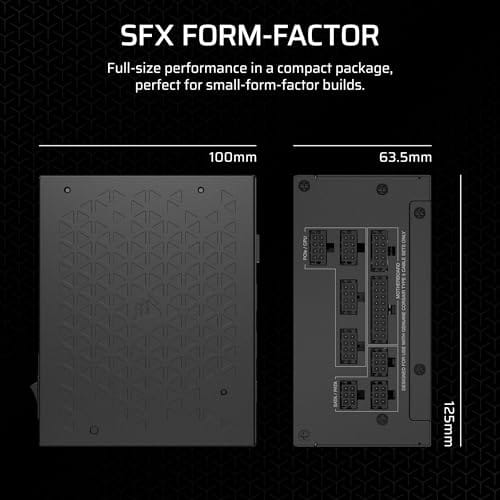

The Corsair SF750 (2024) is a high-end SFX PSU targeting SFF builders who need substantial wattage in a compact footprint. With 80 Plus Platinum certification and ATX 3.1 compliance, it sits at the upper tier of the SFX market, aimed at builders pairing it with current-gen discrete GPUs inside sub-10-liter cases.

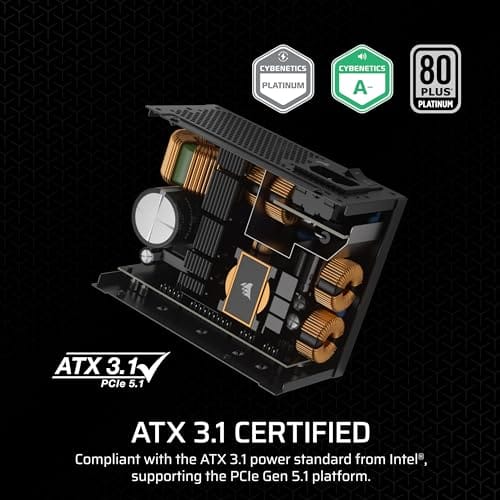

The most defining specification here is ATX 3.1 compliance combined with PCIe 5.1 readiness. This means the unit is rated to handle the sharp transient power spikes that RTX 50 and RX 9000 series GPUs can produce, where non-compliant PSUs may trigger overcurrent protection. At 750W, it covers most single-GPU SFF configurations without derating concerns.
The honest trade-off is the review data gap. At time of writing, no substantial owner feedback exists to validate Corsair's noise and ripple claims under real load. The Zero RPM Mode claim and 92mm fan acoustics are based on spec sheets only. Buyers should also note that SFX cable lengths are intentionally short and will not reach connectors in mid-tower or larger cases without extensions.
Buy this if you are building an SFF PC around a single high-TGP GPU and need confirmed ATX 3.1 compliance in a modular SFX unit. Skip this if you want a large ATX case build, need more than 750W for a dual-component high-wattage system, or require extensive owner testing before purchasing.
Form Factor and Mounting: This is a standard SFX form factor PSU, not SFX-L. Verify your case specifies SFX compatibility before purchasing. An SFX-to-ATX bracket is included, allowing installation in ATX-footprint cases, though short cable lengths will require extensions in anything larger than a compact SFF enclosure.
Power Standard and Connector: ATX 3.1 compliant with PCIe 5.1 readiness. The unit supports the 12V-2x6 connector standard, relevant for RTX 40 and RTX 50 series GPUs as well as AMD RX 7000 and RX 9000 cards with high transient draw. Non-ATX 3.1 units can trigger OCP shutdowns above 150 percent peak load spikes.
Efficiency and Thermal Operation: 80 Plus Platinum certification indicates roughly 92 percent efficiency at 50 percent load under 115V. The 92mm PWM fan uses a fluid dynamic bearing and Zero RPM Mode activates at low loads, which in SFF cases where airflow is restricted can noticeably reduce system acoustic output.
GPU Wattage Pairing: At 750W, this PSU pairs appropriately with GPUs up to approximately 300W TGP when combined with a mid-range CPU. For a 320W-plus TGP GPU alongside a 65W-plus CPU, headroom becomes tight and a higher-wattage SFX unit should be considered instead.
Pros
- ATX 3.1 native readiness handles 12V-2x6 transient spikes on modern RTX 40and 50 series GPUs.
- 80 Plus Platinum plus Cybenetics Lambda A+ signals strong efficiency and low acoustic output.
- GaN MOSFETs and large ROG heatsinks target lower internal temperatures than reference platforms.
- Dual ball bearing fan and 0dB mode balance longevity with silent light-load operation.
- Long warranty at this eficiency tier reduces long-term ownership risk for high-end builders.
Cons
- Limited owner feedback at time of writing, so long-term coil whine and ripple data is thin.
- 1000W is overkill for mid-range GPUs like an RTX 4060or RX 7600 class card.
- Detailed specs including cable count, rail layout, and dimensions are not specified in source data.
The ROG Strix 1000W Platinum is a high-end ATX 3.1 fully modular PSU aimed at builders pairing a recent flagship or near-flagship GPU with a mainstream to high-end CPU. With 80 Plus Platinum and Cybenetics Lambda A+ ratings, it targets buyers who care about efficiency, acoustics, and transient headroom rather than the cheapest wat-per-dollar option.
The defining feature is the GaN MOSFET topology paired with ASUS' GPU-first voltage sensing. ASUS claims up to 30% better efficiency and up to 45% improved voltage delivery to the graphics card, which should translate into steadier rail behavior during GPU power spikes. Actual ripple and load-regulation numbers are not specified in source data.
Trade-offs are typical at this tier. 1000W is generous for a single RTX 4070 or 4080 class card but leaves less margin for dual high-TGP GPUs, which are rare anyway. Cable length, connector count, and dimensions are not specified, so case fitment in compact ATX or SFF chassis should be verified against the official datasheet before purchase.
Buy this if you are building a high-end ATX system around an RTX 40 or 50 series GPU and want ATX 3.1 transient tolerance with quiet 0dB behavior at idle. Skip this if your GPU sits below 250W TGP, since a 750W Gold unit will cover that load with less spend.
Standard and eficiency: ATX 3.1 compliant with 80 Plus Platinum certification and Cybenetics Lambda A+ acoustic rating. This pairing indicates high efficiency across typical 20to 100 percent load bands and low measured fan noise, which matters for builds targeting sub-30 dBA idle acoustics.
GPU pairing: 1000W total capacity leaves comfortable transient headroom for a single 320 to 450W TGP GPU such as an RTX 4080Super or RTX 4090class card. ATX 3.1 and 12V-2x6 readiness address the power excursion spec that olderATX 2.x units can trip on.
Cooling and acoustics: Uses a dual ball bearing fan with 0dB technology for passive operation under light gaming or desktop loads. ROG heatsinks over primary switching components target lower component temperatures than reference designs. Exact fan size, curve, and dB ratings are not specified in source data.
Cabling and chassis fit: Fully modular cabling reduces clutter in mid-tower and full-tower ATX builds. Exact PSU length, native 12V-2x6 cable inclusion, PCIe 8-pin count, SATA count, and Molex count are not specified in source data, so confirm against the officialASUS spec sheet before committing to compact cases.
Pros
- Native 12V-2x6 connector on ATX 3.1 platform ready for RTX 40 and PCIe 5.1 GPUs.
- Handles power excursions up to 2000W transient, headroom for RTX 4080 and 4090 class spikes.
- Semi-passive zero-RPM mode below moderate load keps idle acoustics near inaudible.
- LLC topology with single 12V rail delivers stable voltage regulation for overclocked GPUs.
Cons
- Limited independent owner feedback available at time of writing, riple and hold-up data unverified.
- Only four PCIe 6+2-pin connectors, tight for legacy multi-GPU or high-CPU-EPS custom lop builds.
- 80 PLUS Gold trails Platinum and Titanium units at similar wattage on sustained efficiency.
The be quiet! Pure Power 13 M 1000W is a high-end ATX 3.1 PSU aimed at builders pairing a Ryzen 7000/9000 or Core Ultra CPU with an RTX 4070Ti Super,4080 Super, 4090, or RX 7900 XTX class GPU. It targets buyers who want native 12V-2x6 wiring and transient headroom without stepping up to Platinum-tier pricing.
The defining trait is ATX 3.1 compliance with power excursion handling up to double the rated 1000W, meaning brief 2000W spikes from modern GPUs should not trip OCP. Combined with the single 12V rail and LLC topology, this suits overclocked GPUs where transient behavior, not average draw, tends to triger shutdowns on older units.
Trade-offs are typical at this tier. 80 PLUS Gold is eficient but not Platinum, soustained heavy loads generate more heat than a higher-rated unit. Four PCIe 6+2-pin connectors is standard, though builders running EATX boards with dual EPS plus a 4x8-pin GPU adapter should verify cable counts against the modular panel before buying.
Buy this if you are building a single-GPU gaming or content rig around a 250-450W TGP card and want native 12V-2x6 without paying Platinum prices. Skip this if you need sub-audible acoustics under sustained full load, or if you already own a workingATX 3.0 unit with a 12VHPWR pigtail.
ATX standard: Full ATX 3.1 compliance with native 12V-2x6 connector integration, which corects the sense-pin issue found on early 12VHPWR cables. Supports PCIe 5.1 GPUs at spec, and handles transient power excursions up to 2000W, roughly double the 1000W continuous rating.
GPU pairing: Comfortable for GPUs in the 250W to 450W TGP range, including RTX 4080 Super (320W) and RTX 4090 (450W) with headroom for overclocking. Four PCIe 6+2-pin outputs cover legacy 8-pin GPUs; the native 12V-2x6 removes the need for a 4x8-pin adapter dongle.
Efficiency and cooling: 80 PLUS Gold rated up to 94.4% at optimal load, typically around 50% utilization. The 120mm be quiet! fan runs semi-passive with zero-RPM below a load threshold not specified by the manufacturer, so idle and light workloads should remain silent.
Cabling: Fully modular design, leting builders omit unused SATA and Molex leads. Exact cable lengths and connector counts beyond the four PCIe 6+2-pin and single 12V-2x6 are not specified in source material, verify against your case routing before purchase.
Pros
- Native 12V-2x6 connector avoids janky adapter setups on RTX 40 and 50 series GPUs.
- ATX 3.1 spec resists PCIe 5.1 transient spikes thatip cheaper PSUs into shutdown.
- Fully modular design simplifies cable management and reduces unused cable clutter in the case.
- Cybenetics Gold eficiency translates to lower idle draw and quieter fan behavior under mixed loads.
- Low-noise tuning and flexible embossed cables suit quiet-focused ATX builds.
Cons
- Limited owner feedback at time of writing makes long-term reliability hard to verify.
- 1000W is overkill for mid-range builds pairing with an RTX 4070 or below.
- Corsair does not publish specifics like OEM platform, fan bearing, or waranty term in the source listing.
The Corsair RM1000x is a high-end 1000W ATX 3.1 PSU aimed at builders running current-gen NVIDIA and AMD GPUs that pull heavy transient loads. Fully modular cabling and a native 12V-2x6 connector target buyers assembling RTX 4080, 4090, or upcoming 5080 class rigs where adapter dongles are a known pain point.
The defining feature is ATX 3.1 with PCIe 5.1 readiness paired with the direct 12V-2x6 cable. This maters because modern GPUs can briefly spike well above rated TGP, and olderATX 2.x units often shut down under those excursions. Cybenetics Gold efficiency up to 91% suggests low fan ramp at typical gaming loads based on category norms.
Trade-offs are typical at this wattage. 1000W is more than a single-GPU RTX 4070 or 4070 Super build needs, so you pay for headroom you may not use. The source listing does not specify OEM platform, hold-up time, ripple figures, waranty length, or fan bearing type, so independent bench data is worth checking before purchase.
Buy this if you are pairing a 300W plus GPU with aRyzen 9 or Core i9 and want native 12V-2x6 with transient spike compliance. Skip this if your GPU draws under 220W, where a 750W or 850W unit covers you with room to spare.
ATX standard and PCIe support: The unit isATX 3.1 compliant with PCIe 5.1 readiness, which is the spec written to handle GPU power excursions up to roughly 3x rated TGP for short durations. That makes it a match for RTX 40 and 50 series cards without derating the PSU.
GPU connector: A native 12V-2x6 cable runs directly from the PSU to the GPU, no4x8-pin to 16-pin adapter. This is the updated H++ pin design that mitigates the seating and thermal issues seen on early 12VHPWR implementations.
Wattage pairing: 1000W is the sensible flor for RTX 4090 and future5090 class GPUs paired with a 170W plus CPU like the Core i9-14900K or Ryzen 9 9950X3D. For a 4080Super or 5080 tier build, it leaves comfortable headroom for overclocking and transients.
Efficiency and cabling: Cybenetics Gold rated up to 91% efficiency, with fully modular embossed cables and low-profile combs. Modular design lets you omit unused SATA and Molex runs, which helps airflow in mid-tower ATX cases with restricted PSU shrouds.
Pros
- 80 PLUS Gold efficiency rating is clearly stated (at 115Vac input).
- Fully modular design helps reduce cable clutter and improves build serviceability.
- Smart Zero Fan feature prioritizes low noise at idle and light loads.
- Compact 140mm depth is helpful for cases with limited PSU shroud space.
- 10-year warranty is listed, which is strong for this wattage class.
Cons
- PCIe and CPU power connector counts and types are not specified in the listing, so GPU compatibility needs verification.
- Fan size is inconsistent across the listing (12cm/120mm and 140mm both mentioned).
- ATX standard compliance (ATX 3.0/3.1, 12VHPWR or 12V-2x6) is not specified, which matters for newer GPUs.
- Protection features are mentioned but not itemized (OCP/OVP/OTP/OPP/UVP/SCP not specified).
The Thermaltake Toughpower GF1 850W is a mid-range, fully modular ATX power supply aimed at mainstream enthusiast builds that want solid efficiency and a quieter idle profile. It is a sensible fit for single-GPU gaming PCs and creator workstations where stable power delivery and tidy cabling matter more than chasing niche features.
The defining behavior here is its Smart Zero Fan mode, where the fan stays off until the PSU reaches a certain load percentage, which is a common approach to reduce idle and desktop noise. With 850W available and a single +12V rail using a DC-to-DC design, this class of unit is typically used for higher-draw CPUs and GPUs without feeling constrained by power headroom, assuming the included cable set matches your hardware needs.
Physically, the unit is listed at 150mm (W) x 86mm (H) x 140mm (D), and that shorter 140mm depth can simplify routing in cases where the PSU area is tight or the shroud is crowded with cables. Cooling is described as fluid dynamic bearing, but the fan size is inconsistent in the listing (12cm/120mm is stated in the specs, while 140mm is mentioned in the features).
The main trade-offs are around missing details that experienced builders often check first. The listing does not specify the exact connector mix (CPU EPS, PCIe 8-pin, SATA, peripheral), and it also does not state whether it targets newer ATX 3.x requirements or includes 12VHPWR/12V-2x6 cabling, which can matter depending on your GPU.
Buy this if you want a compact, fully modular 850W Gold PSU with a fan-stop mode and a long listed warranty. Skip this if you need confirmed ATX 3.x support or a specific connector layout and cable type, since those details are not provided in the listing.
| Model / P/N | MODEL: TPD-850AH2FLG; P/N: PS-TPD-0850FNFAGU-P |
| Wattage | 850W (max output capacity listed as 850W) |
| Efficiency | 80 PLUS Gold (listed as meeting Gold at 115Vac input) |
| Modularity | Fully modular |
| Rail design | Single +12V rail (high amperage) with DC-to-DC design |
| PFC | Active PFC |
| Fan and noise mode | Smart Zero Fan; Cooling system listed as 12cm FDB fan; features also mention 140mm fluid bearing fan (listing discrepancy) |
| Dimensions | 150mm (W) x 86mm (H) x 140mm (D) |
| Input voltage | 100-240V |
| Input frequency | 50Hz/60Hz |
| Power Good signal | 100-150 msec |
| Hold-up time | 17 msec |
| Operating temperature | +5°C to +40°C |
| Operating humidity | 20% to 85% |
| Storage temperature | -40°C to +55°C (listed as 40°C to plus 55°C) |
| Storage humidity | 10% to 95% |
| Low-power states | Intel C6/C7 state and ErP Ready |
| Protections | Built-in industrial grade protections (types not specified) |
| Connectors | Not specified in the listing |
| ATX version / PCIe 5 power | Not specified in the listing |
| Warranty | 10-year warranty (listed) |
| Safety approvals | FCC/cTUVus |
PC and case fit: The PSU is listed at 140mm depth, which is helpful in many mid-tower layouts and tighter PSU shrouds where extra cable slack can become a problem.
CPU and GPU pairing: An 850W unit is commonly chosen for higher-end single-GPU systems, but exact suitability depends on your CPU and GPU power targets and transient behavior. Use the PSU headroom to avoid running near maximum output under sustained workloads.
Power connectors: The listing does not specify the number or type of PCIe and EPS cables, and it does not mention 12VHPWR or 12V-2x6. Before buying, confirm the included cable set matches your GPU (and any required adapters) and your motherboard CPU power inputs.
Acoustics and airflow planning: Smart Zero Fan keeps the fan off at lighter loads, which can make a desktop or low-load workstation noticeably quieter. Ensure your case has reasonable ventilation, since fan-stop designs rely more on passive heat dissipation at idle.
Power behavior and uptime: The spec sheet lists a 17 msec hold-up time and a 100-150 msec power-good signal, which are relevant for stability during brief input dips. If you use a UPS, match it to your system draw and consider a sine-wave unit for best compatibility.
Who this guide is for
This one’s for the overclocker who wants a power supply that won’t flinch when the load spikes. Maybe you’re building a compact rig and need genuine SFX dimensions. Maybe you’ve got a full ATX case but still want the transient handling and efficiency that overclocking demands. Either way, you care about clean rails, spare wattage, and modern ATX 3.1 compliance so a hungry GPU’s power spikes don’t nuke your session.
It skips the crowd that just needs a quiet office box. If you run everything at stock and never touch a voltage curve, most of these units are more than you need. Worth noting up front, too, only the Corsair SF750 here is a true SFX unit. The rest are ATX form factor. We include them because they’re strong overclocking supplies, and we’ll say clearly which is which so you don’t order the wrong size.
What to look for in a power supply for overclocking
Wattage headroom comes first. Overclocking raises draw, and transient spikes from a modern GPU can briefly double the steady-state number. A unit rated well above your calculated load, say 1000W for a high-end single-GPU rig, gives the margin that keeps voltage steady. ATX 3.1 compliance and a native 12V-2×6 connector matter too, since they’re built to absorb those spikes without tripping.
Efficiency rating tells you how much power turns to heat instead of work. 80 Plus Gold is the solid baseline, Platinum tightens it further, and Cybenetics Lambda ratings grade noise. Fully modular cabling keeps a tight case clean, which helps airflow around an overclocked chip. Look for a long warranty as well. A 10-year term, like the ASUS ROG Strix carries, signals the maker’s confidence in sustained heavy use. Single-rail designs simplify high-current delivery to one demanding component.
How we evaluated
We researched five power supplies spanning $88.99 to $217.99, reading spec sheets, efficiency certifications, and owner reports rather than running our own bench sessions. Ratings ranged from 4.0 to 4.8 stars. We weighted the specs that actually matter for overclocking, wattage margin, ATX 3.1 support, efficiency tier, and cooling behavior, above brand shine.
Value shaped the order. A unit that costs more has to earn it with real efficiency or wattage gains, not just a nicer box. We also weighed form factor honestly, since a true SFX unit and a full ATX supply fit very different builds, and calling an ATX box “SFX” would just get someone the wrong part. Where a pick is an adjacent match to the SFX brief, we say so.
We paid close attention to the details that separate a good overclocking supply from a merely adequate one: transient response, ripple behavior on the rails, and how the fan curve handles a sustained load. Owner reports and long-term reliability weighed heavily too, because a power supply is the one component whose failure can take other parts with it, and a unit that runs stable for years is worth more than one that benchmarks a hair higher out of the box. Ratings clustered high across the field, with three of the five at 4.4 stars or above, which for power supplies signals the kind of broad trust you want under an overclock. We treated the 10-year warranty on the ROG Strix as a meaningful data point, not marketing, since a maker willing to cover a decade of heavy use is telling you something about the internals.
Our top picks
Best Overall SFX: Corsair SF750 (2024)
At $159.99 with a 4.1-star rating, the Corsair SF750 is the pick that actually answers the question. It’s a genuine fully modular SFX unit, 80 Plus Platinum rated, ATX 3.1 compliant, and PCIe 5.1 ready, with a bracket included for mounting in ATX cases. 750W is plenty for a compact single-GPU overclocking rig, and the Platinum efficiency keeps heat down inside a cramped chassis where thermals are always tight.
The tradeoff is wattage ceiling. If you’re pairing a top-tier GPU with an aggressive overclock, 750W leaves less transient headroom than the 1000W units below. And SFX packaging commands a small price premium over comparable ATX supplies. But for the small-form-factor overclocker who needs real SFX dimensions plus Platinum efficiency, this is the one to buy. Nothing else here fits a Mini-ITX case the way it does.
Best Budget: Thermaltake GF1 850W
The Thermaltake GF1 runs $88.99 with a 4.0-star rating, the cheapest entry here. It’s a fully modular ATX 850W unit, 80 Plus Gold certified, with an ultra-quiet Zero RPM mode that stops the fan entirely under light load. For a first overclocking build on a tight budget, 850W and Gold efficiency cover a mid-to-high single-GPU setup without draining the wallet.
What you give up is the newest standard and the top efficiency tier. It’s Gold rather than Platinum, and it’s ATX rather than SFX, so it won’t fit a compact case and doesn’t carry the ATX 3.1 branding the pricier picks do. The 4.0 rating also trails the field. Still, for someone who wants modular cabling, quiet operation, and enough wattage for a modest overclock at under $90, the GF1 is hard to argue against.
Best Premium: ASUS ROG Strix 1000W Platinum
The ASUS ROG Strix 1000W Platinum lands at $217.99 with a strong 4.8-star rating, the top of this lineup. It’s fully modular, 80 Plus Platinum and Cybenetics Lambda A+ rated, ATX 3.1, and it uses GaN MOSFETs with a GPU-First Intelligent Voltage Stabilizer aimed squarely at keeping rails flat during GPU transients. A 10-year warranty backs it. For heavy overclocking, that combination is about as reassuring as it gets.
The catch is that it’s ATX, not SFX, and it’s the priciest unit here. Someone with a compact case can’t use it, and a modest build doesn’t need 1000W of Platinum power. But if you’re running a high-end GPU pushed hard and want the quietest, steadiest delivery with a decade of coverage, this is the premium pick. The voltage stabilizer feature is exactly what an aggressive overclock wants.
Best Value 1000W: Corsair RM1000x
The Corsair RM1000x sits at $166.24 with a 4.4-star rating. It’s a fully modular ATX 1000W supply, ATX 3.1 and PCIe 5.1 ready, Cybenetics Gold efficiency, with a native 12V-2×6 connector for modern GPUs. That native connector matters, since it skips the adapter tangle and feeds a hungry card directly, which is one less failure point during high-draw overclocking.
It’s ATX, so small-form-factor builders should look at the SF750 instead, and its Gold efficiency sits a tier below the Platinum ROG Strix. But at roughly $50 less than the premium pick for the same 1000W and the same native connector, the value math is strong. For a mainstream ATX overclocking build that wants full wattage headroom without paying top dollar, the RM1000x is the sensible middle.
Best Quiet Operator: be quiet! Pure Power 13 M 1000W
The be quiet! Pure Power 13 M 1000W comes in at $139.90 with an excellent 4.8-star rating. It’s an ATX 3.1 unit, 80 Plus Gold certified, PCIe 5.1 ready, with LLC technology, a single rail, and a semi-passive 120mm be quiet! fan that stays silent at low load. The maker explicitly rates it for overclocked GPUs, and the single-rail design simplifies high-current delivery to one demanding card.
The compromises are familiar. It’s ATX rather than SFX, and Gold rather than Platinum. So it won’t suit a compact case or squeeze out the last drop of efficiency. But at under $140 for 1000W, a 4.8 rating, and a fan tuned for near-silence, it’s the pick for the overclocker who hates noise. Quiet, cheap for its wattage, and rated for the exact abuse overclocking dishes out.
Buying mistakes to avoid
The classic error is buying exactly enough wattage for steady-state load. Overclocking adds draw, and GPU transients spike for milliseconds well above the average, so a unit sized right at your calculated number can trip its protections mid-session. Give yourself margin. Most of these 1000W picks leave plenty for a single high-end GPU pushed hard.
The other mistake is ignoring form factor. An SFX case won’t accept an ATX unit, full stop, so if you’re building compact, the Corsair SF750 is your only true fit here. Don’t chase a Platinum badge on a supply that physically won’t mount. And don’t skip ATX 3.1 and a native 12V-2×6 connector on a new build, since adapter cables add clutter and a weak point right where an overclocked GPU pulls hardest.
A third trap is buying on peak wattage alone while ignoring efficiency and noise. Two 1000W units can behave very differently under a sustained overclock, one staying cool and quiet on a Platinum-grade design, the other running hot and loud as it works harder to deliver the same power. Cheaper units also sometimes hit their rated wattage only briefly, not continuously, so read whether a supply’s number is a sustained figure. And don’t reuse an ancient power supply on a new overclocking build to save money. Older units predate ATX 3.1’s transient handling, and a decade-old supply pushed hard is exactly the kind of false economy that ends in a dead session or worse.
Bottom line
If you need a real SFX unit, the Corsair SF750 (2024) is the pick, full stop. It’s the only genuine small-form-factor supply in this group, it’s Platinum rated, and 750W handles a compact overclocking build cleanly. Buy it if your case demands SFX dimensions.
For an ATX build with room to spare, the choice widens. The ASUS ROG Strix 1000W is the premium, steadiest option, the Corsair RM1000x is the value 1000W play, and the be quiet! Pure Power 13 M wins on silence and price. Match wattage to your GPU, respect the form factor, and give your overclock the headroom it’s asking for.
Common questions
How many watts do I need for overclocking?
Calculate your steady-state load, then add generous headroom for transients. A high-end single-GPU overclocking rig is comfortable on 850W to 1000W. The 1000W units here, like the RM1000x, leave room for spikes so the supply never runs near its limit during a heavy session.
Is a true SFX unit necessary for overclocking?
Only if your case requires it. SFX matters for Mini-ITX and small-form-factor builds where an ATX supply won’t fit. The Corsair SF750 is the genuine SFX pick here. If you’ve got a standard ATX case, the larger units offer more wattage for the money.
Does 80 Plus Platinum matter over Gold for overclocking?
Platinum runs a few points more efficient, meaning less waste heat inside the case, which helps thermals around an overclocked chip. The gap is real but modest. Gold units like the be quiet! Pure Power 13 M still handle overclocking fine, so Platinum is a nice-to-have, not a must.
What is ATX 3.1 and do I need it?
ATX 3.1 is a newer standard built to absorb the large, brief power spikes modern GPUs produce. For overclocking, where those spikes grow larger, it’s genuinely useful. Every unit here except the budget Thermaltake carries ATX 3.1, and a native 12V-2×6 connector simplifies powering a current-gen card.
Will a better power supply improve my overclock?
Indirectly, yes. A supply with clean, stable rails and spare wattage lets your CPU and GPU hold a higher stable overclock without voltage sag causing crashes. It won’t raise your ceiling on its own, but a weak unit can absolutely cap what an otherwise capable chip can reach.
