You boot the machine, open Task Manager, and the number is wrong. You installed 32GB, but Windows swears you only have 16GB. Or worse, one stick shows up and the other has vanished into the void. RAM not detected is one of the most common panic-inducing problems in PC building, and the good news is that it’s almost never a dead motherboard. Most of the time it’s a seating issue, a slot mismatch, or a BIOS setting that quietly reset itself. Before you assume the worst and start shopping for replacement hardware, it pays to work through the checks in order.
We researched dozens of owner reports, vendor QVL notes, and forum threads to sort the real fixes from the folklore. This guide walks through the checks in the order a seasoned builder would run them, from the free 30-second reseat to the point where a stick is genuinely faulty and needs replacing. Each cause below is ordered by how often it’s the actual culprit, so you can stop as soon as your capacity comes back. If your trouble turns out to be an upgrade opportunity, our roundups of the best budget RAM for 2026 and the best RAM for gaming and video editing can point you toward a kit that your board actually likes.
First check the obvious (the 30-second check)
Before you touch a screwdriver, confirm what the system is really reporting. Open Task Manager, click the Performance tab, and look at the Memory panel. If it lists “16.0 GB (8.0 GB usable)” or shows less total than you installed, that’s a different problem than a stick not appearing at all. Then reboot into BIOS and find the memory readout on the main page. BIOS is the source of truth here. If BIOS sees all your capacity but Windows doesn’t, the fix lives in the operating system. If BIOS itself is short, the issue is hardware or firmware, and that’s where the deeper checks come in. Make a note of the exact number BIOS reports, because you’ll compare against it after every change you make.
One quick win people miss: in Windows, press Win+R, type msconfig, open the Boot tab, click Advanced options, and make sure “Maximum memory” is unchecked. A checked box there can cap your usable RAM at a random low number, and it sometimes gets flipped on by an old tweak or a third-party tuning tool you forgot about. It’s a five-second toggle that has rescued plenty of builders who assumed a stick had died. Restart and recheck before you go further. While you’re in there, note whether the “usable” figure is short because of integrated graphics, since an APU or iGPU can carve off 1GB to 2GB of shared memory that never shows as usable.
Cause #1: A stick that isn’t fully seated
This is the number one reason RAM goes missing, and it fools experienced builders too. DDR4 and DDR5 modules need real force to lock in. You should hear and feel a firm click on both ends, and the retention clips should snap flat against the notches on the module. A stick can look installed, sit at a slight angle, and still make zero contact. That’s the trap. Larger air coolers and thick backplates can also block a module from dropping the last millimeter, so give yourself room to press straight down.
Power down, unplug the PSU, and press the module out by opening the clips. Blow out the slot, line up the single off-center notch so the stick only fits one way, and push straight down with your thumbs over both ends until both clips close on their own. Don’t rock it in sideways. If a clip won’t close by itself, the stick isn’t seated, full stop. On a DDR4 board where a stick refuses to register even after a clean reseat, a fresh, QVL-friendly kit is a cheap sanity check. The G.SKILL RipjawsV DDR4 32GB (2x16GB) 3600MT/s kit, around $229.99 with a 4.6 rating, runs a sane CL18-22-22-42 profile at 1.35V that plays nicely with both Intel and AMD desktop boards, which makes it a reliable known-good reference when you’re isolating a fault.
Pros
- DDR4-3600 XMP at 1.35V is the Ryzen AM4 sweet spot, aligning FCLK 1:1 at 1800MHz for best latency.
- Matched 2x16GB kit is factory-tested as a pair, reducing dual-channel instability compared to mixing sticks.
- Compatible with both Intel XMP and AMD DOCP/A-XMP BIOS profiles without manual sub-timing adjustments.
- Ships with JEDEC SPD fallback so the system always boots safe at default clocks before XMP is enabled.
Cons
- CL18 primary latency is mid-range; DDR4-3600 CL16 kits exist for buyers prioritizing tighter timings.
- No ECC support, so workstation or Threadripper ECC builds need a different kit entirely.

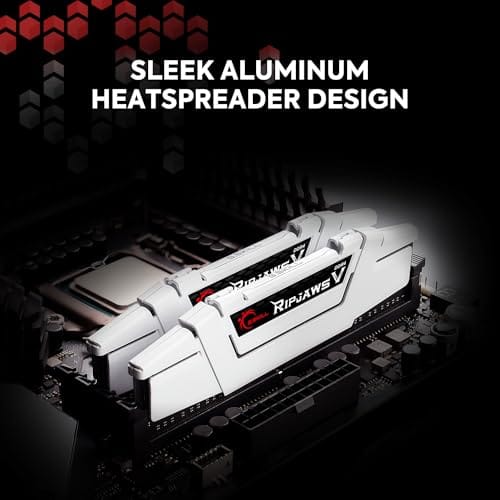

The G.SKILL RipjawsV F4-3600C18D-32GVK is a mid-range DDR4 desktop kit targeting Intel and AMD mainstream platform builders who want 32GB capacity at DDR4-3600 without overpaying for CL14 or CL16 enthusiast kits. It ships as a matched 2x16GB dual-channel pair in the standard 288-pin U-DIMM form factor.
The defining spec here is the XMP profile: DDR4-3600 at CL18-22-22-42, 1.35V. On AMD AM4 Ryzen systems, 3600MHz is the well-documented sweet spot for achieving a 1:1 FCLK ratio at 1800MHz, which keeps infinity fabric latency in check and translates to measurable gains in lightly-threaded workloads and gaming frame times compared to DDR4-3200 or lower.
CL18 is a genuine trade-off at this speed. Competing DDR4-3600 kits with CL16 or CL14 exist and offer lower absolute latency, though they typically carry a price premium. Owners report stable XMP operation across a wide range of B450, X570, and Z490/Z590 boards, but reaching rated speed on some budget AM4 boards may require manual sub-timing adjustments or AGESA microcode updates.
Buy this if you are building or upgrading an AM4 Ryzen or Intel LGA1700 desktop and want reliable 32GB DDR4-3600 dual-channel performance without tuning. Skip this if you need CL16 or tighter for competitive latency, or if your board has a limited QVL and you have not verified compatibility via G.SKILL's configurator tool first.
Platform Support: This kit uses 288-pin DDR4 U-DIMM and is compatible with Intel LGA1700 (Z690/Z790) and AMD AM4 (B450/X470/B550/X570) platforms. AM5 uses DDR5 exclusively, so this kit is not compatible with Ryzen 7000/9000 series builds on AM5 boards.
XMP and DOCP Activation: Rated speed of DDR4-3600 CL18-22-22-42 at 1.35V requires enabling XMP (Intel) or DOCP/A-XMP (AMD) in BIOS. Default JEDEC SPD boots at DDR4-2133 or DDR4-2400. On AM4, DDR4-3600 aligns FCLK at 1800MHz for a 1:1 ratio, which is the recommended operating point for Ryzen 3000 and 5000 series CPUs.
Slot Population and Mixing: Install both sticks in the recommended dual-channel slots per your motherboard manual, typically A2 and B2 in a 4-slot board. G.SKILL explicitly warns against mixing this kit with other modules; doing so voids the matched-pair guarantee and risks instability at XMP speeds.
Cooler Clearance: Exact heatspreader height is not specified in the source data, but RipjawsV modules are noted for a lower profile than Trident Z or RGB variants, reducing conflicts with wide tower coolers. Verify clearance if using a low-clearance cooler on a tight ITX board.
Cause #2: Wrong slots or a mismatched kit
Motherboards are picky about which slots you fill first. On almost every dual-channel board with four slots, a two-stick kit belongs in slots A2 and B2, not A1 and A2. The manual spells this out, and using the wrong pair can leave a stick unread or force the system into single-channel. Slots are usually labeled on the PCB in tiny print, or color-coded, though the color scheme varies by brand and isn’t a reliable guide on its own. Check the diagram in your board manual before you assume anything is broken. It’s the single most skipped step in this whole process.
Mixing kits is the other silent killer. Two 8GB sticks from different sets, even the same brand and speed, can refuse to post together because their timings or IC ranks don’t agree. Memory that was sold as a matched pair was binned to work as a pair. If you bought two separate single sticks and only one shows up, that mismatch is the likely reason, not a hardware fault. When in doubt, run one stick at a time in the primary slot to confirm each module works solo, then troubleshoot the pairing. Combining single-rank and dual-rank modules is especially fussy on DDR5, where the memory controller has to train four sub-channels and gives up if the ranks fight each other.
Cause #3: BIOS, XMP, or a firmware hiccup
Sometimes the RAM is fine and the firmware just needs a nudge. A dead CMOS battery, a failed overclock, or an aggressive XMP/EXPO profile can make a board drop a stick or refuse to train the memory. Start by clearing CMOS: power off, pull the plug, and either use the Clear CMOS jumper or remove the coin battery for two minutes. That resets memory settings to a safe default and often brings a “missing” stick right back. If your board has a memory-retry or MemOK feature, give it a few power cycles, because DDR5 boards sometimes need two or three attempts to train a fresh kit before they post cleanly. Don’t panic if the first boot after a reset takes 30 seconds or more with a blank screen, since that’s the board training memory, not failing.
If capacity returns only at stock speed, your XMP or EXPO profile is the culprit. Re-enable it, and if the system won’t post, bump the DRAM voltage a notch or loosen the primary timings. Modern kits make this easier. The Corsair Vengeance DDR5 16GB (2x8GB) kit, about $234.99 with a 4.4 rating, ships with both AMD EXPO and Intel XMP 3.0 profiles rated up to 5200MHz at CL40, so you can pick the profile that matches your platform instead of dialing timings by hand. An outdated BIOS is worth ruling out too, since newer AGESA and microcode updates fix a huge share of DDR5 detection bugs. Flash the newest stable version from your board vendor before you conclude a stick is dead.
Pros
- AMD EXPO profile activates 5200MHz CL40-40-40-77 with a single BIOS toggle on Ryzen 7000 boards.
- Low 35mm module height clears virtually any AM5 or LGA1700 tower cooler without physical conflict.
- 1.25V operating voltage sits within DDR5 spec, reducing thermal stress on integrated PMIC under sustained load.
- Aluminum heatspreader aids passive heat dissipation in open-air cases without requiring active cooling.
Cons
- 16GB total capacity is increasingly marginal for content creation workflows and modern open-world titles running texture packs.
- 5200MHz CL40 offers modest latency compared to DDR5-6000 CL30 kits that hit the Ryzen 7000 FCLK 1:1 ratio sweet spot.
The CORSAIR Vengeance DDR5 16GB 2x8GB is a mid-range DDR5 kit targeting AMD Ryzen 7000 series and Intel 12th-generation-or-newer desktop builds. It ships with both AMD EXPO and Intel XMP 3.0 profiles, making it broadly compatible across AM5 and LGA1700 or LGA1851 platforms without manual timing configuration.
The standout feature is dual-profile support at a frequency that loads with a single BIOS toggle. At 5200MHz CL40-40-40-77 and 1.25V, it sits within DDR5 JEDEC specification territory, and onboard voltage regulation on the module itself reduces dependency on motherboard power delivery for the memory rail, which matters on budget AM5 boards with fewer VRM phases dedicated to DRAM.
The honest trade-off at this tier is frequency positioning. Ryzen 7000 performs best at DDR5-6000 with CL30 timings, where FCLK and memory controller run at a clean 1:1 ratio. This kit at 5200MHz places it below that threshold, meaning buyers on AM5 leave some CPU bandwidth on the table. The 16GB total capacity is also worth scrutinizing for any workload beyond gaming or light productivity.
Buy this if you are building a budget-to-mid AM5 or Intel DDR5 system and need reliable plug-and-play EXPO or XMP activation without manual overclocking. Skip this if your platform is AM5 and you plan to run a Ryzen 7000 CPU near its performance ceiling, where DDR5-6000 CL30 kits deliver measurably better throughput and latency at comparable pricing.
Platform Requirements: DDR5 requires AMD 600-series or newer motherboards paired with Ryzen 7000 series or newer CPUs, or Intel 600-series or 700-series boards with 12th-generation Core or newer. DDR5 is not backward compatible with DDR4 slots. Verify your motherboard QVL lists this kit before purchasing.
EXPO and XMP Activation: The rated 5200MHz speed requires enabling AMD EXPO or Intel XMP 3.0 in BIOS. Without activation, the kit defaults to DDR5-4800 JEDEC. On Ryzen 7000, DDR5-6000 is the accepted 1:1 FCLK sweet spot; this kit at 5200MHz runs below that threshold, which carries a small but measurable bandwidth and latency penalty versus a tuned DDR5-6000 kit.
Physical Clearance: Module height is 35mm, which clears nearly all air coolers without conflict. The 1.25V operating voltage and onboard PMIC mean power comes from the module itself rather than solely from the motherboard, reducing stress on budget boards with lighter DRAM power stages.
Capacity and Channel Config: The 2x8GB configuration fills two slots in dual-channel. CORSAIR explicitly advises against mixing kits, so expansion to 32GB requires replacing both modules with a validated 2x16GB kit rather than adding a second 2x8GB pair.
Preventive maintenance
A little care keeps this from recurring. Handle modules by the edges, keep the gold contacts clean, and if a stick has been in a dusty rig for years, a gentle wipe of the contacts with 99% isopropyl alcohol and a lint-free cloth can restore a flaky connection. Reseat your RAM after any big move or transport, because shipping vibration loosens modules more often than people expect. And once you land on a stable XMP/EXPO profile, note the exact voltage and timings somewhere, so a future CMOS reset doesn’t send you back to square one. It also helps to keep your BIOS current on a slow cadence, since a firmware update every year or so quietly patches the memory training that causes most detection headaches.
When it’s not fixable: what to replace
If a single stick fails in the primary slot on a board you’ve already cleared CMOS on, and a known-good stick works in that same slot, the module itself is done. RAM failures are rare but real, and a stick that throws errors in a memory diagnostic or refuses to appear across multiple slots isn’t coming back. Windows Memory Diagnostic, built into the OS and reachable by typing mdsched into the Start menu, will run a scan on the next reboot and flag a failing module. Replacement is the move once you’ve confirmed the fault, and matching your platform matters more than chasing headline speed.
For a DDR4 system, a proven matched kit like the G.SKILL RipjawsV 32GB pair keeps you in dual-channel and dodges the mismatch problem entirely. For a newer DDR5 build, the Corsair Vengeance kit’s dual-profile support smooths out the detection headaches that plague early DDR5 boards. If you’re pairing memory with a specific high-end chip, our guide to the best DDR5 RAM for the Ryzen 9800X3D covers kits that clear QVL on the boards those CPUs run on. Buy a matched set, check the QVL, and you sidestep most of what sent you to this page.
Tools and parts needed
You need almost nothing. A Phillips screwdriver to open the case, an anti-static wrist strap if you have one, and a can of compressed air for the slots. That’s it. For the diagnostic side, the built-in Windows Memory Diagnostic confirms whether a stick is truly bad without any download, and a bootable memory checker on a USB drive gives you a deeper scan if you want one. Keep your motherboard manual handy for the correct slot order. A spare known-good stick is the single most useful troubleshooting part you can own, because swapping one variable at a time is how you find the fault fast. Borrow one from a friend’s rig if you don’t have a spare on the shelf.
A few more questions
Why does Windows show less RAM than I installed?
The usual causes are a “Maximum memory” cap in msconfig, integrated graphics reserving a chunk, or a stick that BIOS sees but isn’t fully seated. Check BIOS first. If BIOS shows the full amount and Windows doesn’t, it’s a software setting, not hardware. Uncheck the msconfig boot limit, reboot, and the full figure should return.
Can a single bad RAM stick stop the whole PC from booting?
Yes. A failed module can prevent post entirely, usually with a memory error beep code or a lit DRAM debug LED on the board. Pull all sticks, then add them back one at a time in the primary slot. The stick that kills the boot on its own is the faulty one, and it’s worth confirming with a full memory diagnostic pass before you buy a replacement.
Does enabling XMP or EXPO cause RAM to disappear?
It can. If a profile pushes speed or timings your board or CPU can’t train, the system may drop a stick or fail to post, then reset to a lower capacity or speed. Clear CMOS, boot at stock, then re-enable the profile. If it still won’t hold, a small DRAM voltage bump or a BIOS update usually settles it.
